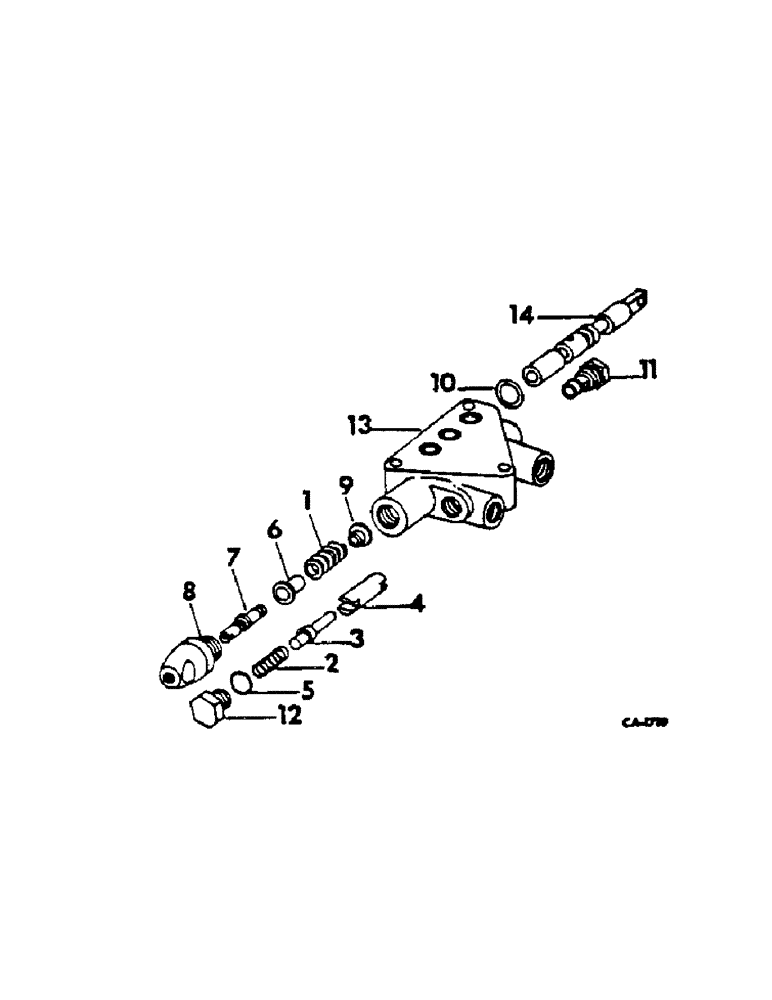

Запчасти Case IH 615 (10-30[1]) - HYDRAULICS, AUTOMATIC PLATFORM LIFT VALVE SECTION (07) - HYDRAULICS

159376C91

VALVE

ASSY, section, includes ref nos. 1 thru 14

1шт.

1

588353R1

SPRING

spool centering

1шт.

2

159382C1

SPRING

lockout

1шт.

3

159380C91

VALVE

POPPET ASSY

1шт.

4

159379C1

PLUNGER

lockout

1шт.

5

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

6

937195R1

SPRING WASHER

spool centering

1шт.

7

937197R1

SCREW,1/4" - 20 x 2-5/16"

spool centering

1шт.

8

937198R91

CAP

ASSY

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

1шт.

9

937194R1

SPRING WASHER

spool centering

1шт.

10

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32

1шт.

11

173827C91

VALVE

PLUG ASSY, check

1шт.

12

159801C1

PLUG

hex.

1шт.

13

BODY, not serviced separately order valve section assy 159376C91

1шт.

14

SPOOL, not serviced separately order valve section assy 159376C91

1шт.

KIT ASSY, repair, refer to 173824C91 major repair kit listed under control valve

1шт.
