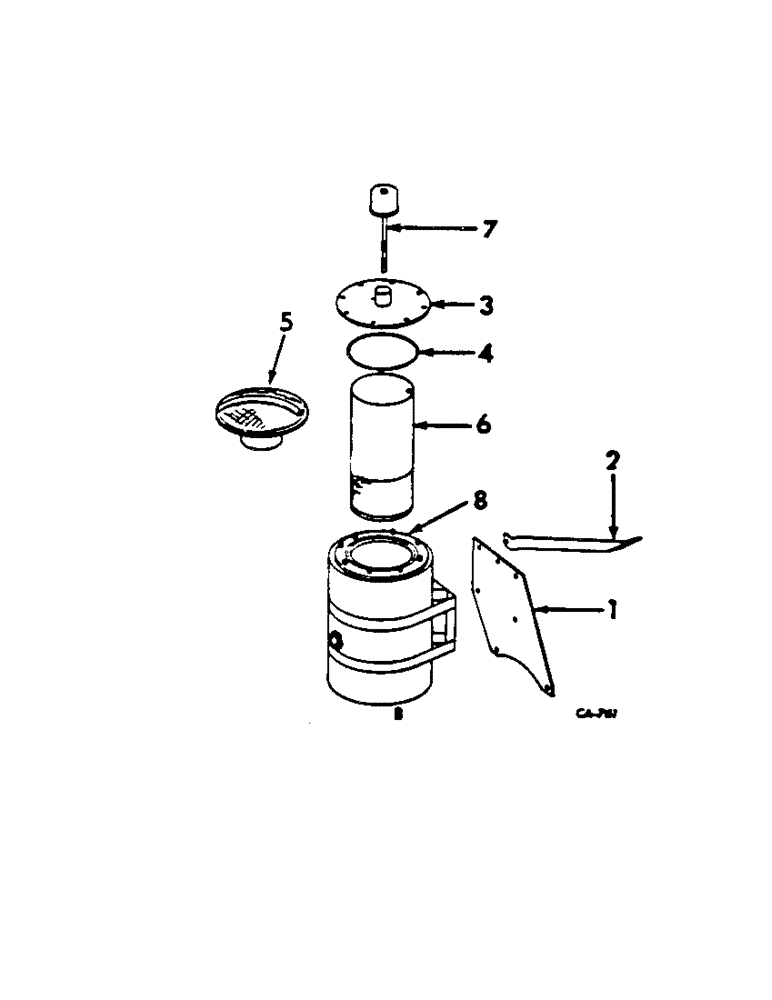

Запчасти Case IH 615 (10-26[1]) - HYDRAULICS, HYDRAULIC RESERVOIR, BELT DRIVE (07) - HYDRAULICS

156395C91

RESERVOIR

ASSY, hydraulic oil, includes ref. nos. 3 thru 8

1шт.

1

628433R2

SUPPORT, reservoir

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

2

631935R1

BRACE, reservoir, gasoline engine

1шт.

2

155581C1

BRACE, reservoir, diesel engine, serial number 12000 and below

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 ZND hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

163646C91

COVER

ASSY

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

4

22760R1

O-RING,6.725" ID x 7.275" OD x 0.275"

seal

1шт.

5

386121R92

VALVE

ASSY

1шт.

6

386120R91

FILTER CARTRIDGE

CARTRIDGE ASSY, filter

1шт.

7

567521R91

CAP

BREATHER CAP AND DIPSTICK

1шт.

8

BODY, reservoir, order 156395C91 reservoir assy

1шт.
