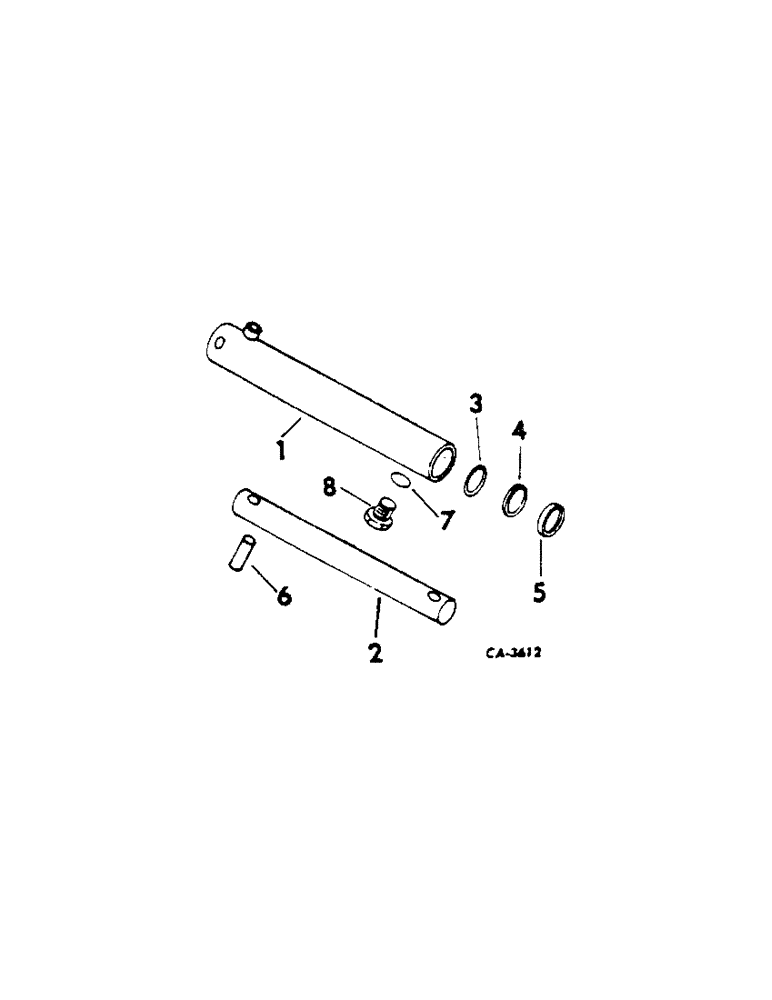

Запчасти Case IH 615 (10-23[1]) - HYDRAULICS, HYDRAULIC REEL LIFT CYLINDER, SLAVE CYL (07) - HYDRAULICS

532763R91

CYLINDER

ASSY, slave

1шт.

1

532765R1

BODY

ASSY, hydraulic cylinder

1шт.

2

532771R1

ROD

piston

1шт.

3

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 x 1-1/4 x 1/8

1шт.

4

532772R1

WASHER, back-up

1шт.

5

532773R1

WIPER SEAL

WIPER, rod

1шт.

6

532774R1

PIN

stop

1шт.

7

533145R1

RUBBER WASHER,5.59mm ID x 10.72mm OD x 1.37mm Thk

rubber bonded

1шт.

8

24535R1

SCREW

10-24 x 1/4 hex-hd

1шт.

532531R91

PACKAGE, REPAIR

KIT, hydraulic cylinder service

1шт.
