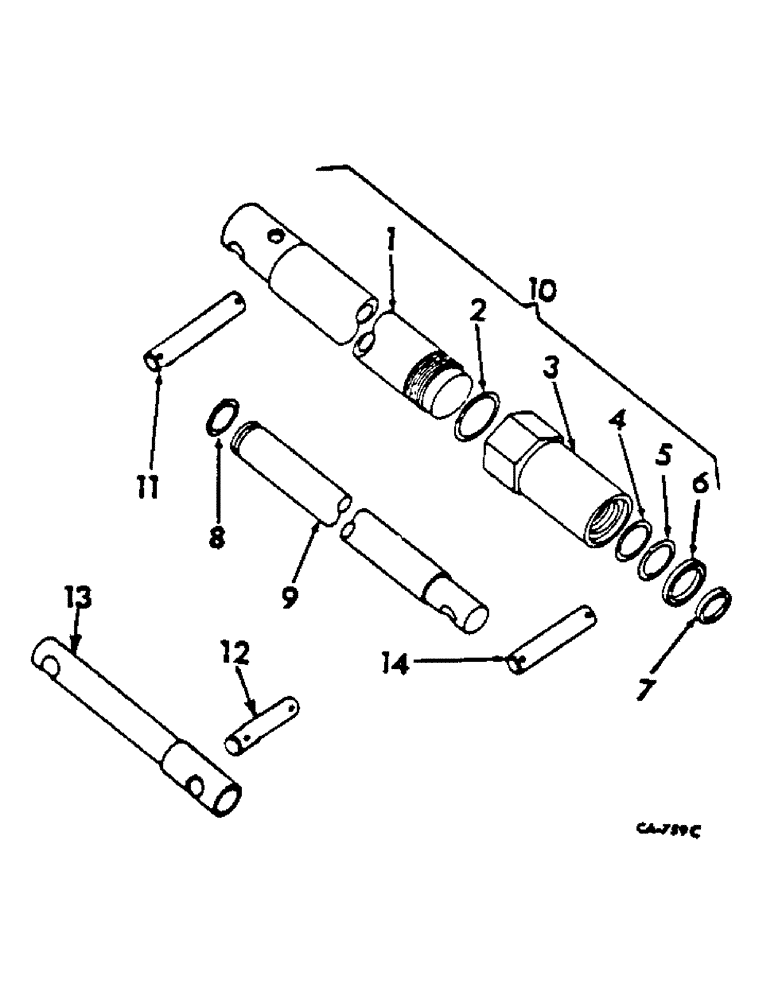

Запчасти Case IH 615 (10-21) - HYDRAULICS, PLATFORM HYDRAULIC LIFT CYLINDER AND EXTENSION, SER. NO. 8000 AND BELOW (07) - HYDRAULICS

1

383764R11

TUBE ASSY, cylinder, for use w/cylinder 383759R92 17.62" Length

1шт.

1

383765R11

TUBE ASSY, cylinder, for use w/cylinder 383760R92 20.62" Length

1шт.

1

383775R11

TUBE ASSY, cylinder, for use w/cylinder 383762R92 17.87" Length

1шт.

2

21056R1

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

2-1/8 x 2-3/8 x 1/8, for use w/cylinders 383759R92 and 383760R92

1шт.

2

366581R1

O-RING,2.612" ID x 0.103" Width

2-5/8 x 2-13/16 x 3/32, for use w/cylinder 383762R92

1шт.

3

383769R11

HEAD ASSY, rod end, for use w/cylinders 383759R92 and 383760R92

1шт.

3

383778R11

HEAD

ASSY, rod end, for use w/cylinder 383762R92

1шт.

4

378735R1

O-RING,1.475" ID x 0.21" Width

1-1/2 x 1-7/8 x 3/16, for use w/cylinders 383759R92 and 383760R92

1шт.

4

464048R1

O-RING,0.21" Thk x 1.975" ID, -329, Cl 6, 90 Duro

2 x 2-3/8 x 3/16, for use w/cylinder 383762R92 and 59736C91

1шт.

5

403622R1

BACK-UP RING

WASHER, piston rod back-up, for use w/cylinders 383759R92 and 383760R92

1шт.

5

378726R1

BACK-UP RING

piston rod back-up, for use w/cylinder 383762R92

1шт.

6

383770R1

WASHER

SEAL, piston rod dust, for use w/cylinders 383759R92 and 383760R92

1шт.

7

383771R1

SEALING WASHER

RETAINER, piston rod dust seal, for use w/cylinders 383759R92 and 383760R92

1шт.

8

376821R1

RING, SNAP

STOP RING, piston rod, for use w/cylinders 383759R92 and 383760R92

1шт.

8

378752R1

RING, PISTON

STOP RING, piston rod, for use w/cylinder 383762R91

1шт.

9

383772R2

ROD, piston, for use w/cylinder 383759R92

1шт.

9

383773R2

ROD, piston, for use w/cylinder 383760R92

1шт.

9

383780R2

ROD, piston, for use w/cylinder 383762R92

1шт.

10

383760R92

CYLINDER ASSY, platform hydraulic lift, single acting 1-1/2 in. bore x 18 in. stroke, 26-3/4 close length, PSI 1,500, for use w/ 18.4-26 main wheel tires not 3 row corn head or feeder hitch

1шт.

10

383762R92

CYLINDER ASSY, platform hydraulic lift, serial no. 8000 and below, single acting 2 in. bore x 15-1/2 in. stroke, 23-3/4 close length, PSI 1,500, for 3 row corn head when feeder hitch is not used, included w/feeder hitch

1шт.

10

383759R92

CYLINDER ASSY, platform hydraulic lift, serial no. 8000 and below, single acting 1-1/2 in. bore x 15 in. stroke, 23-3/4 in. close length, PSI 1,500, main wheel tires when feeder hitch is not used, not for use w/3 row corn head

1шт.

11

571181R1

PIN, header lift cylinder rear

2шт.

137258

COTTER PIN

3/16" x 1 3/4"

4шт.

12

(Not used in this application)

1шт.

13

(Not used in this application)

1шт.

14

571181R1

PIN, header lift cylinder front

2шт.

386691R91

PISTON RING SET

PACKAGE, cylinder overhaul cylinder, for 383759R92 and 383760R92 cylinder, consists of (1) o-ring 378735R1, (1) washer 403622R1, (1) 373770R1, (1) retainer 383771R1, (1) o-ring 21056R1

1шт.

386692R91

SEAL KIT

PACKAGE, cylinder overhaul, for use w/cylinders 383762R92, consists of (1) o-ring 464048R1, (1) washer 378726R1, (1) seal 383783R1, (1) retainer 383779R1, (1) o-ring 366581R1

1шт.
