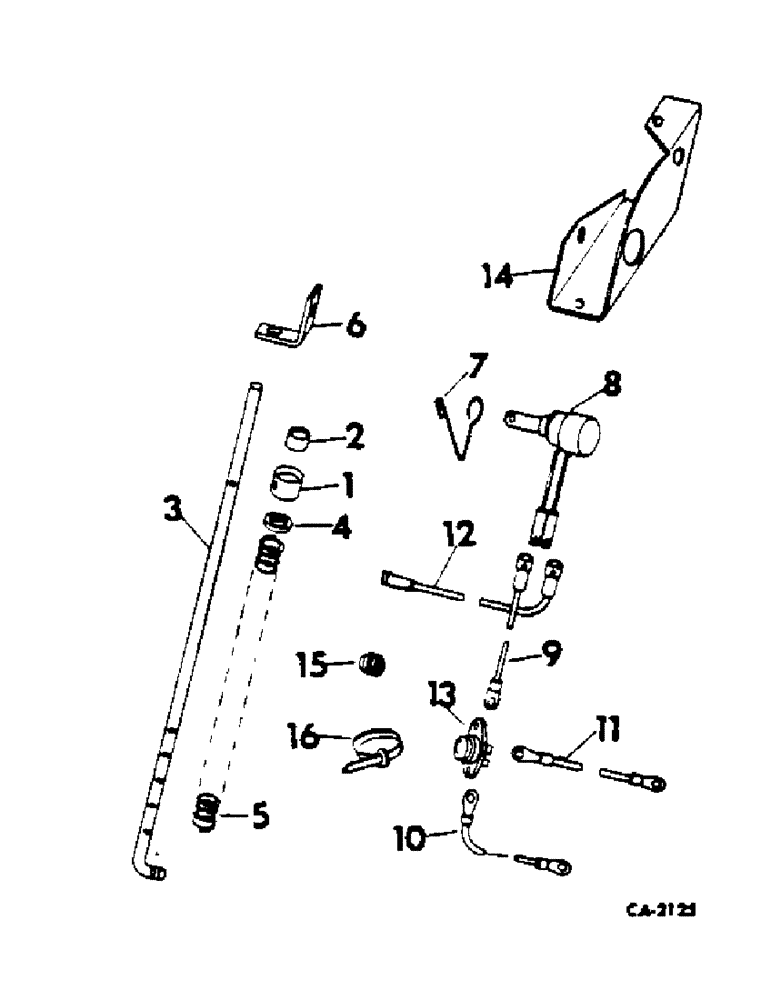

Запчасти Case IH 615 (10-15) - HYDRAULICS, REVERSE DRIVE LOCKOUT (07) - HYDRAULICS

1

175002C91

SLIDE W/BUSHING, feeder switch, includes reference no. 2

1шт.

436746

SCREW

10-32 x 1/4 znd slt-pan-hd

1шт.

121801

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

2

175003C1

BUSHING

1шт.

3

175015C1

ROD, feeder switch

1шт.

586591R1

COTTER PIN

PIN, 1/8 QA

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

4

631833R1

WASHER, feeder switch rod fiber

1шт.

5

612871R1

SPRING

feeder switch rod

1шт.

6

179209C1

ANGLE, reverse lockout switch

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

1шт.

20893R1

WASHER

.344 x 1 x .105

1шт.

7

175013C1

SPRING

solenoid extension

1шт.

8

175014C1

SOLENOID ASSY, lockout

1шт.

20117R1

PIN, 1/8 x 1/2 C-Z slt spring

1шт.

9

175005C1

WIRE ASSY, solenoid to push button, belt drive

1шт.

9

175004C1

WIRE ASSY, solenoid to push button, hydrostatic drive, serial number 12000 and below

1шт.

10

175006C1

WIRE ASSY, feeder switch to push button

1шт.

11

175008C1

CABLE ASSY.

WIRE ASSY, push button, Serial Range: switch-ground

1шт.

12

175009C1

WIRE ASSY, power to solenoid, belt drive

1шт.

12

175010C1

WIRE ASSY, power to solenoid, for hydrostatic drive, serial number 12000 and below

1шт.

13

366317R93

SWITCH

ASSY, push button

1шт.

13

366317R93GV

CONTROL

Value, Control Switch

1шт.

120611

NUT,#10 - 32

no. 10-32 znd sq

2шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

10-32 x 1/2 znd slt-pan-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

21742R1

WASHER

1-1/32 x 1-1/2 x 22 ga C-Z

2шт.

14

151908C2

COVER, hydrostatic speed lever, serial number 12000 and below

1шт.

15

109390

GROMMET,5/16" ID x 23/32" x .062", Diag Cut

5/16 rubber

3шт.

16

702093C1

CABLE TIE

STRAP, wire tie

4шт.
