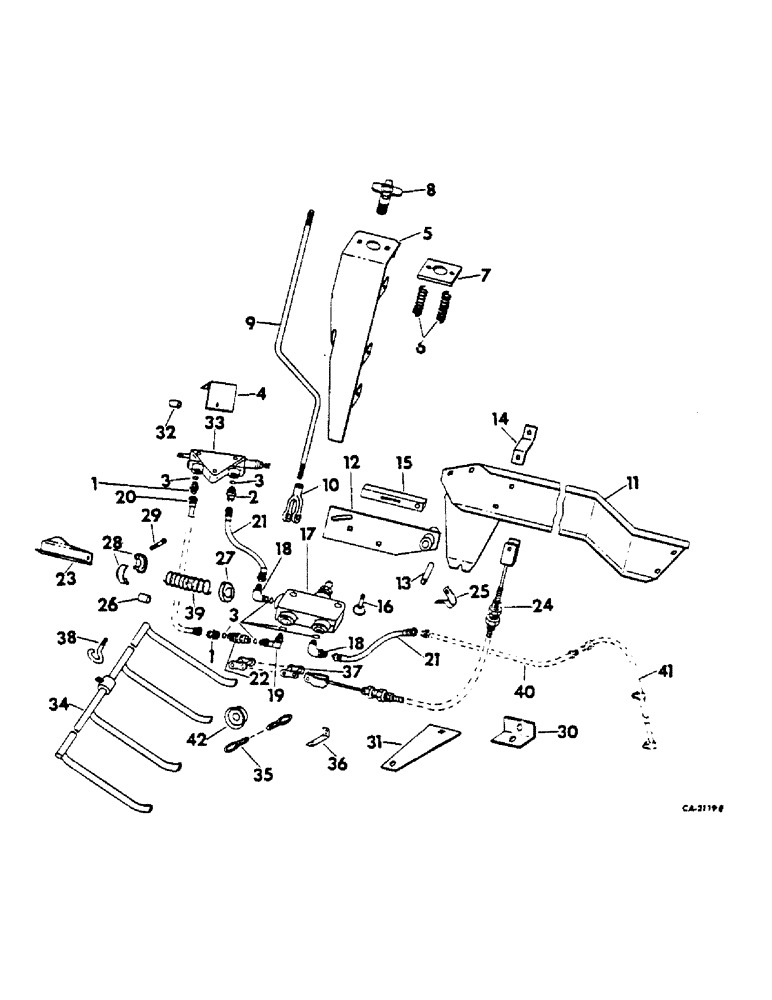

Запчасти Case IH 615 (10-13) - HYDRAULICS, AUTOMATIC HEADER CONTROL, SERIAL NO. 8001 AND ABOVE (07) - HYDRAULICS

1

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 37 deg hyd flared tube

2шт.

2

574478R1

UNION

CONNECTOR, platform lift

1шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

7шт.

4

171917C1

SUPPORT, hyd control valve left

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 znd hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

5

174221C1

COVER ASSY, instrument panel front

1шт.

18478R1

BOLT, 5/16 x 4-1/4 znd sq-nk crg

2шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16-18 nylon inset lock

2шт.

20893R1

WASHER

11/32 x 1 x 11 ga C-Z

2шт.

6

78A

BOLT

SPRING, screw base

2шт.

7

174213C1

BAR, screw base

1шт.

8

174249C1

KNOB, height control cable

1шт.

9

174218C1

ROD, valve control

1шт.

120369

NUT,3/8"-24, G5

1шт.

10

144243

CLEVIS

3/8-24 C-Z adj rod end

1шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 C-Z rod end

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

11

178840C1

SUPPORT ASSY, operator deck RH & valve

1шт.

12

178043C2

PIVOT ASSY, valve

1шт.

20344R1

BOLT

5/16 x 3-1/4 hex-hd

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd whiz lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

13

877467C1

SPACER, valve pivot tube

1шт.

14

178842C1

SUPPORT, valve pivot

1шт.

15

174244C1

BAR

platform control valve

1шт.

16

174230C1

PIN

platform control valve bar

1шт.

17

VALVE ASSY, header automatic control, refer to automatic flow control valve for unit listing

1шт.

18677R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 2 1/2", Gr 2

BOLT, 5/16 x 2-1/2 znd sq-nk crg

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

18

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg hyd flared tube

2шт.

19

174212C1

ELBOW, valve to pressure hose

1шт.

20

167957H1

HOSE ASSY.

HOSE ASSY, auto platform control pressure, 24 in.

1шт.

21

574230R91

HOSE ASSY.

HOSE ASSY, auto platform control, 29 in.

2шт.

22

174276C1

FITTING

COUPLING, auto platform control pressure

1шт.

23

175735C1

SPACER, spring stop

2шт.

24

174239C1

CABLE

height control

1шт.

25

2994107C1

CLAMP, height control cable

1шт.

26

179192C1

PIPE, helper spring stop

2шт.

21719R1

WASHER

2.031 x 2.75 x .105

1шт.

27

9.6778R2

FLANGE, header lift helper spring front

2шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

4шт.

23340R1

WASHER

1-17/32 x 3 x 7 ga

4шт.

28

936779R3

FLANGE, header lift helper spring rear

4шт.

29

173932C1

BOLT,Spcl, 1/2" - 13 x 3 1/2"

helper spring flange

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

30

179281C1

ANGLE, cable support

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

31

179282C1

BRACKET

cable support

1шт.

32

607706R1

SPACER,3/8" Pipe x 1 5/8"

3/8 x 1-5/8 std pipe

2шт.

33

159376C91

VALVE

ASSY, control

1шт.

34

178823C1

BAR ASSY.

BAR ASSY, finger, for 10 ft and 13 ft

1шт.

34

178825C1

BAR ASSY.

BAR ASSY, finger, for 15 ft

1шт.

35

167570C1

CHAIN,203.2mm L

finger stop

2шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 znd hex-hd mach

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z slt-truss-hd

1шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

2шт.

36

179435C1

ANGLE

chain anchor

2шт.

37

174266C1

CHAIN (AG)

CHAIN, finger pivot

1шт.

38

157780C1

EYEBOLT, finger bar

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

39

936760R2

SPRING, header lift cylinder helper, for 10 ft w/chain driven feeder

2шт.

39

159710C1

SPRING

header lift cylinder helper, for 10 ft w/belt driven feeder, for 13 ft w/chain driven feeder

2шт.

39

174211C1

SPRING, header lift cylinder helper, for 13 ft w/belt driven feeder for 15 ft

2шт.

40

TUBE, header lift cylinder upper, refer to hydraulic diagram this group for unit listing

1шт.

41

TUBE, header lift cylinder lower, refer to hydraulic diagram this group for unit listing

1шт.

42

482635R2

ROLLER

header control chain idler, for floating cutter bar

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga

1шт.

22042R1

WASHER

17/32 x 2 x 11 ga

1шт.
