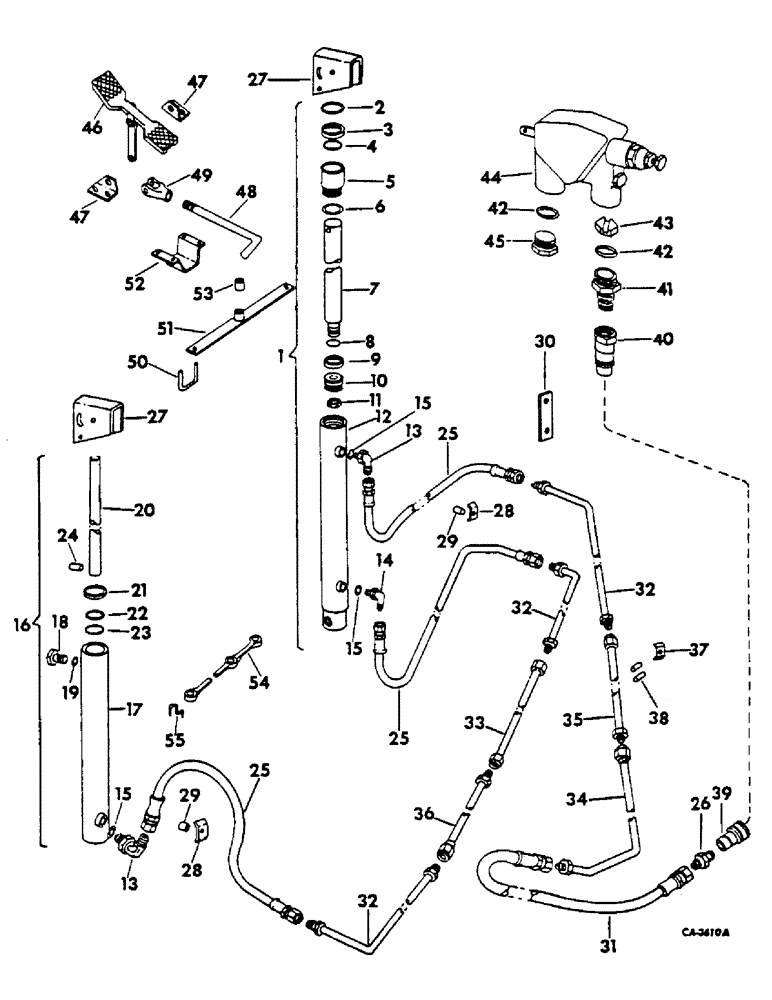

Запчасти Case IH 615 (10-11) - HYDRAULICS, HYDRAULIC REEL LIFT, HYDROSTATIC DRIVE, SERIAL NO. 8001 THRU 12000 (07) - HYDRAULICS

1

CYLINDER ASSY, master, Cessna, order 547358R91 cylinder

1шт.

1

547358R91

CYLINDER

ASSY, master, IHC

1шт.

547388R91

PACKAGE, REPAIR

KIT, hydraulic cylinder, for 547358R91 master cylinder

1шт.

2

547386R1

SEAL

WIPER, rod, for 547358R91 cylinder

1шт.

3

547385R1

WASHER

back-up, for 547358R91 cylinder

1шт.

4

343905R1

O-RING,1.109" ID x 0.139" Width

for 547358R91 cylinder

1шт.

5

547384R1

CYLINDER HEAD

HEAD, front, for 547358R91 cylinder

1шт.

6

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

for 547358R91 cylinder

1шт.

7

547332C1

ROD, piston, for 547358R91 cylinder

1шт.

8

378031R1

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

for 547358R91 cylinder

1шт.

9

547383R1

SEAL

piston, for 547358R91 cylinder

1шт.

10

547333R1

PISTON

for 547358R91 cylinder

1шт.

11

548033R1

JAM NUT

NUT, for 547358R91 cylinder

1шт.

12

547328R1

NO LONGER SERVICED

BODY ASSY, hydraulic cylinder, for 547358R91 cylinder

1шт.

13

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube

2шт.

14

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared 45 deg

1шт.

15

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

3шт.

16

CYLINDER ASSY, hydraulic slave, Cessna, order 532763C91 cylinder

1шт.

16

532763R91

CYLINDER

ASSY, hydraulic slave, IHC

1шт.

17

532765C1

BODY ASSY, for 532763R91 cylinder

1шт.

18

24535R1

SCREW

no. 10-24 x 1/2 znd hex-hd mach

1шт.

19

533145R1

RUBBER WASHER,5.59mm ID x 10.72mm OD x 1.37mm Thk

rubber bonded, for 532763R91 cylinder

1шт.

20

532771R1

ROD

piston, for 532763R91 cylinder

1шт.

21

532773R1

WIPER SEAL

WIPER, rod, for 532763R91 cylinder

1шт.

22

532854R1

SEAL,25.17mm ID x 31.52mm OD x 1.32mm Thk

back-up, for 532763R91 cylinder

1шт.

23

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

for 532763R91 cylinder

1шт.

24

532774R1

PIN

stop, for 532763R91 IHC slave

1шт.

25

336081R91

HOSE

ASSY, reel lift

3шт.

26

9402708

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF

CONNECTOR, 1/4-18 37 deg hyd flared

1шт.

27

176728C1

CLEVIS

W/NUT, reel lift arm

2шт.

667486R1

BOLT

BOLT, 1/2 x 3-1/2 hex-hd

2шт.

102637

NUT,1/2"-13, G5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2 x 2-3/4 hex-hd

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120396

WASHER

.53 x 1.06 x .10

4шт.

28

178816C1

CLIP

hose

4шт.

29

61851V

SPACER,1/4" Pipe x 3/4"

Std. pipe 1/4" Pipe x 3/4"

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

30

178815C1

STRAP

hose support RH

1шт.

31

179202C1

HOSE,7.94mm ID x 1727.2mm L, SAE 100R1

header to combine, 68 in.

1шт.

32

178812C1

HYD TUBE

TUBE ASSY, outer end

3шт.

33

178811C1

HYD TUBE

TUBE ASSY, master to slave cly center

1шт.

34

178813C1

HYD TUBE,.375" OD, 35, 1.25" Length

TUBE ASSY, pressure to master cyl ctr

1шт.

35

178817C1

TUBE,0.375" OD, 18" Length

ASSY, spacer, 18 in., for 13 ft w/cutting equip

1шт.

35

162377C91

TUBE,30" Length

ASSY, spacer, 30 in., 1 for 15 ft

1шт.

36

172015C1

TUBE

ASSY, spacer, 36 in, for 13 ft w/cutting equip

1шт.

36

178819C1

TUBE

ASSY, spacer, 60 in., 1 for 15 ft

1шт.

37

165602C1

CLAMP

hyd tube

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

164191C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1 1/2"

5/16 x 1-1/2 slt-truss-hd

1шт.

38

163490C1

RUBBER INSULATOR

CUSHION, tube clamp

1шт.

39

166122C91

COUPLING

ASSY, self sealing female

1шт.

40

166123C91

COUPLING

ASSY, self-sealing male

1шт.

41

179213C1

ADAPTER

CONNECTOR

1шт.

42

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

2шт.

43

164787C1

ORIFICE

1шт.

44

VALVE ASSY, reel lift section, refer to control valve propulsion or reel lift valve section, automatic header lift valve section for unit listing

1шт.

45

9410359

PLUG

3/4-16 C-Z o-ring boss

1шт.

46

631486R1

PEDAL, lift control

1шт.

47

574471R1

BRACKET, control pedal

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

23455R1

PIN, 7/16 x 2-7/8 C-Z std-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

1шт.

48

938295R1

ROD, front control

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

49

144243

CLEVIS

3/8-24 C-Z adj rod end

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

1шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 C-Z rod end

1шт.

50

633673R1

ROD, rear control

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

51

627425R91

STRAP ASSY, control pivot

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga C-Z

1шт.

52

627429R1

SUPPORT, control pivot strap

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

53

574464R1

BUSHING, control pivot strap

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 znd hex-md mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga C-Z

1шт.

54

179206C1

STRAP

hose retainer

1шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 x 1-1/4 hex-hd

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21801R1

WASHER

.281 x .750 x .056

1шт.

55

179207C1

HOOK

rubber strap

1шт.
