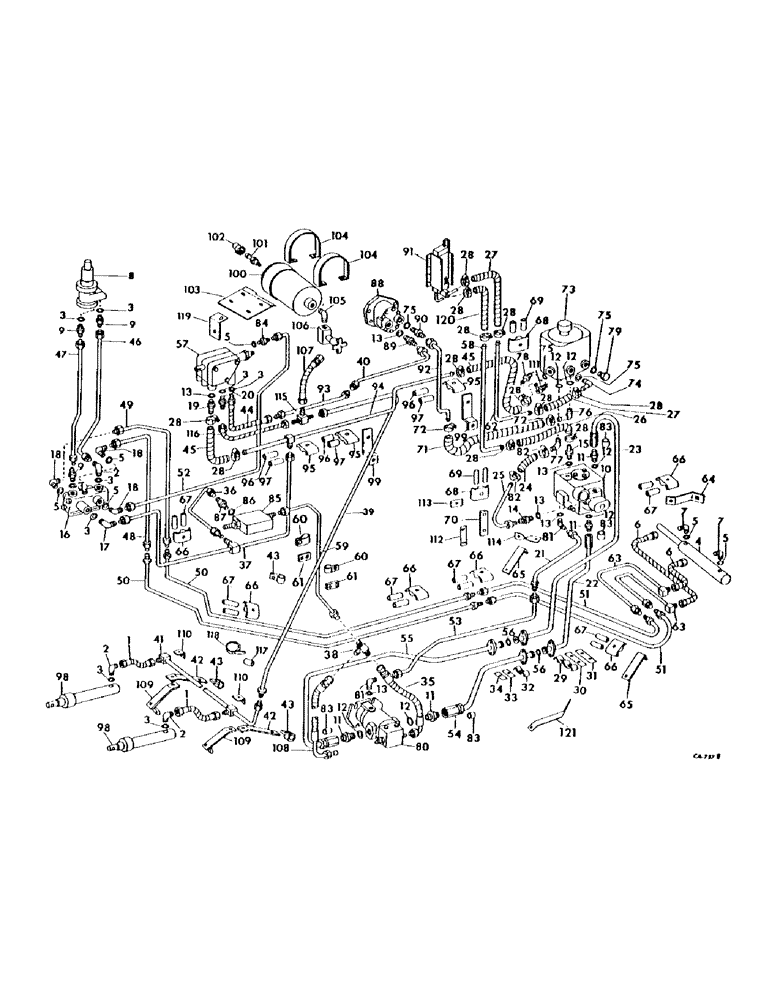

Запчасти Case IH 615 (10-05) - HYDRAULICS, HYDRAULIC DIAGRAM, FOR HYDROSTATIC DRIVE, SERIAL NO. 12000 AND BELOW (07) - HYDRAULICS

1

587582R91

HOSE ASSY.

HOSE ASSY, platform lift cylinder 29 in.

2шт.

2

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg hyd flared tube 90 deg

9шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 O.D. tube

1шт.

4

CYLINDER ASSY, steering, refer to steering cylinder this unit for listing

1шт.

5

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

6шт.

6

155309C91

HYDRAULIC HOSE,0.31" ID x 20.00", SAE 100R1

0.31" ID x 20.00", Steering Cylinder, 1 for Adjustble Axle, 3 for Fixed Axle

2шт.

6

632454R91

HYDRAULIC HOSE,0.31" ID x 30.00", SAE 100R1 Class B

HOSE ASSY, steering cylinder, 30 in., for adj axle

1шт.

7

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube 90 deg

2шт.

8

PUMP ASSY, steering hand, refer to steering hand pump this unit for listing

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg hyd flared tube

3шт.

10

PUMP ASSY, ground drive, refer to hydraulic ground drive pump this unit for listing

1шт.

11

163915C1

FITTING

CONNECTOR, 1-5/16-12 37 deg hyd flared

6шт.

12

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 inch O.D. tube

6шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

6шт.

14

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg hyd flared tube

1шт.

15

171916C1

FITTING, Serial Range: pump-cooler

1шт.

16

VALVE ASSY, steering, refer to steering valve this unit for listing

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

935036R91

ELBOW

1шт.

18

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube

3шт.

19

171916C1

FITTING, control valve

1шт.

20

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, control valve

1шт.

21

172474C1

TUBE ASSY, ground drive motor to ground drive pump upper bleeder

1шт.

22

171942C1

TUBE ASSY, ground drive forward pressure upper

1шт.

23

171944C1

TUBE ASSY, ground drive rearward pressure upper

1шт.

24

171355C1

HOSE ASSY, reservoir to ground drive pump

1шт.

25

171356C1

TUBE ASSY, ground drive pump to oil reservoir

1шт.

26

162458C1

PIPE CLAMP

HOSE, ground drive pump to oil cooler outlet, 15. in.

1шт.

27

173016C1

HOSE, oil, Serial Range: cooler-reservoir

2шт.

28

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP

12шт.

29

150778C1

CLAMP, hydraulic pipe upper

1шт.

30

157780C1

STRAP, hydraulic tube clamp thin

1шт.

31

150779C1

TUBE

STRIP, hydraulic tube clamp thick

1шт.

32

157678C1

CLAMP

hydraulic pipe

2шт.

33

157783C1

STRAP, hydraulic pipe cushion

1шт.

34

157679C1

SEAL, hydraulic pipe cushion

1шт.

35

175760C1

HOSE ASSY.

HOSE, foot-n-inch valve lower rear

1шт.

36

164408C91

TUBE ASSY, foot-n-inch valve return

1шт.

37

171357C1

TUBE ASSY, steering valve return

1шт.

38

9402979

TEE,7/16"-20, 37 Degree

7/16-20 37 deg hydraulic flare tube C-Z, not for use w/ accumulator

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

4шт.

39

172716C1

TUBE ASSY, platform lift cylinder upper, not for use w/ accumulator, serial no. 2580 and below

1шт.

39

172137C1

TUBE ASSY, platform lift cylinder upper, for use w/accumulator, serial no. 2581 and above

1шт.

39

174227C1

TUBE ASSY, platform lift cylinder upper, serial no. 2581 and above

1шт.

40

171941C1

TUBE ASSY, platform lift valve rear pressure

1шт.

41

631848R11

TUBE ASSY, platform lift cylinder upper, serial no. 8000 and below 1" OD, 31.38, 4.87" Length

1шт.

41

179212C1

TUBE ASSY, platform lift cylinder lower, serial no. 8001 and above

1шт.

42

(Not used in this application)

1шт.

43

587501R2

CLAMP

CLIP

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 x 1-1/4

3шт.

44

628437R91

HOSE

ASSY, front pressure 18 in.

1шт.

45

171939C1

HOSE ASSY.

HOSE, platform lift return upper and lower

2шт.

46

939252R11

TUBE ASSY, hand pump to valve right

1шт.

47

939254R11

TUBE ASSY, hand pump to valve left

1шт.

48

654585R11

TUBE ASSY, steering valve to cyl front upper 1.375" OD, 39.75, 4.81" Length

1шт.

49

654584R11

TUBE ASSY, steering valve to cyl front lower 1.375" OD, 41.06, 5.24" Length

1шт.

50

171361C1

TUBE ASSY, steering valve to cyl front middle, serial no. 8000 and below

2шт.

50

179210C1

TUBE ASSY, steering valve to cylinder front middle, serial no. 8001 and above

2шт.

51

173877C1

TUBE ASSY, steering valve to cylinder rear middle

2шт.

52

171363C1

TUBE, Serial Range: pump-valve

1шт.

53

172476C1

TUBE ASSY, ground drive motor, serial no. 8000 and below

1шт.

53

175327C1

TUBE ASSY, ground drive motor to ground, serial no. 8001 and above

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

54

171943C1

TUBE ASSY, ground drive forward pressure lower, serial no. 3290 and below

1шт.

54

175325C91

TUBE ASSY, ground drive forward pressure lower, includes ref. no. 83, serial no 3291 and above

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

55

171945C1

TUBE ASSY, ground drive rearward pressure lower, serial no. 3290 and below

1шт.

55

175326C91

TUBE ASSY, ground drive rearward pressure lower, serial no. 3291 and above

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

56

343906R1

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1-5/16 x 1-9/16 x 1/8

2шт.

57

VALVE ASSY, control, refer to control valve, propulsion or reel lift valve section, automatic platform lift valve section and platform lift valve section this group for unit listing

1шт.

58

171364C1

TUBE ASSY, ground drive pump to oil cooler

1шт.

59

172475C1

TUBE ASSY, foot-n-inch upper, serial no. 3290 and below

1шт.

59

175761C1

TUBE ASSY, foot-n-inch valve, serial no. 3291 and above

1шт.

60

573674R1

CLIP

1/4 hyd tube

3шт.

61

634109R1

STRIP, hyd tube clip

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

3шт.

62

173017C1

TUBE, Serial Range: cooler-reservoir

1шт.

63

171559C1

TUBE, rear steering

2шт.

64

172956C1

BRACKET, rear steering tube support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 C-Z hex-hd lock

1шт.

65

171934C1

ANGLE, steering tube support

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

1шт.

66

165602C1

CLAMP

3/8 hyd tube

5шт.

18674R1

BOLT,Short NK, 5/16"-18 x 1 1/2", G2

5/16 x 1-1/2 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

5шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 C-Z slt-truss-hd

4шт.

67

163490C1

RUBBER INSULATOR

STRIP, 3/8 hyd tube rubber

10шт.

68

165601C1

CLAMP

5/8 tube

2шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-3/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

69

163492C1

RUBBER INSULATOR

STRIP, 5/8 tube rubber

4шт.

70

172473C1

STRAP, cooler tube support

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

71

171355C1

HOSE, suction

1шт.

72

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

SWITCH MOUNTING, suction hose

2шт.

73

RESERVOIR ASSY, hydraulic oil, refer to hydraulic reservoir for hydrostatic drive this unit for listing

1шт.

74

387006R91

ELBOW

cooler return

1шт.

75

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

4шт.

76

171948C1

ELBOW

FITTING, platform lift suction

1шт.

77

171948C1

ELBOW

FITTING, charge pump suction

1шт.

78

(Not used in this application)

1шт.

79

9410361

PLUG

1-1/16-12 o-ring boss

1шт.

80

MOTOR ASSY, ground drive, refer to ground drive motor this unit for listing

1шт.

81

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg flare tube

2шт.

82

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

CLAMP, suction hose

4шт.

83

165722C1

SLEEVE

hydrostatic tube rubber

4шт.

84

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd flared tube short swivel

1шт.

85

VALVE ASSY, foot-n-inch valve this unit for listing

1шт.

87

164419C1

CONNECTOR, 3/8 tube 5/16 port

1шт.

88

PUMP ASSY, hydraulic lift, not for hydraulic reel drive, refer to hydraulic lift pump this unit for listing

1шт.

88

PUMP ASSY, hydraulic lift, for hydraulic reel drive, refer to hydraulic reel drive this unit for listing

1шт.

89

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 1/2 in. tube

1шт.

90

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4 in. tube

1шт.

91

COOLER ASSY, hydrostatic oil, refer to group 6 under oil cooler

1шт.

92

171940C1

TUBE ASSY, pump suction

1шт.

93

171558C1

TUBE ASSY, platform lift front pressure, grain tank

1шт.

94

171557C1

TUBE ASSY, platform lift return, grain tank

1шт.

95

165601C1

CLAMP

5/8 tube, grain tank

3шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 znd hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

96

163492C1

RUBBER INSULATOR

STRIP, 5/8 tube rubber, grain tank

3шт.

97

163491C1

RUBBER INSULATOR

STRIP, 1/2 in. tube rubber

3шт.

86

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.

98

CYLINDER ASSY, platform hydraulic lift, single acting 1.5 in bore x 18 in stroke

2шт.

98

CYLINDER ASSY, platform hydraulic lift, single acting 2 in bore x 15.5 in stroke

2шт.

98

CYILNDER ASSY, platform hydraulic lift, single acting 1.5 in bore x 15 in stroke, refer to platform hydraulic lift

2шт.

99

171946C1

SUPPORT, pressure and return tubes cylinder and extension this unit for listing, grain tank

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

1шт.

100

172129C91

ACCUMULATOR ASSY

1шт.

101

172130C91

VALVE

ASSY, accumulator tank

1шт.

102

172131C1

GUARD

accumulator tank valve

1шт.

103

172132C1

BRACKET, accumulator, serial no. 8000 and below

1шт.

103

175699C1

BRACKET, accumulator, serial no. 8001 and above

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z whiz lock

2шт.

104

172133C1

SUPPORT

STRAP, accumulator mounting

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

105

172134C1

ELBOW

, Serial Range: accumulator-valve

1шт.

106

172135C1

VALVE, accumulator line shut-off

1шт.

107

173589C1

HOSE ASSY, accumulator 21 in., serial no. 8000 and below

1шт.

107

172136C1

HOSE ASSY, accumulator 20 in., serial no. 8001 and above

1шт.

108

175760C1

HOSE ASSY.

HOSE ASSY, foot-n-inch lower front

1шт.

109

173143C1

SUPPORT ASSY.

SUPPORT ASSY, hose guide

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd

2шт.

475954R1

NUT

3/8 C-Z whiz lock

2шт.

110

583799R1

ANCHOR, platform lift lower tube clip

1шт.

111

171949C1

ELBOW

return fitting

1шт.

112

173141C1

STRAP, clamp cushion

2шт.

113

573186R1

PLATE

STRIP, hydraulic pipe clamp backing

1шт.

114

172574C1

BRACKET, hydraulic drive to bleed support

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1 znd hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

115

9410334

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8-14, 37 deg hyd flared 90 deg tube swivel, serial no. 2581 and above

1шт.

116

381170R91

HOSE

ASSY, platform lift upper pressure

1шт.

117

163491C1

RUBBER INSULATOR

STRIP, hydraulic tube clamp 1/2 tube

1шт.

118

702093C1

CABLE TIE

STRAP, tie

1шт.

119

174874C1

ANGLE, accumulator support, serial no. 8000 and below

1шт.

119

175699C1

BRACKET, accumulator, serial no. 8001 and above

1шт.

120

171939C1

HOSE ASSY.

HOSE, oil cooler inlet 18 inches

1шт.

121

175766C1

BRACKET, hydraulic tube support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

2шт.
