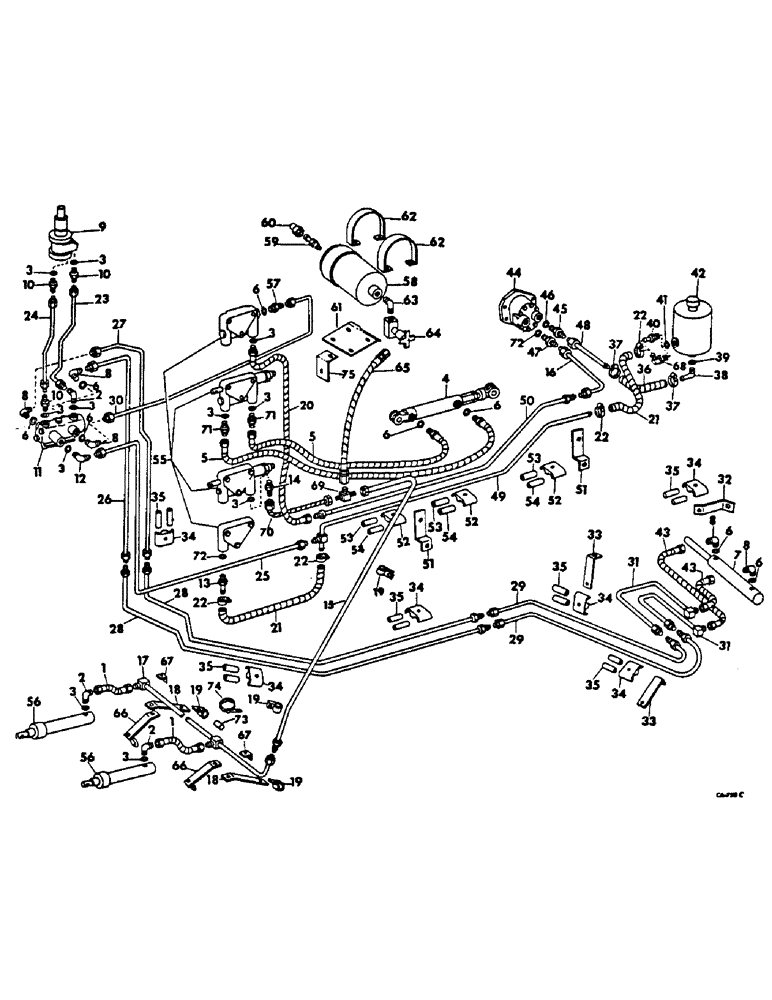

Запчасти Case IH 615 (10-02) - HYDRAULICS, HYDRAULIC DIAGRAM, BELT DRIVE (07) - HYDRAULICS

1

587582R91

HOSE ASSY.

HOSE ASSY, platform lift cyll, 29 in.

2шт.

2

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg hyd flared tube 90 deg

3шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 O.D. tube

1шт.

4

CYLINDER ASSY, propulsion control, refer to propulsion control cylinder this unit for listing

1шт.

5

939480R91

HOSE

ASSY, propulsion control cylinder 20 in.

2шт.

6

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

7шт.

7

CYLINDER ASSY, steering, refer to steering cyinder this unit for listing

1шт.

8

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube 90 deg

5шт.

9

PUMP ASSY, steering hand, refer to steering hand pump this unit for listing

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg hyd flared tube

3шт.

11

VALVE ASSY, steering, refer to steering valve this unit for listing

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

12

935036R91

ELBOW

1шт.

13

171916C1

FITTING, control valve

1шт.

14

574478R1

UNION

CONNECTOR, control valve

1шт.

15

172716C1

TUBE ASSY, platform lift cylinder upper, not for use w/ accumulator, serial no. 2580 and below

1шт.

15

172137C1

TUBE ASSY, platform lift cylinder upper, for use w/accumulator, serial no. 2580 and below

1шт.

15

174227C1

TUBE ASSY, platform lift cylinder upper serial no. 2581 and above

1шт.

16

171941C1

TUBE ASSY, platform lift valve rear pressure

1шт.

17

631848R11

TUBE ASSY, platform lift cylinder lower, serial no. 8000 and below 1" OD, 31.38, 4.87" Length

1шт.

17

179212C1

TUBE ASSY, platform lift cylinder lower serial no. 8001 and above

1шт.

18

(Not used in this application)

1шт.

19

587501R2

CLAMP

CLIP

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-pan-hd whiz lock

3шт.

20

628437R91

HOSE

ASSY, front pressure, 18. in.

1шт.

21

171939C1

HOSE ASSY.

HOSE, PLTF and lower lift return

2шт.

22

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, return and cooler hose

4шт.

23

939252R11

TUBE ASSY, hand pump to valve right

1шт.

24

939254R11

TUBE ASSY, hand pump to valve left

1шт.

25

171360C1

TUBE ASSY, steering valve return

1шт.

26

654585R11

TUBE ASSY, steering valve to cylinder front upper 1.375" OD, 39.75, 4.81" Length

1шт.

27

654584R11

TUBE ASSY, steering valve to cylinder front lower 1.375" OD, 41.06, 5.24" Length

1шт.

29

171361C1

TUBE ASSY, steering valve to cylinder front middle, serial no. 8000 and below

2шт.

30

171363C1

TUBE ASSY, steering, Serial Range: pump-valve

1шт.

31

171559C1

TUBE, rear steering

2шт.

32

172956C1

BRACKET, rear steering tube support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 C-Z hex-hd lock

1шт.

33

171934C1

ANGLE, steering tube support

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

632227C1

SCREW, 5/16 x 3/4 C-Z slt-truss-hd

1шт.

34

165602C1

CLAMP

3/8 hyd tube

5шт.

18674R1

BOLT,Short NK, 5/16"-18 x 1 1/2", G2

5/16 x 1-1/2 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

5шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 C-Z slt-truss-hd whiz lock

4шт.

35

163490C1

RUBBER INSULATOR

STRIP, 3/8 hyd tube rubber

10шт.

36

171355C1

HOSE, suction

1шт.

37

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

SWITCH MOUNTING, suction hose

3шт.

38

171948C1

ELBOW

FITTING, platform lift suction

1шт.

39

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 in. tube

1шт.

40

(Not used in this application)

1шт.

41

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 O.D. tube

1шт.

42

RESERVOIR ASSY, hydraulic oil refer to hydraulic reservoir, belt drive this unit for listing

1шт.

43

155309C91

HYDRAULIC HOSE,0.31" ID x 20.00", SAE 100R1

0.31" ID x 20.00", Steering Cylinder, 1 for Adjustble Axle, 3 for Fixed Axle

1шт.

43

632454R91

HYDRAULIC HOSE,0.31" ID x 30.00", SAE 100R1 Class B

HOSE ASSY, steering cylinder, 30 in. for adj axle

1шт.

44

PUMP ASSY, hydraulic lift, refer to hydraulic lift pump this unit for listing

1шт.

313756R1

BOLT (SPREADER),Pan, M8 x 18mm

BOLT, hydraulic pump mounting

2шт.

565832R1

WASHER

hydraulic pump mounting bolt

2шт.

45

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4 tube

1шт.

46

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 x 1-1/16 x 7/64

1шт.

47

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, pump pressure

1шт.

48

171940C1

TUBE ASSY, pump section

1шт.

49

171557C1

TUBE ASSY, platform lift return, grain tank

1шт.

50

171558C1

TUBE ASSY, platform lift front pressure, grain tank

1шт.

51

171946C1

SUPPORT, pressure and return tubes, grain tank

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

1шт.

52

165601C1

CLAMP

5/8 tube, grain tank

3шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 C-Z hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

53

163492C1

RUBBER INSULATOR

STRIP, 5/8 tube rubber, grain tank

3шт.

54

163491C1

RUBBER INSULATOR

STRIP, 1/2 tube rubber, grain tank

3шт.

55

VALVE SECTION ASSY, refer to control valve, propulsion or reel lift valve section, automatic platform lift valve section and platform lift valve section for unit listing

1шт.

56

CYLINDER ASSY, platform hydraulic lift, single acting 1.5 in bore x 18 in stroke

2шт.

56

CYLINDER ASSY, platform hydraulic lift, single acting 2 in bore x 15.5 in stroke

2шт.

56

CYLINDER ASSY, platform hydraulic lift, single acting 1.5 in bore x 15 in stroke, refer to platform hydraulic lift cylinder and extension this unit for listing

2шт.

57

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd flared tube short swivel

1шт.

58

172129C91

ACCUMULATOR ASSY

1шт.

59

172130C91

VALVE

ASSY, accumulator tank

1шт.

60

172131C1

GUARD

accumulator tank valve

1шт.

61

172132C1

BRACKET, accumulator, serial no. 8000 and below

1шт.

61

175699C1

BRACKET, accumulator, serial no. 8001 and above

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z whiz lock

2шт.

62

172133C1

SUPPORT

STRAP, accumulator mounting

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

63

172134C1

ELBOW

, Serial Range: accumulator-valve

1шт.

64

172135C1

VALVE, accumulator line shut-off

1шт.

65

172136C1

HOSE ASSY, accumulator 20 in.

1шт.

66

173143C1

SUPPORT ASSY.

SUPPORT ASSY, hose guide

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 whiz lock

2шт.

67

583799R1

ANCHOR, platform lift lower tube

1шт.

68

171949C1

ELBOW

return fitting

1шт.

69

9410334

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8-14, 37 deg hyd flared 90 deg tube swivel

1шт.

70

381170R91

HOSE

ASSY, platform lift upper pressure

1шт.

71

629349R1

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

UNION, 1/2 x 1/4, 37 deg hyd flared tube

2шт.

72

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

2шт.

73

163491R1

STRIP, hydraulic tube clamp 1/2 in. tube

1шт.

74

702093C1

CABLE TIE

STRAP, tie

1шт.

75

174874C1

ANGLE, accumulator support, serial number 8000 and below

1шт.
