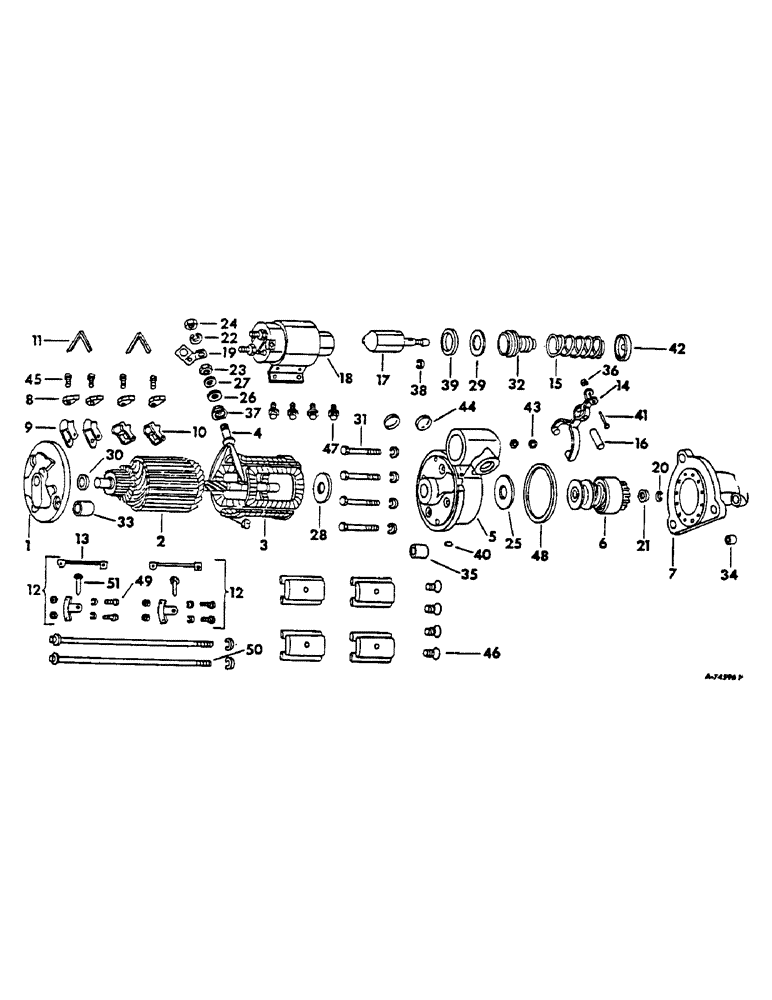

Запчасти Case IH 615 (08-26) - ELECTRICAL, CRANKING MOTOR, DIESEL ENGINES, SERIAL NO. 8000 AND BELOW (06) - ELECTRICAL

1113193

MOTOR HOUSING

MOTOR ASSY, cranking, 548124R91, 12 volt

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

120369

NUT,3/8"-24, G5

3шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, 3/8-16 x 1-1/8 C-Z hex-hd cap

3шт.

528113R1

SPACER, cranking motor

1шт.

57715D

STUD, cranking motor mrg

3шт.

120381

WASHER

3/8 C-Z light lock

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

1

1945617

HOLDER

FRAME, w/bushing, 1872678 plug, 810819 and wick 1916439, commutator end

1шт.

2

1967042

SPOOL

ARMATURE

1шт.

3

1945350

COIL

ASSY, field, 4 coils

1шт.

1914873

INSULATOR

INSULATION, field coil

2шт.

4

1933879

TERMINAL CONNECTOR

terminal

1шт.

5

1942241

HOUSING

lever, composed of (1) bushing 1933999, (2) plug 9411375, (1) plug 9419572, (1) wick 1947350

1шт.

6

1941157

MOTOR HOUSING

MOTOR ASSY, drive

1шт.

7

1947803

HOUSING

W/BUSHING, 1943628 plug, 125947 & wick, 1916439, drive

1шт.

8

1906987

BRUSH

4шт.

9

1940477

HOLDER

brush ground

2шт.

10

1950546

HOLDER

brush insulated

2шт.

11

1945620

SPRING

brush

2шт.

12

1945923

PACKAGE

brush support

2шт.

13

1930694

CABLE

LEAD, ground

1шт.

14

1942245

LEVER

shift

1шт.

15

1942260

SPRING

lever

1шт.

16

1942255

STUD

SHAFT, lever

1шт.

809593

PIN

drive housing dowel lock

1шт.

17

1942250

PLUNGER

1шт.

18

1115510

SOLENOID SWITCH

SWITCH ASSY, solenoid

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

19

1942249

CONNECTOR, ELEC

CONNECTOR, switch

1шт.

20

1928022

SNAP RING

RING, pinion stop retainer

1шт.

21

1928021

COLLAR

pinion stop

1шт.

22

(Not used in this application)

1шт.

23

805258

NUT

terminal stud, 5/32 in. thick

1шт.

24

(Not used in this application)

1шт.

25

R15043

WASHER

brake

1шт.

26

1950029

WASHER

insulating terminal stud

1шт.

27

(Not used in this application)

1шт.

28

NLS

NO LONGER SERVICED

WASHER, space

1шт.

29

1942259

WASHER

retainer spring

1шт.

30

1914642

WASHER, commutator end space

1шт.

31

122077

PLUG

drive housing attaching

4шт.

32

1942257

BOOT

plunger

1шт.

33

1872678

BUSHING

commutator end

1шт.

34

1955994

BUSHING

drive end

1шт.

35

1933999

BUSHING

lever housing

1шт.

36

1936376

RING, lever attaching pin snap

1шт.

37

1931783

INSULATOR

BUSHING, insulating terminal stud

1шт.

38

9415235

RING, SNAP

RING, spring retainer snap

1шт.

39

1942256

RETAINER

spring 1-13/64 in. hole

1шт.

40

1947350

WICK

lever housing

1шт.

41

1942253

PIN

lever attaching

1шт.

42

1942282

PIN

RETAINER, spring, 13/32 in. hole

1шт.

43

(Not used in this application)

1шт.

44

9411375

PLUG

1-3/16 diameter lever housing

2шт.

45

1959514

SCREW

brush attaching

4шт.

46

1913100

SCREW

pole shoe

4шт.

47

(Not used in this application)

1шт.

48

(Not used in this application)

1шт.

49

(Not used in this application)

1шт.

50

1883865

BOLT

commutator end thru

2шт.

51

(Not used in this application)

1шт.
