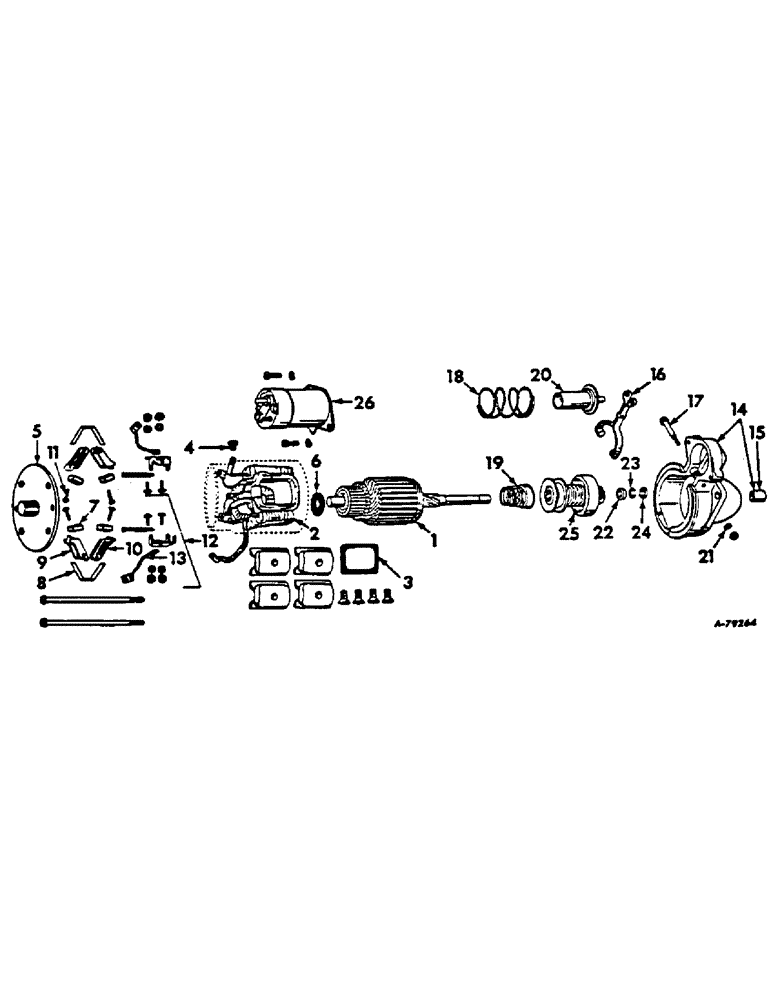

Запчасти Case IH 615 (08-25) - ELECTRICAL, CRANKING MOTOR, DELCO REMY, CARBURETED ENGINES (06) - ELECTRICAL
№
Артикул
Название
Примечание
Количество
1
1107679
SPARE PART MOTOR ASSY, cranking, 165477R91, 12 volt
1шт.
104193A1R
REMAN-STARTER
Remanufactured Starter
1шт.
104193A1C
CORE-STARTER
Return Number
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
SCREW, 1/2-13 x 1-1/4 znd hex-hd cap
2шт.
120384
WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
1
1932185
SPARE PART ARMATURE ASSY
1шт.
2
1935128
COIL
COIL ASSY, field, 3 coils
1шт.
2
1935131
COIL
COIL, field-shunt
1шт.
3
1927853
FOAM INSULATION
INSULATION, field coil
4шт.
4
1966391
GROMMET
GROMMET, in field frame
1шт.
5
1926966
COVER
FRAME, commutator end
1шт.
6
818265
WASHER
WASHER, commutator end brake
1шт.
7
1906945
COMMUTATOR BRUSH
BRUSH
4шт.
8
1926622
VALVE SPRING
SPRING, brush
2шт.
9
1940477
HOLDER
PACKAGE, ground brush holder
2шт.
10
1926618
HOLDER
HOLDER, brush insulated
2шт.
11
1967474
SCREW, insulated brush attaching
2шт.
11
443527
SCREW, ground brush attaching
2шт.
12
1928015
BRACKET
PACKAGE, brush holder support
2шт.
13
1926605
ELECTRICAL WIRE
WIRE LEAD, brush ground
2шт.
14
1955325
SPARE PART HOUSING ASSY, drive end
1шт.
1952427
GASKET
GASKET, between housing and solenoid
1шт.
15
1923907
BUSHING
BUSHING, drive end housing
1шт.
16
1951567
LEVER
LEVER, shift
1шт.
17
1814529
STUD, shift lever
1шт.
18
1958679
SPRING
SPRING, plunger return
1шт.
19
1932209
SEAL
SPRING, shift lever assist
1шт.
20
1941113
PLUNGER
PLUNGER, solenoid switch
1шт.
21
1953479
WASHER, shift lever stud sealing lock
1шт.
22
1927849
COLLAR
COLLAR, pinion stop drive end
1шт.
24
1927850
COLLAR ASSY.
COLLAR, drive end spacing
1шт.
25
1937975
DRIVE
DRIVE ASSY, motor
1шт.
26
65478C1
SWITCH
SWITCH ASSY, solenoid
1шт.
120622
NUT,#8-32
NUT, #8-32
1шт.
124829
JAM NUT,Hex, 3/8" - 16, Gr 5
NUT, Jam, 3/8"-16, G5
1шт.
121841
LOCK WASHER,#8
WASHER, LOCK, #8
1шт.
120381
WASHER
WASHER, 3/8 znd light lock
1шт.
Выбрано товаров: 38
