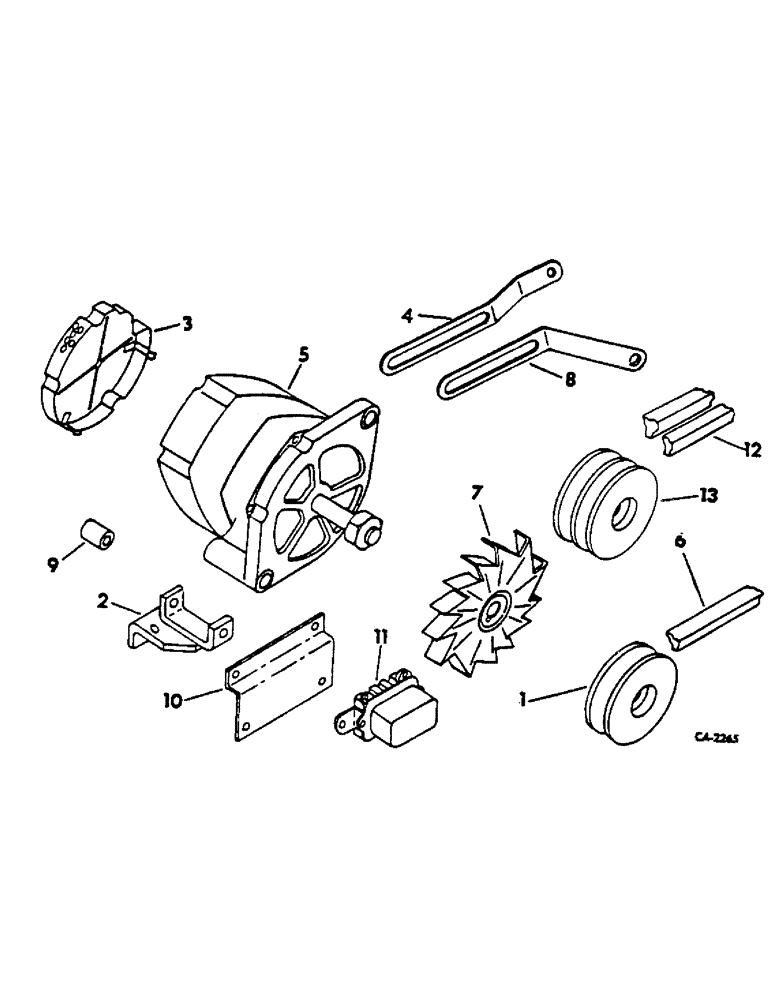

Запчасти Case IH 615 (08-24) - ELECTRICAL, ALTERNATOR-GENERATOR, MOUNTINGS AND VOLTAGE REGULATOR (06) - ELECTRICAL

1

1961291

PULLEY

alternator-generator, belt drive gasoline and diesel engines

1шт.

2

393774R22

BRACKET

ASSY, alternator mounting, diesel engine belt drive, serial no. 8000 and below

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

SCREW, 5/16 x 1-1/8 hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

495-11053

WASHER,1/2", SAE

.531 x 1.062 x .074 flat

1шт.

3

1851153

SHIELD

COVER ASSY, alternator

1шт.

4

393775R1

BRACE, alternator-generator, belt drive diesel engine

1шт.

120376

NUT,5/16"-18, G5

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 hex-hd cap

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

SCREW, 5/16 x 1-1/8 hex-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga

1шт.

5

ALTERNATOR-GENERATOR, refer to this group for unit listing

1шт.

6

403617R1

V-BELT,0.50" W

Water pump & generator drive, belt drive, gasoline engine 0.50" W

1шт.

7

221425R1

FAN

alternator-generator

1шт.

8

384997R1

BRACE

alternator, belt drive, gasoline engine

1шт.

583956R1

BOLT, 7/16 x 2 hex-hd mach

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 hex

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

SCREW, 5/16 x 1-1/8 hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga

1шт.

9

384993R1

SPACER

alternator-generator mounting bracket long, diesel, serial no. 8000 and below, gasoline, serial no. 8001 and above

1шт.

10

533843R1

BRACKET ASSY, voltage regulator, serial no. 3290 and below

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4 x 1/2 hex-hd cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

1119513

VOLTAGE REGULATOR

REGULATOR, voltage, serial no. 3290 and below

1шт.

12

533824R91

SET OF BELTS

Water pump & generator, Matched set, Hydrostatic drive, Gasoline engine, Serial number 12000 and below

1шт.

13

969638R92

PULLEY, alternator-generator, hydrostatic drive, gasoline engine, serial number 12000 and below

1шт.
