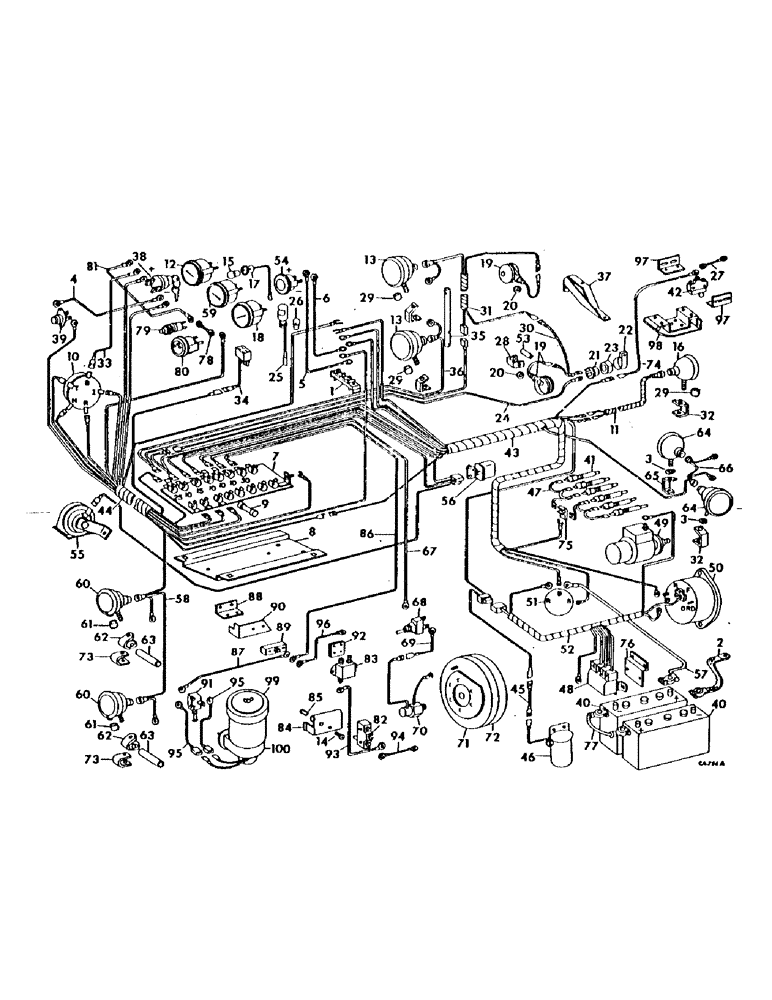

Запчасти Case IH 615 (08-12) - ELECTRICAL, WIRING DIAGRAM, DIESEL ENGINE, SERIAL NO 3290 AND BELOW (06) - ELECTRICAL

1

155219C91

BLOCK ASSY, junction

1шт.

134547R

NUT, no 12 znd square

2шт.

20709R1

SCREW, no. 12 x 3/4 slt-pan-hd

2шт.

121744

ANGLE

Washer, Lock, #12

2шт.

2

629029R92

NEG BATTERY CABLE

CABLE ASSY, battery to ground, not for diesel engine w/air conditioning

1шт.

2

936534R92

CABLE

ASSY, battery to ground, for diesel engine w/air conditioning

1шт.

180143

SCREW,Hex, 7/16" - 14 x 3/4"

7/16 x 3/4 znd hex-hd cap

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

21763R1

WASHER

15/32 x 3/4 x 11 ga C-Z

1шт.

3

936476R1

SQ HOLE WASHER

SPACER, grain tank and unloader light, night lighting

2шт.

4

172021C1

CABLE, starter button

1шт.

5

172031C1

CABLE, charge indicator front positive

1шт.

6

172032C1

CABLE, charge indicator front negative

1шт.

7

170523C2

PANEL

fuse

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

436733

BOLT

SCREW, no. 10 x 5/8 C-Z slt-pan-hd mach

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

WASHER, no 10 znd med lock

2шт.

8

172206C1

SUPPORT, fuse panel

1шт.

18426R1

BOLT, 1/4 x 1/2 znd sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

117142

FUSE,10 Amp, Type 3AG

cartridge type 10 amp

4шт.

9

455844

FUSE,25 Amp, Type 3AG

cartridge type 25 amp

1шт.

9

223-31

FUSE,10 Amp, Type 3AG

cartridge type 30 amp

1шт.

9

9426333

FUSE,15 Amp, Type 3AG

cartridge type 15 amp

1шт.

10

166380C92

SWITCH

ASSY, light

1шт.

57312D

NUT, light switch

1шт.

57313D

KNOB, light switch

1шт.

436691

SCREW, no 8 x 1/4 C-Z slt-pan-hd

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

141706

WASHER

11/16 int-tooth lock

1шт.

11

170908C1

CABLE ASSY, Serial Range: tailight-connection

1шт.

12

SPEEDOMETER ASSY, refer group 11 under instruments and gauges for unit listing

1шт.

13

HEADLIGHT ASSY, refer to lights for unit listing

2шт.

14

570028R1

BOLT, slip clutch arm switch

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

15

NLS

NO LONGER SERVICED

light no. 57

3шт.

16

TAILIGHT ASSY, refer to lights for unit listing

1шт.

17

372546R91

CABLE

SOCKET ASSY, instrument lights

3шт.

18

TACHOMETER ASSY, refer to group 11 under instrument and gauges for unit listing

1шт.

19

LIGHT ASSY, flasher, refer to lights this unit for listing

1шт.

20

394262R1

WASHER

flasher light

2шт.

21

394132R91

FLASHER UNIT

FLASHER ASSY

1шт.

22

394133R1

FASTENER

CLAMP, flasher mounting

1шт.

23

394134R1

SEAL

HOSE, flasher mounting absorber

1шт.

24

172028C1

CABLE ASSY, flasher light

1шт.

25

170907C91

SOCKET ASSY, instrument light

1шт.

26

142450

BULB,C2R, #67, 13.5V

no 67 instrument light

1шт.

27

167580C91

WIRE ASSY, micro switch ground, straw chopper

1шт.

28

561915R1

BRACKET

LH flasher and headlight

3шт.

29

49069D

SPACER

headlight and tailight

3шт.

30

172029C1

CABLE, flasher light LH

1шт.

31

172746C1

HARNESS ASSY, right headlight and flasher

1шт.

32

561915R1

BRACKET

tailight mounting

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

23060R1

LOCK WASHER,Int Tooth, 5/16"

WASHER, 5/16 znd int-tooth lock

4шт.

33

172022C1

CABLE ASSY, light switch

1шт.

34

172023C1

CABLE ASSY, instrument light

1шт.

35

172708C1

PIPE, left headlight support, not operators cab

1шт.

18657R1

BOLT,Hex, 1/4"-20 x 1-1/2", G2

1/4 x 1-1/2 znd hex-hd mach

1шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

. 5/16 x 3/4 znd hex-hd

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 znd hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

36

172035C1

CABLE ASSY, headlight LH, operators cab

1шт.

37

172156C1

SUPPORT ASSY, light bracket right

1шт.

38

164895C91

SWITCH

ASSY, ignition key type

1шт.

365502R1

NUT

13/16-20 hex

2шт.

125793

LOCK, Int Tooth, 13/16"

2шт.

39

366317R93

SWITCH

ASSY, starting

1шт.

39

366317R93GV

CONTROL

Value, Control Switch

1шт.

120611

NUT,#10 - 32

no 10-32 NF sq cdp

2шт.

436695

SCREW,Slotted Pan Hd, #8-32 x 1/2"

no. 8 x 1/2 slt-pan-hd mach

1шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

no 10-32 x 1/2 C-Z slt-pan-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

21742R1

WASHER

1-1/32 x 1-1/2 x 22 ga C-Z

2шт.

40

BATTERY 6 VOLT, refer to battery and supports this unit for listing

2шт.

41

PLUG, glow, refer to eng-5 parts catalog section 8 for unit listing

1шт.

42

574649R91

SWITCH

ASSY, micro, straw chopper

1шт.

134530

NUT,Hex, #6 - 32

2шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no 6 x 1-1/4 C-Z slt-pan hd mach

2шт.

131044

LOCK WASHER

Lock, #6

2шт.

43

172038C1

HARNESS

ASSY, main center cable

1шт.

44

172039C1

HARNESS ASSY, main front cable

1шт.

45

172024C1

CABLE ASSY, fuel pump

1шт.

46

PUMP ASSY, fuel, refer to group 12 under fuel tank, lines and pump for diesel engine for unit listing

1шт.

47

CABLE ASSY, glow plug, refer to eng-5 parts catalog section 8 for unit listing

1шт.

48

REGULATOR ASSY, voltage, refer to alternator generator and connections this unit for listing

1шт.

49

CONNECTION, injection pump solenoid lead, refer to eng-5 parts catalog section B for unit listing

1шт.

50

ALTERNATOR ASSY, refer to alternator generator and connections for unit listing

1шт.

51

1113650

STARTING MOTOR

MOTOR ASSY, cranking, 601699C91, refer to cranking motor this unit for listing

1шт.

52

546777R1

CABLE ASSY, engine

1шт.

53

U17570

SPACER,1/2" X-Strng Pipe x 4 11/16"

PIPE, flasher light LH

1шт.

18790R1

BOLT

3/8 x 5-1/2 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120803R1

WASHER, 13/32 x 1 x 11 ga C-Z

2шт.

54

GAUGE ASSY, charge indicator, refer to group 11 under instruments and gauges for unit listing

1шт.

55

166166R91

HORN

ASSY, warning, straw chopper

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 3/4 C-Z slt-truss-hd

1шт.

56

241120R91

RELAY

ASSY, straw chopper

1шт.

57

632106C91

CABLE ASSY, battery to starting motor

1шт.

58

172027C1

CABLE ASSY, headlight, night light w/operators cab

1шт.

58

172709C1

CABLE ASSY, headlight, night light not operators cab

1шт.

59

GAUGE ASSY, engine load indicator, refer to group 11 under instruments and gauges for unit listing

1шт.

60

HEADLIGHT ASSY, sealed beam 12-volt, night lighting, refer to lights this unit for listing

2шт.

61

49069D

SPACER

headlight, night lighting

2шт.

62

350920R1

CLAMP

head light, night light w/operators cab

2шт.

63

U17570

SPACER,1/2" X-Strng Pipe x 4 11/16"

PIPE, headlight, night light w/operators cab

1шт.

18790R1

BOLT

3/8 x 5-1/2 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

4шт.

64

LIGHT ASSY, sealed beam 12-volt grain tank and unloader, refer to lights this unit for listing

1шт.

65

561915R1

BRACKET

grain tank and unloader light, night light

2шт.

66

172025C1

CABLE ASSY, grain tank light, night light

1шт.

67

172034C1

CABLE ASSY, electric clutch switch, feeder drive electric clutch

1шт.

68

244641R91

SWITCH

ASSY, feeder clutch, feeder drive electric clutch

1шт.

69

172033C1

CABLE ASSY, feeder clutch, feeder drive electric clutch

1шт.

70

172284C1

HOLDER

BRUSH HOLDER, module, feeder drive electric clutch

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

71

172283C1

ARMATURE

electric clutch, feeder drive electric clutch, also refer to PFM-1 parts catalog section C group 11

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 znd hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

72

172282C1

DRIVE

FIELD ASSY, electric clutch, feeder drive electric clutch, also refer to PFM-1 parts catalog section C group 11

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 znd hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

73

561916R1

CLAMP, head light, night light not operators cab

2шт.

74

172036C1

CABLE ASSY, micro switch to relay thru main center harness, straw chopper

1шт.

75

BLOCK, junction glow meter, refer to eng-5 parts catalog section B

1шт.

76

BRACKET, voltage regulator, refer to alternator, generator and connections this unit for listing

1шт.

77

2591271R91

CABLE ASSY, Serial Range: battery-battery

1шт.

78

588052R91

CABLE ASSY, glow plug meter to glow plug switch

1шт.

79

627670C1

IGNITION SWITCH

SWITCH ASSY, glow plug

1шт.

80

370380R92

METER

ASSY, glow plug

1шт.

81

172037C1

CABLE, key switch to glow plug switch

1шт.

82

574649R91

SWITCH

ASSY, micro alarm, operators cab

1шт.

134530

NUT,Hex, #6 - 32

2шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no 6 x 1-1/4 C-Z pan-hd slt mach

2шт.

492-11006

LOCK WASHER,#6

Lock, #6

2шт.

16543R1

WASHER, 5/32 x 7/16 x 18 ga C-Z

2шт.

83

587885R92

BUZZER

ASSY, cab alarm, operators cab

1шт.

134530

NUT,Hex, #6 - 32

4шт.

436666

SCREW, no 6 x 5/8 C-Z pan-hd slt mach

2шт.

436663

SCREW, no 6 x 3/8 C-Z pan-hd slt mach

2шт.

131044

LOCK WASHER

Lock, #6

4шт.

84

173014C1

PLATE, warning switch, operators cab

1шт.

18482R1

BOLT,Short NK, 5/16"-18 x 2", G2

5/16 x 2 C-Z sq-nk crg

2шт.

22868R1

BOLT, 5/16 x 6-1/2 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

85

H140

SPRING

alarm lever switch, operators cab

1шт.

86

171217C1

CABLE ASSY, fuse panel to junction block, operators cab

1шт.

87

155497C91

CABLE ASSY, block to switch, operators cab

1шт.

88

937525R1

ANGLE, switch holder, operators cab

1шт.

89

937524R1

BLOCK, junction, operators cab

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

no. 10 x 1 c-Z pan-hd slt mach

3шт.

90

155642C1

SHIELD, wire, operators cab

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

91

154850C91

SWITCH

ASSY, blower, operators cab

1шт.

92

167502C1

STRIP, buzzer insulating, operators cab

1шт.

93

561994R91

CABLE ASSY, micro switch to buzzer, operators cab

1шт.

94

631760R91

ELECTRICAL WIRE

CABLE ASSY, switch to ground, operators cab

1шт.

95

161161C91

CABLE ASSY, switch to blower, operators cab

1шт.

96

272407R91

CABLE ASSY, buzzer to junction block, operators cab

1шт.

97

166225C2

SUPPORT

warning switch, straw chopper

2шт.

98

171173C1

BRACKET

ASSY, warning switch, straw chopper

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

4шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd whiz lock

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

99

COVER ASSY, vertical filter, refer to group 13 under operators cab for unit listing

1шт.

100

PRESSURIZER ASSY, 12-volt blower, refer to group 13 under operators cab for unit listing

1шт.
