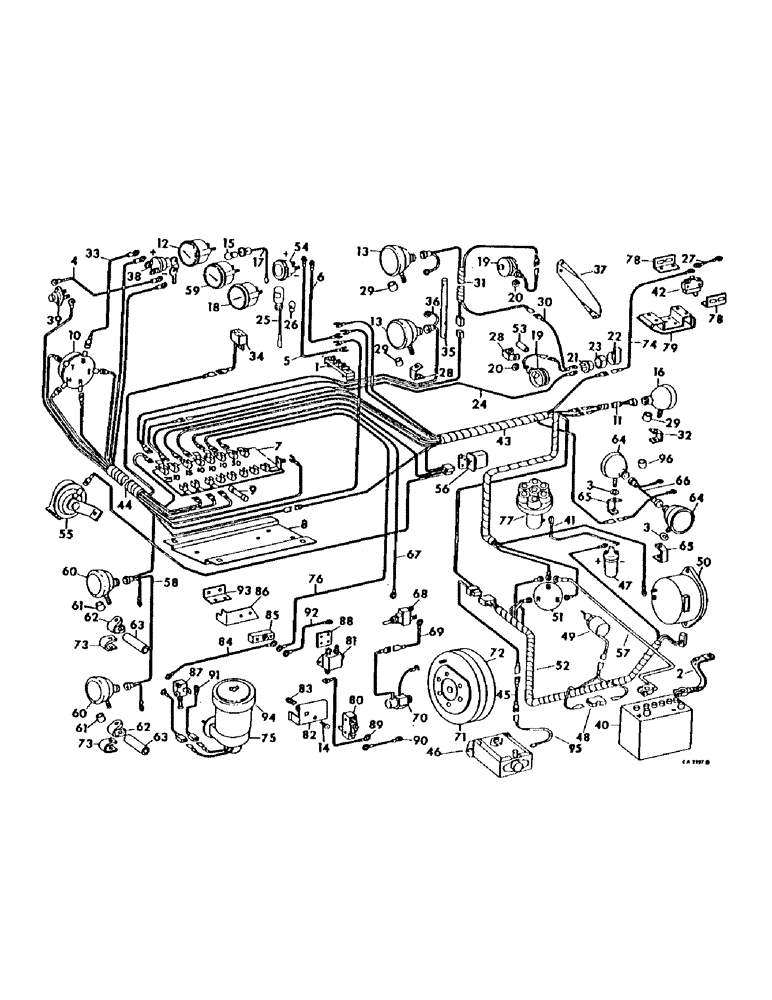

Запчасти Case IH 615 (08-08) - ELECTRICAL, WIRING DIAGRAM, GASOLINE ENGINE, SERIAL NO 3291 AND ABOVE (06) - ELECTRICAL

1

155219C91

BLOCK ASSY, junction

1шт.

134547

SLEEVE

NUT, no. 12 znd sq

2шт.

20709R1

SCREW, no. 12 x 3/4 C-Z slt-pan-hd mach

2шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

2шт.

2

629029R92

NEG BATTERY CABLE

CABLE ASSY, Serial Range: battery-ground

1шт.

180143

SCREW,Hex, 7/16" - 14 x 3/4"

7/16 x 3/4 znd hex-hd cap

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

21763R1

WASHER

15/32 x 3/4 x 11 ga C-Z

1шт.

3

936476R1

SQ HOLE WASHER

SPACER, grain tank and unloader lights, night light, serial number 12000 and below

2шт.

4

172021C1

CABLE, starter button

1шт.

5

172031C1

CABLE, amp front positive

1шт.

6

172032C1

CABLE, amp front negative

1шт.

7

170523C3

PANEL

fuse

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

436733

BOLT

SCREW, no. 10 x 5/8 C-Z slt-pan-hd

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

8

172206C1

SUPPORT, fuse panel

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 znd sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

117142

FUSE,10 Amp, Type 3AG

cartridge type, 10 amp

4шт.

9

9426333

FUSE,15 Amp, Type 3AG

cartridge type, 15 amp

1шт.

9

455844

FUSE,25 Amp, Type 3AG

cartridge type, 25 amp

1шт.

9

223-31

FUSE,10 Amp, Type 3AG

cartridge type, 30 amp

1шт.

10

166380C92

SWITCH

ASSY, light

1шт.

57313D

KNOB, light switch

1шт.

57312D

NUT, light switch

1шт.

436691

SCREW, no. 8 x 1/4 C-Z slt-pan-hd

1шт.

141707

WASHER,Int Tooth, 11/16"

11/16 int-tooth lock

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

11

170908C1

CABLE ASSY, tail, Serial Range: light-connection

1шт.

12

SPEEDOMETER ASSY, refer to group 11 under instruments and gauges for unit listing

1шт.

13

HEADLIGHT ASSY, refer to lights for unit listing

2шт.

14

570028R91

BOLT

BOLT, slip clutch arm switch, operators cab

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

15

127934

BELT, TRANSMISSION

light no. 57

1шт.

16

TAILIGHT ASSY, refer to lights this unit for listing

1шт.

17

372546R91

CABLE

SOCKET ASSY, instrument light

3шт.

18

TACHOMETER ASSY, refer to group 11 under instruments and gauges for unit listing

1шт.

19

LIGHT ASSY, flasher, refer to light this unit for listing

2шт.

20

394262R1

WASHER

flasher light

2шт.

21

394132R91

FLASHER UNIT

FLASHER ASSY

1шт.

22

394133R1

FASTENER

CLAMP, flasher mounting

1шт.

23

394134R1

SEAL

HOSE, flasher mounting absorber

1шт.

24

172028C1

CABLE ASSY, flasher light

1шт.

25

170907C91

SOCKET ASSY, instrument light

1шт.

26

142450

BULB,C2R, #67, 13.5V

no. 67 instrument light

1шт.

27

167580C91

WIRE ASSY, micro switch ground, straw chopper

1шт.

28

561915R1

BRACKET

LH flasher and headlight

3шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

29

49069D

SPACER

headlight and tailight

3шт.

30

172029C1

CABLE, flasher light LH

1шт.

31

172746C1

HARNESS ASSY, right headlight and flasher

1шт.

32

561915R1

BRACKET

tail light mounting

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

23060R1

LOCK WASHER,Int Tooth, 5/16"

WASHER, 5/16 znd int-tooth lock

4шт.

33

172022C1

CABLE, light switch

1шт.

34

179466C1

CABLE, instrument light

1шт.

35

172708C1

PIPE, left headlight support, not operators cab, serial no. 2580 and below

1шт.

18657R1

BOLT,Hex, 1/4"-20 x 1-1/2", G2

1/4 x 1-1/2 znd hex-hd mach

1шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 3/4 znd hex-hd

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 znd hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

36

172035C1

CABLE, head light LH

1шт.

37

175389C2

SUPPORT ASSY, light bracket RH, for use w/67538C91 flasher light and 376849R91 head light

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

38

164895C91

SWITCH

ASSY, ignition key type

1шт.

365502R1

NUT

13/16-20NF hex

2шт.

NLS

NO LONGER SERVICED

LOCK, Int Tooth, 13/16"

1шт.

39

366317R93

SWITCH

ASSY, starting

1шт.

39

366317R93GV

CONTROL

Value, Control Switch

1шт.

120611

NUT,#10 - 32

no. 10-32 sq

2шт.

436695

SCREW,Slotted Pan Hd, #8-32 x 1/2"

no. 8 x 1/2 x C-Z slt-pan-hd

1шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

no. 10-32 x 1/2 slt-pan-hd

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

21742R1

WASHER

1-1/32 x 1-1/2 x 22 ga

2шт.

40

BATTERY, 12 volt, refer to battery and support for gasoline engine this unit for unit listing

1шт.

41

CABLE ASSY, ignition coil ground, refer to eng-2 parts catalog section E for unit listing

1шт.

42

574649R91

SWITCH

ASSY, micro, straw chopper

1шт.

134530

NUT,Hex, #6 - 32

2шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no. 6 x 1-1/4 slt-pan-hd

2шт.

492-11006

LOCK WASHER,#6

Lock, #6

2шт.

43

172020C1

HARNESS

ASSY, main center cable

1шт.

44

172019C1

HARNESS

ASSY, main front cable

1шт.

45

172075C1

CABLE, fuel pump

1шт.

46

PUMP ASSY, fuel, refer to group 12 under fuel tank, lines and pump for gasoline engine for unit listing

1шт.

47

COIL ASSY, ignition, refer to eng-2 parts catalog section E for unit listing

1шт.

48

548239R1

DIODE

ASSY

1шт.

49

VALVE ASSY, fuel shut-off solenoid, refer to eng-2 parts catalog section E for unit listing

1шт.

50

ALTERNATOR ASSY, refer to alternator generator this unit for listing

1шт.

51

MOTOR ASSY, cranking, refer to cranking motor this unit for listing

1шт.

52

533845R1

HARNESS ASSY, engine

1шт.

53

U17570

SPACER,1/2" X-Strng Pipe x 4 11/16"

PIPE, flasher light LH

1шт.

18791R1

BOLT

3/8 x 6 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

54

GAUGE ASSY, charge indication, refer to group 11 under instruments and gauges for unit listing

1шт.

55

166166R91

HORN

ASSY, warning, straw chopper

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

56

241120R91

RELAY

ASSY, straw chopper

1шт.

57

632106C91

CABLE ASSY, battery to starting motor

1шт.

58

172027C1

CABLE ASSY, headlight, night light w/operators cab

1шт.

58

172709C1

CABLE ASSY, headlight, night light not operators cab

1шт.

59

GAUGE ASSY, engine load indicator, refer to group 11 under instruments and gauges for unit listing

1шт.

60

HEADLIGHT ASSY, sealed beam 12-volt, night lighting, refer to lights this unit for listing

1шт.

61

49069D

SPACER

headlight, night lighting

2шт.

62

350920R1

CLAMP

head light, night light w/operators cab

2шт.

63

U17570

SPACER,1/2" X-Strng Pipe x 4 11/16"

PIPE, headlight, night light w/operators cab

2шт.

18790R1

BOLT

3/8 x 5-1/2 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

4шт.

64

LIGHTS ASSY, sealed beam 12-bolt grain tank and unloader, night lighting, refer to lights this unit for listing

2шт.

65

561915R1

BRACKET

grain tank and unloader light, night light, refer to lights this unit for listing

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

23060

CARTRIDGE

WASHER, 5/16 med lock

2шт.

106969R1

WASHER

11/32 x 1-1/4 x 16 ga C-Z

1шт.

66

172025C1

CABLE ASSY, grain tank light, night light

1шт.

67

CABLE ASSY, electric clutch switch, feeder drive electric clutch refer to group 33 under feeder drive chain type for unit listing

1шт.

68

SWITCH ASSY, feeder clutch, feeder drive electric clutch, refer to group 33 under feeder drive chain type for unit listing

1шт.

69

CABLE ASSY, feeder clutch, feeder drive electric clutch, refer to group 33 under feeder drive chain type for unit listing

1шт.

70

BRUSH HOLDER, module, feeder drive electric clutch, also refer to PFH-1 parts catalog section C group-8 serial number 8000 and below for serial number 8001 and above refer to group 33 under feeder drive chain type for unit listing

1шт.

71

FIELD ASSY, electric clutch, feeder drive electric clutch, also refer to PFM-1 parts catalog section c group 8, refer to group 33 under feeder drive chain type for unit listing

1шт.

72

ARMATURE, electric clutch, feeder drive electric clutch, also refer to PFM-1 parts catalog section C group 8, refer to group 33 under feeder drive chain type for unit listing

1шт.

73

561916R1

CLAMP, head light, night light not operators cab

2шт.

74

172036C1

CABLE ASSY, micro switch to relay thru main center harness, straw chopper

1шт.

75

PRESSURIZER ASSY, 12-volt blower, refer to group 13 under operators cab for unit listing

1шт.

76

171217C1

CABLE ASSY, fuse panel to junction block, operators cab

1шт.

77

DISTRIBUTOR ASSY, refer to eng-2 parts catalog section E for unit listing

1шт.

78

166225C2

SUPPORT

warning switch, straw chopper

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd whiz lock

4шт.

79

171173C1

BRACKET

ASSY, warning switch, straw chopper

1шт.

936016R1

NUT, 1/4 C-Z whiz lock

4шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd whiz lock

4шт.

419855R1

WASHER, 11/32 x 3/4 x 16 ga C-Z

2шт.

80

574649R91

SWITCH

ASSY, micro, operators cab

1шт.

134530

NUT,Hex, #6 - 32

2шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no 6 x 1-1/4 C-Z pan-hd slt machine

2шт.

131044

LOCK WASHER

Lock, #6

2шт.

16543R1

WASHER, 5/32 x 7/16 x 18 ga C-Z

2шт.

81

587885R92

BUZZER

ASSY, cab alarm, operators cab

1шт.

134530

NUT,Hex, #6 - 32

4шт.

436663

SCREW, no. 6 x 3/8 pan-hd slt

2шт.

436666

SCREW, no 6 x 5/8 C-Z pan-hd slt machine

2шт.

492-11006

LOCK WASHER,#6

Lock, #6

4шт.

82

173014C1

PLATE, warning switch, operators cab

1шт.

18482R1

BOLT,Short NK, 5/16"-18 x 2", G2

5/16 x 2 sq-nk crg

2шт.

24666R1

BOLT,Hex, 5/16" - 18 x 7", Gr 2

1шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

3шт.

83

H140

SPRING

alarm lever switch, operators cab

1шт.

84

155497C91

CABLE ASSY, block to switch, operators cab, serial no. 8000 and below

1шт.

85

937524R1

BLOCK, junction, operators cab

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

no 10 x 1 C-Z pan-hd slt mach

3шт.

86

155642C1

SHIELD, wire, operators cab

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

87

154850C91

SWITCH

ASSY, blower, operators cab

1шт.

88

167052C1

STRIP, buzzer insulating, operators cab

1шт.

89

561994R91

CABLE ASSY, micro switch to buzzer, operators cab

1шт.

90

631760R91

ELECTRICAL WIRE

CABLE ASSY, switch to ground, operators cab

1шт.

91

161161C91

CABLE ASSY, switch to blower, operators cab

2шт.

92

272407R91

CABLE ASSY, buzzer to junction block, operators cab

1шт.

93

937525R1

ANGLE, switch holder, operators cab

1шт.

94

COVER ASSY, vertical filter, refer to group 13 under operators cab for unit listing

1шт.

95

172075C1

CABLE, fuel pump

1шт.

96

49069D

SPACER

grain tank and unloader lights

2шт.

97

195675C1

CABLE ASSY, switch to thermostat, operators cab

1шт.
