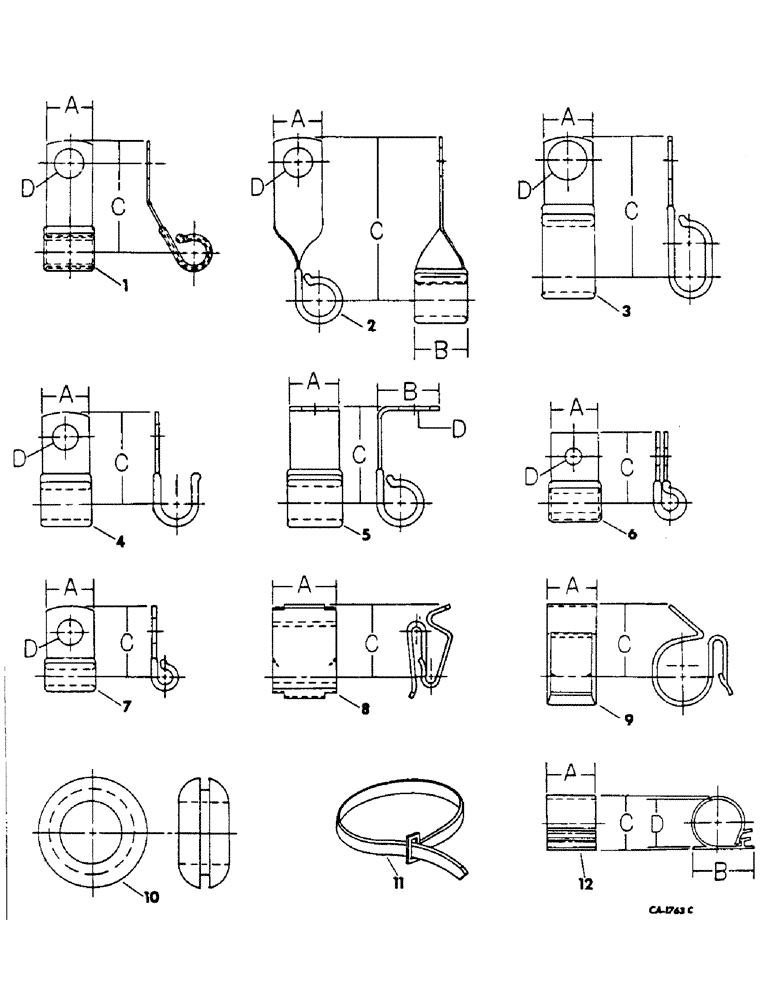

Запчасти Case IH 615 (08-02) - ELECTRICAL, CLIPS, GROMMET AND CABLE TIES (06) - ELECTRICAL

1

363662R1

CLIP

3/4, 1-7/8, 15/32 (I)

1шт.

2

363660R1

CLIP

3/4, 3/4, 2-5/8, 13/32 (I)

1шт.

2

370820R1

CLIP

3/4, 3/4, 2-5/8, 17/32 (I)

1шт.

3

400505R1

CLAMP

3/4, 2-1/4, 17/32 (I)

1шт.

3

362666R1

CLIP

3/4, 2-1/4, 15/32 (I)

1шт.

4

263308R91

3/4, 1-7/8K, 17/32 (I)

1шт.

5

370383R1

CLIP

3/4, 15/16, 1-1/2, 15/32 (I)

1шт.

5

365584R1

CLIP

13/16, 7/8, 13/32 (I)

1шт.

6

589980R2

CLIP

3/4, 1-1/8, 13/32 (I)

1шт.

6

132112H1

CLAMP,9/16", 3/8" Bolt

3/4, 1-7/32, 3/8 (U)

1шт.

7

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

3/4, 1-1/2, 13/32 (I)

1шт.

7

362127R1

CLIP

3/4, 1-1/8, 15/32 (I)

1шт.

7

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

3/4, 1-3/8, 13/32 (I)

1шт.

7

358986R1

CABLE CLIP

1, 1-11/16, 17/32 (I)

1шт.

7

384554R1

CLIP

3/4, 1-7/8, 13/32 (I)

1шт.

7

362123R1

CLIP

3/4, 1-7/8, 15/32 (I)

1шт.

7

362667R1

CLIP

3/4, 1-7/8, 15/32 (I)

1шт.

7

384559R1

CLIP

3/4, 2-9/16, 13/32 (I)

1шт.

8

164788C1

1/2, 23/32 (I)

1шт.

9

164789C1

3/8, 3/4 (I)

1шт.

10

144226

GROMMET,1/4" ID x 5/8" x .062", Diag. Cut

1/4 diagonal cut rubber

1шт.

10

109390

GROMMET,5/16" ID x 23/32" x .062", Diag Cut

5/16 diagonal cut rubber

1шт.

10

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

3/8 diagonal cut rubber

1шт.

10

117961

GROMMET,3/8" ID x 27/32" x .062"

rubber plain 3/8 hole

1шт.

10

112734

GROMMET, rubber 3/8" ID x 11/16" x .062"

1шт.

11

702093C1

CABLE TIE

TIE, light cable

1шт.

12

166921C1

1, 1, .41, .25 (I)

1шт.
