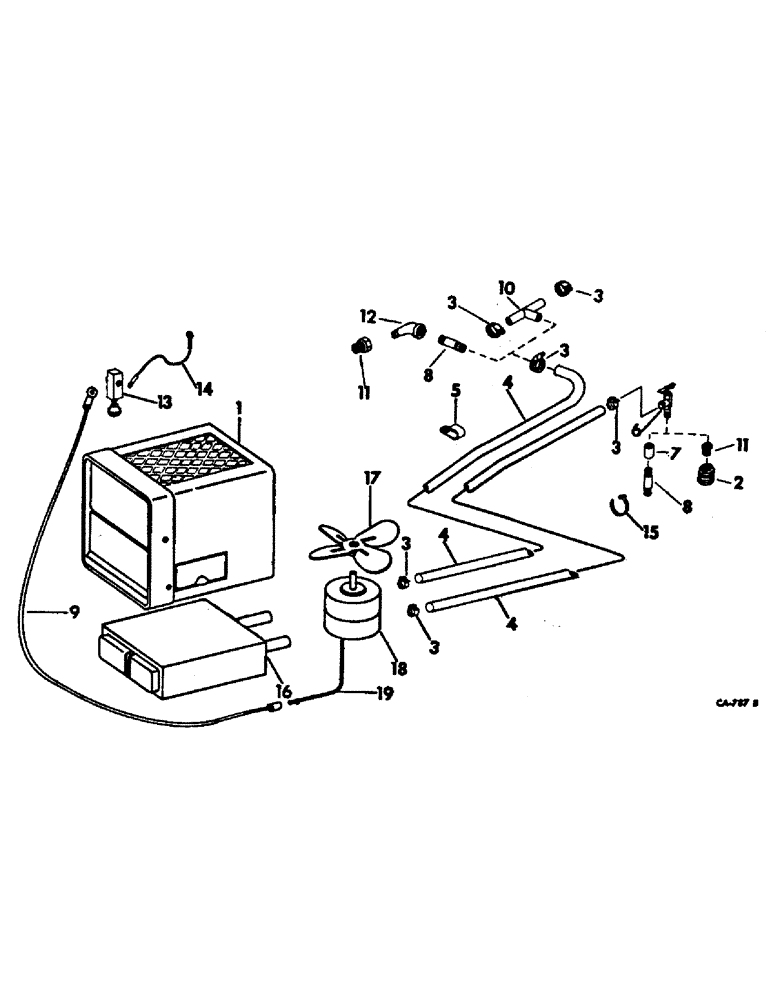

Запчасти Case IH 615 (13-19) - OPERATORS CAB, HEATER, HOSE, FITTING AND VALVE (05) - SUPERSTRUCTURE

1

936197R91

HEATER ASSY, includes ref. nos. 16 thru 19

1шт.

2

221-607

REDUCER,Hex, 1 1/4" x 1/2" NPT

1-1/4 to 1/2 ZND pipe, diesel engine, serial no. 8000 and below

1шт.

3

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, heater hose, 4 used for gasoline engines, 6 used for diesel engines

1шт.

4

HOSE, heater, use 140 in. of 5/8 ID hose from 50 ft roll marked 995108R2

2шт.

5

154695C1

CLAMP

hose

3шт.

6

301803R91

VALVE

heater shut off

1шт.

7

NLS

NO LONGER SERVICED

3/8 ZID pipe, gasoline engine

1шт.

8

192701

NIPPLE, 3/8 x 3 ZID long pipe, gasoline engine

2шт.

9

937526R91

WIRE ASSY, switch to male tip terminal on motor

1шт.

10

167600R1

TEE, 1/2 ZID pipe, diesel engine, serial no. 8000 and below

1шт.

11

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

Nipple, ZID pipe reducer 1/2"-14 NPTF x 3/8"-18 Fem NPTF

1шт.

12

144119

ADAPTER

ELBOW, 3/8 ZID 45 deg street, gasoline engine

1шт.

13

937574R91

SWITCH

ASSY, heater

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 ZND hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

2шт.

14

631760R91

ELECTRICAL WIRE

WIRE, switch to junction block 4 in.

1шт.

15

702093C1

CABLE TIE

STRAP, hose TY

2шт.

16

936491R91

CORE

ASSY, heater

1шт.

17

936490R91

FAN

ASSY 6 IN. DIA.

1шт.

18

936489R91

MOTOR

ASSY

1шт.

19

46894H

WIRE CONNECTOR,14 - 16 SAE

TERMINAL MALE TIP

1шт.
