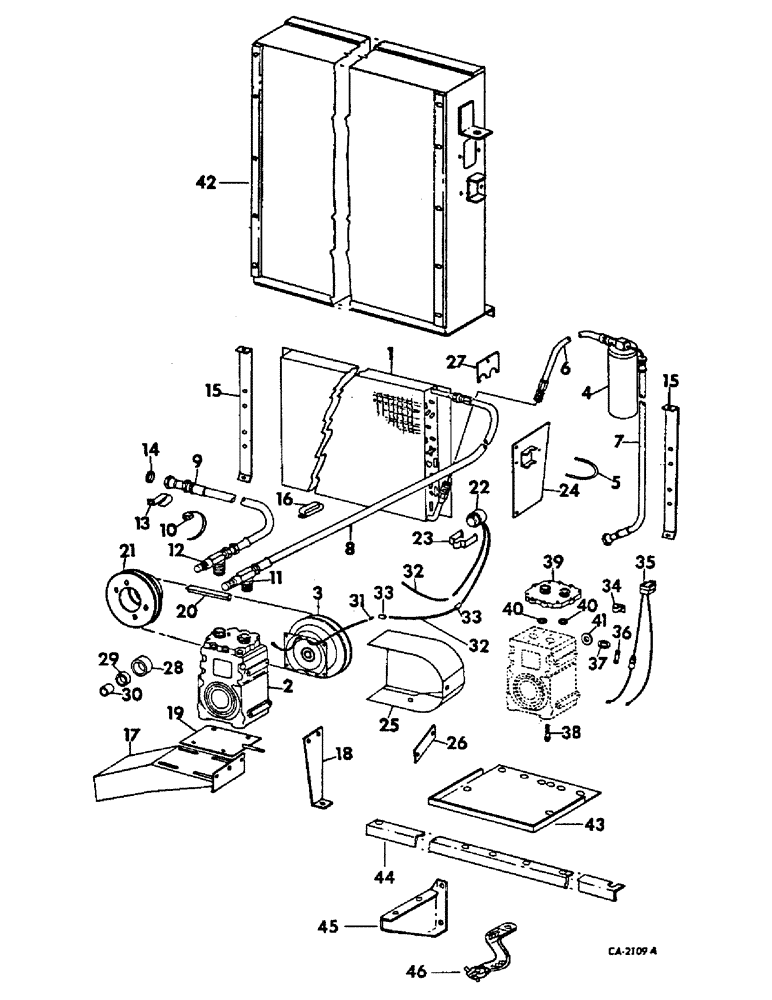

Запчасти Case IH 615 (13-15) - OPERATORS CAB, AIR CONDITIONER (05) - SUPERSTRUCTURE

1

165130C91

COIL

CORE ASSY, condensor

1шт.

2

527541R92

AIRCOND. COMPRESSOR

COMPRESSOR W/CAP ASSY, air conditioner, includes ref nos. 38 thru 41

1шт.

2

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

2

1924004C2

REMAN-A/C COMPRESSOR

Remanufactured COMPRESSOR

1шт.

2

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8 x 1-1/2 hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

20803R1

WASHER

WASHER, 13/32 x 1 x 11 ga C-Z

4шт.

3

165129C91

CLUTCH

CLUTCH ASSY, compressor

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 znd hex-hd mach

4шт.

181610

SCREW,Hex, 5/16" - 24 x 1 1/4", Gr 5

SCREW, 5/16-24 x 1-1/4 znd hex-hd

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

22859R1

WASHER

WASHER, 11/32 x 3/4 x 7 ga C-Z

1шт.

4

572832R91

CONTAINER

FILTER ASSY, receiver, serial no 3290 and below

1шт.

4

175254C1

TANK

DEHYDRATOR ASSY, receiver, serial no 3291 and above

1шт.

5

165164C1

BOLT

SPARE PART BOLT, receiver dryer filter U

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

NUT, 1/4"-20, G5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

167888C1

HOSE ASSY.

HOSE ASSY, condensor to dryer filter, 5/16 in ID x 17 in long

1шт.

7

172161C1

HOSE

HOSE ASSY, dryer filter to evaporatro, 5/16 in ID x 206 in long

1шт.

8

159930C91

A/C HOSE,0.41" ID x 48.00"

Valve To Condensor

1шт.

9

172160C1

HOSE ASSY.

HOSE ASSY, evaporator to valve suction, 1/2 in x 177 in long

1шт.

10

702093C1

CABLE TIE

CABLE STRAP STRAP, hose TY

9шт.

11

938197R91

LOCK VALVE

VALVE ASSY

1шт.

12

938196R91

VALVE

VALVE ASSY

1шт.

13

394271R1

CLIP

CLIP, hose

4шт.

14

142350

GROMMET,7/8" ID x 1 5/8" x .125", Diag Cut

GROMMET, 7/8 ID rubber

2шт.

15

172170C1

SPARE PART STRAP, condensor support, belt drive, serial no. 8001 and above

2шт.

15

172169C1

SPARE PART SUPPORT, condensor, hydrostatic drive, serial number 12000 and below

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT, 5/16 flange lock

8шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 slt-truss-hd

8шт.

16

154695C1

CLAMP

CLAMP, cab to compressor hose

4шт.

17

173576C1

SPARE PART BRACKET ASSY, compressor mount

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

3шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

NUT, 5/16"-18, G5

3шт.

120377

NUT,3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

18

172168C1

SPARE PART SUPPORT, compressor tie down, gasoline engine

1шт.

18

172167C1

SPARE PART SUPPORT, compressor tie down, diesel engine, serial no. 8000 and below

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

NUT, 5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

19

632939R91

SPARE PART BASE ASSY, compressor mounting

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

1шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

7/16 C-Z hex. jam

1шт.

20

936331R1

V-BELT,0.50" W

Compressor drive

1шт.

21

150911C1

SPARE PART PULLEY, compressor drive, 5-1/4 in. OD, belt drive

1шт.

21

172280C1

PULLEY

PULLEY, compressor drive, 5-1/4 in. OD, hydrostatic drive, serial number 12000 and below

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8 x 2 hex-hd

4шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

SCREW, 3/8 X 2-1/4 HEX-HD

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

22

155491C91

THERMOSTAT

THERMOSTAT

1шт.

23

155482C1

CLIP

CLIP, thermostat

1шт.

24

165165C91

SPARE PART SUPPORT ASSY, receiver dryer filter, serial number 12000 and below

1шт.

25

632941R91

SPARE PART SHIELD ASSY, compressor drive belt

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

NUT, 5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

26

632944R1

SPARE PART SUPPORT, drive belt shield

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

NUT, 5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

27

159940C1

BAR

COVER, air chute tube opening

2шт.

145189

SCREW, no. 10 x 3/8 C-Z slt-pan-hd tap

2шт.

28

161092C91

PULLEY

RIM ASSY, compressor drive belt idler, includes ref. no. 29

1шт.

29

161076C91

BEARING ASSY,17 mm ID x 47 mm OD x 14 mm

BEARING ASSY, compressor belt idler

2шт.

18825R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 2

BOLT, 5/8 x 2-3/4 znd hex-hd mach

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

NUT, 5/8 znd hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

12258R1

WASHER

WASHER, 21/32 x 1-1/4 x 11 ga

7шт.

30

627389R1

SPACER,16.7mm ID x 22.23mm OD x 22.2mm L

SPACER, compressor drive belt idler

1шт.

31

46894H

WIRE CONNECTOR,14 - 16 SAE

TERMINAL, compressor clutch wire

1шт.

32

167424C1

CABLE, thermostat, use 30 in. of 14 ga wire from 100-ft roll marked 995055R1 and two terminals 46984H

1шт.

33

46893H

CONNECTION

CONNECTOR, cable snap-in

4шт.

34

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, compressor wiring

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

35

174117C1

SPARE PART WIRING ASSY

1шт.

36

432644

FUSE,20 Amp, Type SFE

FUSE, cartridge type, 20 amp, serial no. 8000 and below

1шт.

37

611352R1

WASHER

SPARE PART WASHER, mounting

6шт.

38

527730R1

SPARE PART SCREW, 5/16-24 x 1-3/8 12-pt hd cap

4шт.

39

527731R1

SPARE PART CYLINDER HEAD, rotalock valve type

1шт.

40

527733R1

GASKET

GASKET, rotalock

1шт.

41

406838R1

SPARE PART FLINGER, dust cap

1шт.

42

172171C1

SPARE PART ADAPTER ASSY, rotary screen, gasoline engine

1шт.

42

172177C1

SPARE PART ADAPTER ASSY, rotary screen, diesel engine, serial no. 8000 and below

1шт.

43

CARRIER, battery, refer to group 8 under battery and support for gasoline engine for unit listing

1шт.

44

SUPPORT, battery, refer to group 8 under battery and support for gasoline engine for unit listing

1шт.

45

BRACKET, battery support, refer to group 8 under battery and support for gasoline engine for unit listing

1шт.

46

CABLE ASSY, battery to ground, refer to group 8 under wiring diagram for diesel engine for unit listing

1шт.

527732R91

SPARE PART KIT, valve plate

1шт.

302810R91

KIT ASSY, air conditioner compressor gasket

1шт.

527624R91

SEAL KIT

KIT, seal service

1шт.
