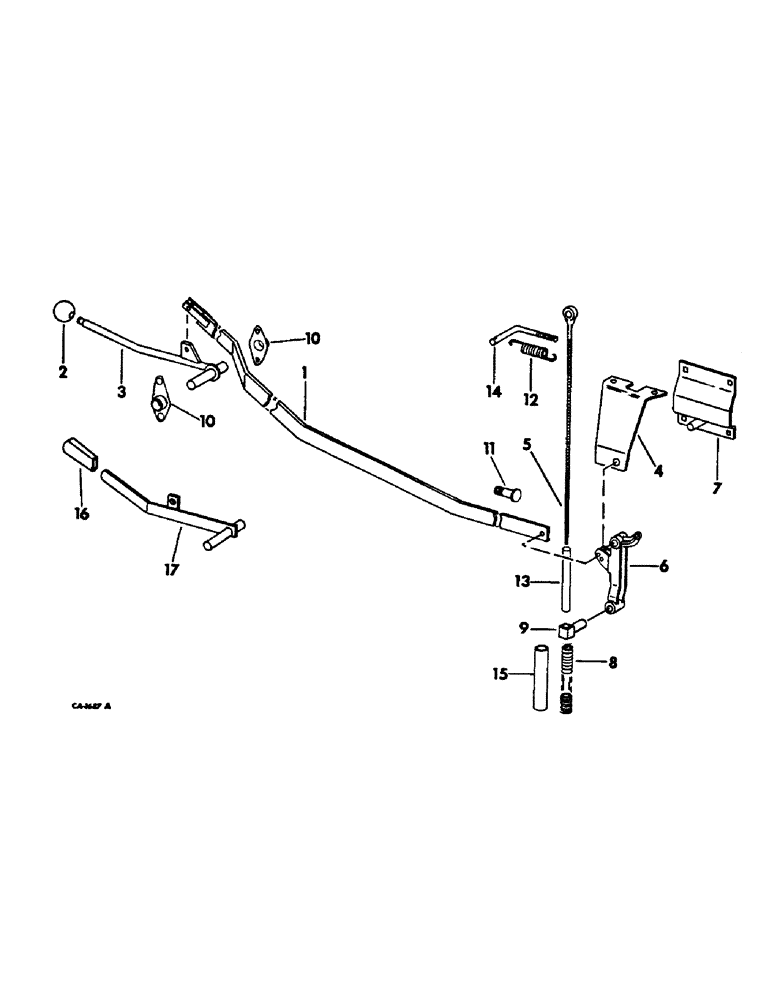

Запчасти Case IH 615 (13-12) - SEPARATOR DRIVE CONTROL (05) - SUPERSTRUCTURE

1

171471C1

BAR ASSY, separator drive clutch front control

1шт.

18608R1

LOCK PIN,7.92mm OD x 25.4mm L, Coiled

Pin, 5/16" x 1", Slotted

1шт.

21881R1

CLEVIS PIN

PIN, 3/8 x 1 C-Z rod end

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga C-Z

1шт.

2

163574C1

KNOB

separator drive clutch lever, serial no 3290 and below

1шт.

3

171477C2

LEVER ASSY, separator drive clutch, serial no 3290 and above

1шт.

4

171478C1

SUPPORT, separator drive clutch rear pivot shaft

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

171479C1

BOLT,1/2" - 13 x 24.70"

separator drive clutch rear pivot arm

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

1шт.

6

628174R1

ARM, separator drive clutch control

1шт.

7

171481C1

BRACKET ASSY, separator drive clutch

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

8

523267R1

SPRING

tensioner

1шт.

9

171483C1

TRUNNION, separator control

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga

2шт.

10

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING, separator clutch control lever

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

570028R91

BOLT

BOLT ASSY, stop

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

12

43229H

SPRING

separator drive clutch control

1шт.

21659R1

PIN, 7/16 x 1-1/4 C-Z std-hd

1шт.

13

171480C1

TUBE, idler adjusting bolt

1шт.

14

172925C1

ROD, control spring

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

15

173945C1

TUBE, separator drive spring, for straw chopper

1шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

16

938885R1

GRIP

separator drive clutch lever, serial no 3291 and above

1шт.

17

175728C1

LEVER ASSY, separator drive clutch, serial no 3291 and above

1шт.
