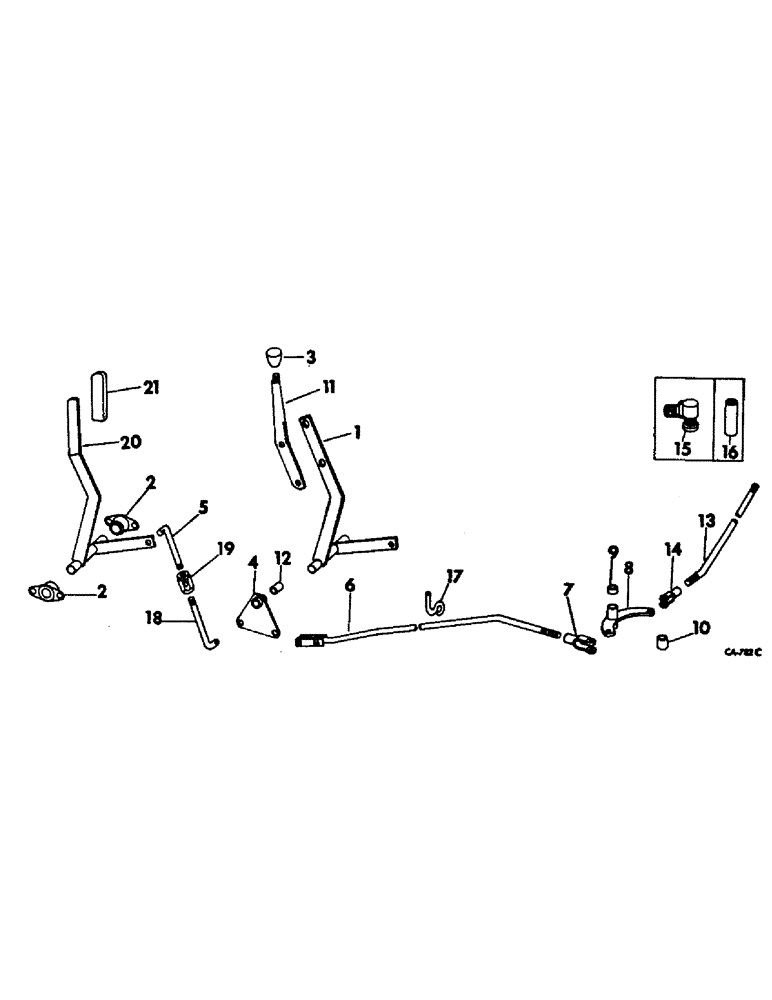

Запчасти Case IH 615 (13-11) - THROTTLE CONTROL (05) - SUPERSTRUCTURE

1

938836R91

LEVER ASSY, throttle, serial no 3290 and below

1шт.

475954R1

NUT

3/8-16 C-Z whiz lock

2шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 C-Z slt-truss-hd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING, throttle lever

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

173808C1

KNOB

throttle lever, serial no 3290 and below

1шт.

4

627498R91

BELLCRANK ASSY, throttle

1шт.

5

174135C1

ROD, throttle control upper front

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

6

628753R92

ROD ASSY, throttle rear

1шт.

7

144243

CLEVIS

3/8-24 adj rod end

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1 3/32 rod end

1шт.

22444R1

CLEVIS PIN,3/8" x 1"

PIN, 3/8 x 1 C-Z rod end

1шт.

8

150156C92

LEVER ASSY, rear pivot, include ref no 9

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

9

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

1шт.

10

156064C1

SPACER

rear pivot lever

1шт.

11

170910C1

ARM, throttle, serial no 3290 and below

1шт.

12

628758R1

SPACER, throttle bellcrank

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

939299R1

ROD, governor control, gasoline engine

1шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

1/4-28 hex. jam

1шт.

13

588050R1

ROD, governor control, diesel engine, serial no. 8000 and below

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

14

144242

CLEVIS

5/16-24 x 2-1/4 C-Z adj rod end

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

120690

PIN

5/16 x 31/32 C-Z rod end

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

15

305186R1

COUPLING, governor control rod, gasoline engine

1шт.

16

304164R91

JOINT

BALL JOINT ASSY, governor control rod, diesel engine, serial no 8000 and below

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-28 znd hex.

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

634461R1

GUIDE, throttle rod

1шт.

18

174134C1

ROD, throttle control upper

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

19

MA3973

TURNBUCKLE, throttle control rod

1шт.

20

175444C1

LEVER ASSY, throttle, serial no 3291 and above

1шт.

21

175446C1

GRIP, throttle lever, serial no 3291 and above

1шт.
