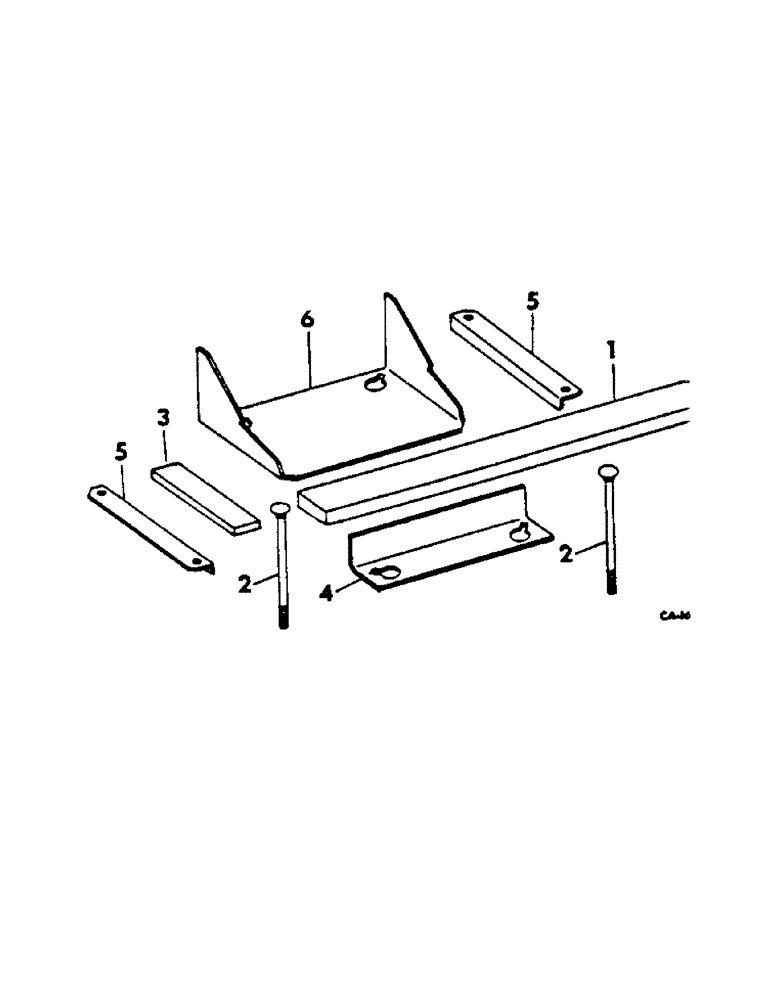

Запчасти Case IH 615 (14-06[1]) - SUSPENSION, GUIDE WHEEL SUPPORT COUNTERWEIGHT Suspension

1

161240C1

BAR, counter balance weight 30 lb.

20шт.

2

21606R1

BOLT, 5/8 x 10 C-Z sq-nk crg

2шт.

2

21608R1

BOLT, 5/8 x 13 C-Z sq-nk crg

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex.

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

3

654445R1

FILLER, counter balance weight

4шт.

4

161242C1

ANGLE, counter balance weight

1шт.

5

161244C1

ANGLE, counter balance weight

2шт.

6

161245C1

SECTION, counter balance weight

1шт.
