Запчасти Case IH 503 (152) - CLUTCH AND CLUTCH HOUSING, FOR HYDROSTATIC GROUND DRIVE (18) - CLUTCH

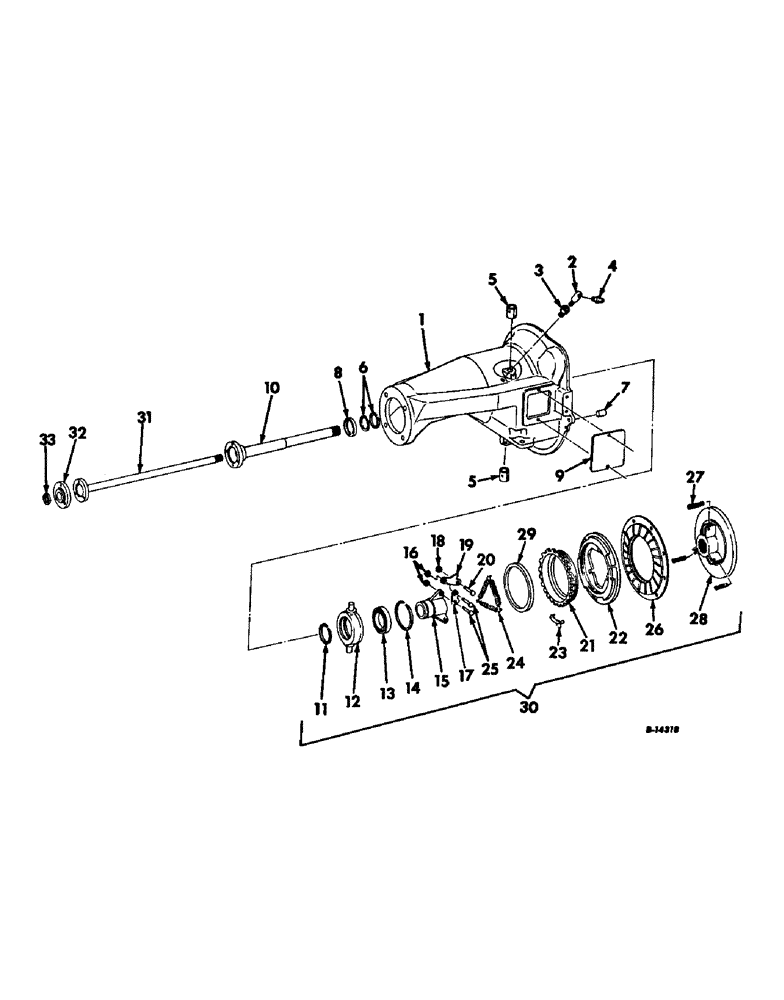

Схема запчастей Case IH 503 - (152) - CLUTCH AND CLUTCH HOUSING, FOR HYDROSTATIC GROUND DRIVE (18) - CLUTCH
3
28
24
26
30
2
32
23
6
19
5
31
8
13
29
15
20
4
1
10
11
7
25
22
27
17
21
33
16
18
14
9
12
5

Артикул

Название

Примечание

Количество

1

150789C21

HOUSING

ASSY, clutch

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

Gasoline or LP gas engines Hex, 1/4"-20 x 1 1/2", G5

4шт.

179803

BOLT,1/4" - 20 x 1 3/4", Gr 5

Diesel engines Hex, 1/4"-20 x 1 3/4", G5

4шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

62022R91

FITTING

pressure relief

1шт.

3

119933

ADAPTER,3/8" NPT Male x 1/8" NPT Fem

BUSHING, 3/8 x 1/8 reducer

1шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

3шт.

5

450263R1

BUSHING

clutch housing

2шт.

6

163648C1

SNAP RING,#334, 3.590", Int

clutch housing

2шт.

7

159851C1

BUSHING, clutch housing

2шт.

8

631305R91

OIL SEAL

SEAL ASSY, clutch housing oil

1шт.

9

150625C1

COVER, clutch housing

1шт.

179812

GEAR

SCREW, 5/16 x 1/2 hex-hd cap

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

629836R1

TUBE

separator drive

1шт.

11

29780D

RING

SNAP RING, external

1шт.

12

155471C1

BEARING CARRIER

CARRIER, bearing

1шт.

13

633704R91

BEARING ASSY,2.3622" ID x 3.7402" OD x 0.7087"

ball

1шт.

14

304780R1

RING, SNAP

SNAP RING, internal

1шт.

15

161167C11

SLEEVE

W/BUSHING, release

1шт.

16

266698R1

RING

retaining

6шт.

17

266696R1

DRAG LINK

LINK, connecting

6шт.

18

255395R1

RING

retaining

3шт.

19

268866R1

LEVER

3шт.

20

266694R1

AXLE PIN

PIN, clevis

6шт.

21

347871R1

NUT

adjusting

1шт.

22

268958R11

KIT ASSY, pressure plate, Includes ref no. 23

1шт.

23

319531R1

STOP

LOCK, adjusting

1шт.

19559R1

SCREW, 1/4 x 3/8 cap

1шт.

114604

LOCK WASHER,Ext Tooth, 1/4"

WASHER, 1/4 int-tooth lock

1шт.

24

268865R91

VALVE SPRING

SPRING ASSY, lever

1шт.

25

266697R1

AXLE PIN

PIN, clevis

6шт.

26

154759C91

CLUTCH DISC

PLATE AND FACE ASSY, drive

1шт.

27

266704R1

VALVE SPRING

SPRING, separator

3шт.

28

161166C1

CLUTCH ASSEMBLY

BODY, clutch

1шт.

29

347872R1

LARGE PLATE

RING, plate adjusting

1шт.

30

161165C91

CLUTCH ASSEMBLY

CLUTCH ASSY, Includes ref nos 11 thru 29

1шт.

31

150621C1

SHAFT

pump drive

1шт.

32

150622C1

SPACER

pump drive shaft

1шт.

33

150623C1

WASHER

pump drive shaft

1шт.

Выбрано товаров: 43
