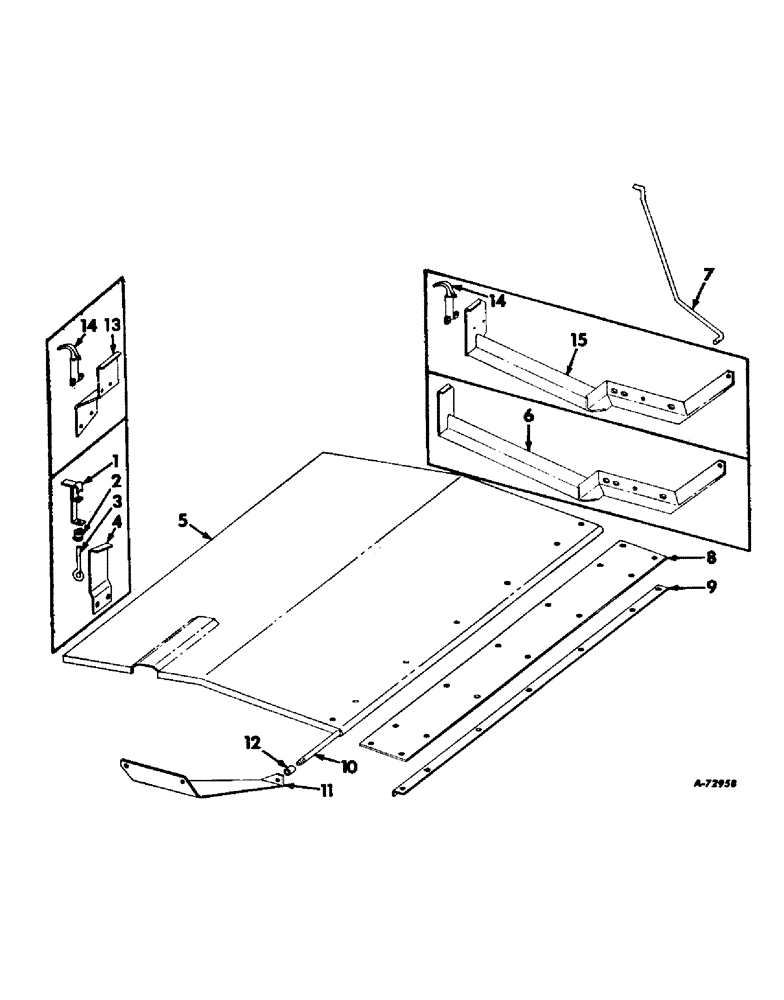

Запчасти Case IH 503 (418) - D-301 ENGINE 3-13/16 X 4.390, ENGINE COVER, LATCH AND SUPPORTS, SERIAL NO. 2430 AND BELOW (10) - ENGINE

1

633343R91

LATCH W/HANDLE ASSY, engine cover, combine Serial no. 950 & below

2шт.

2

131DS

SPRING

combine Serial no. 950 & below

2шт.

3

634360R1

ROD, engine cover latch spring, combine Serial no. 950 & below

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

512166R1

PIN,1/4" x 7/8"

1/4 X 7/8 DLD PIN

2шт.

557109R1

WASHER

17/64 X 1/2 X 16 GA WASHER

4шт.

4

634106R11

SUPPORT W/PIVOT, engine cover RH, combine Serial no. 950 & below

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 X 1 MACH BOLT

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 NUT

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

633277R11

COVER W/STRAP, engine, combine Serial no. 950 & below

1шт.

5

654574R11

COVER W/STRAP, engine, combine Serial no., Serial Range: 951-1470

1шт.

5

936496R1

COVER, engine, combine Serial no. 1471 & above

1шт.

6

634100R91

SUPPORT W/PIVOT, engine cover LH, combine Serial no. 950 & below

1шт.

7

634107R1

POST, engine cover

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

1шт.

8

633269R1

SEAL, engine hinge, grain tank, combine Serial no. 1470 & below

1шт.

8

654940R1

SEAL

engine core hinge, grain tank, combine Serial no. 1471 & above

1шт.

109084

NUT,1/4"-20, G5

14шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD SCREW

14шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

14шт.

136661H

WASHER

17/64 X 1 X 16 GA WASHER

4шт.

9

634126R1

STIFFENER, engine cover seal, grain tank, combine Serial no. 1470 & below

2шт.

9

654941R1

STIFFENER, engine cover seal, grain tank, combine Serial no. 1471 & above

2шт.

10

633270R1

ROD, engine cover hinge

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

557264R1

WASHER

11/32 X 3/4 X 11 GA WASHER

4шт.

11

634108R1

SUPPORT, engine cover hinge, RH

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

U13039

SPACER

engine cover hinge rod

1шт.

13

654573R11

SUPPORT W/LATCH ASSY, engine cover RH rear, Includes ref no. 14, combine Serial no. 951 & above

1шт.

14

353443R91

LATCH ASSY.

LATCH ASSY, combine Serial no. 951 & above

2шт.

135753

3/16 X 7/16 OV-HD RIVET

4шт.

15

654570R91

SUPPORT W/LATCH ASSY, engine cover LH, Includes ref no. 14, combine Serial no. 951 & above

1шт.

1001181R3

PRODUCT GRAPHIC, air cleaner instructions, combine Serial no. 2430 & below

1шт.

2752906R1

PRODUCT GRAPHIC

dry air cleaner instrustions decal, combine Serial no. 2431 & above

1шт.

2750243R2

PRODUCT GRAPHIC, engine shut-off instructions

1шт.

2752059R2

PRODUCT GRAPHIC, final fuel filter instructions

1шт.

2750771R1

PRODUCT GRAPHIC, oil filter instructions

1шт.

22752055R3

PRODUCT GRAPHIC, primary fuel filter instructions

1шт.

1000967R2

PRODUCT GRAPHIC, water trap instructions

1шт.

2751808R1

PRODUCT GRAPHIC

warning decal, For red vehicle

1шт.

332652R91

GASKET KIT

GASKET SET, crankcase, package assorted, Consists of

1шт.

369981R1

GASKET

breather pipe flange, package assorted

1шт.

278268R1

GASKET

crankcase front cover, package assorted

1шт.

278265R1

GASKET

crankcase front plate, package assorted

1шт.

369984R1

GASKET

crankcase oil pan, package assorted

1шт.

278347R1

GASKET

injection pump adaptor, package assorted

1шт.

278270R1

GASKET

injection pump gear cover, package assorted

1шт.

349039R1

GASKET

lubricating oil filter base, package assorted

1шт.

601790C1

GASKET

lubricating oil filter base, package assorted

1шт.

3405H

GASKET

lubricating oil pressure relief valve plug, package assorted

1шт.

349038R1

GASKET

oil cooler manifold, package assorted

1шт.

304854T1

GASKET, oil filter case, package assorted

1шт.

320273R91

GASKET

PKG, oil filter center tube, package assorted

1шт.

3405H

GASKET

oil pan drain plug, package assorted

1шт.

353936R2

GASKET

oil pan shaft support, package assorted

1шт.

69607R1

GASKET

oil pump body, package assorted

1шт.

304720R1

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

pump adaptor, package assorted gasket

1шт.

369982R1

GASKET

push rod cover, package assorted

1шт.

251403R1

GASKET

relief valve plug, package assorted

1шт.

69676R1

GASKET

water pump, package assorted

1шт.

69674R1

GASKET

water pump plate, package assorted

1шт.

51527DC

GASKET

water trap, package assorted

1шт.

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

oil cooler to manifold, package assorted gasket

2шт.

310665R1

PLUG

rear bearing cap filler, package assorted

2шт.

310446R95

GASKET KIT

GASKET SET, valve grinding, package assorted, Consists of

1шт.

601509C1

GASKET

cylinder head, package assorted

1шт.

278314R1

MANIFOLD GASKET

exhaust manifold center, package assorted

2шт.

278313R2

GASKET

exhaust manifold ends, package assorted

2шт.

305804R1

MANIFOLD GASKET

intake manifold, package assorted

1шт.

278280R1

GASKET

thermostat housing, package assorted

1шт.

278308R1

GASKET

valve cover, package assorted

1шт.

446210

WASHER

valve cover, package assorted gasket

4шт.
