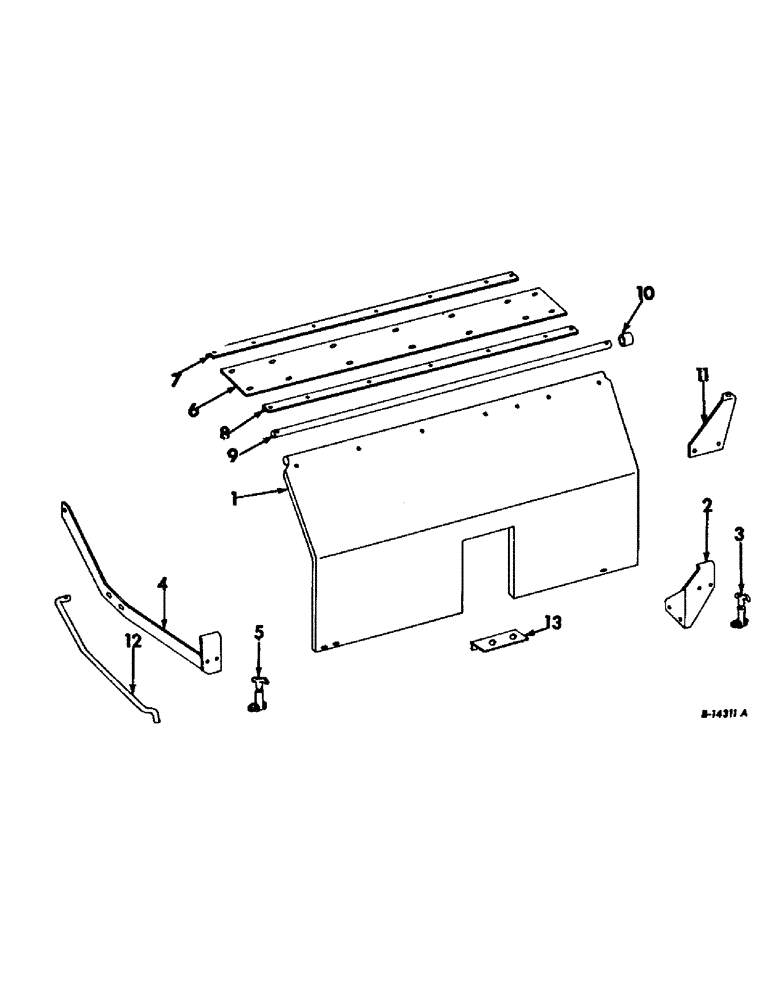

Запчасти Case IH 503 (417) - D-301 ENGINE 3-13/16 X 4.390, ENGINE COVER, LATCH AND SUPPORTS, COMBINE SERIAL NO. 2431 AND ABOVE (10) - ENGINE

1

939738R91

COVER ASSY, engine

1шт.

2

939765R11

LATCH ASSY, engine cover right rear, Includes ref. no. 3

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 X 1 MACH BOLT

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

353443R91

LATCH ASSY.

LATCH ASSY

1шт.

104067

RIVET,But Hd, 3/16" x 1/2"

3/16 x 1/2 button-hd

2шт.

4

654570R91

SUPPORT ASSY, engine cover left, Includes ref. no. 5

1шт.

5

353443R91

LATCH ASSY.

LATCH ASSY

1шт.

104067

RIVET,But Hd, 3/16" x 1/2"

3/16 x 1/2 button-hd

2шт.

6

939528R1

SEAL, engine cover

1шт.

109084

NUT,1/4"-20, G5

14шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 X 3/4 SLT-RD-HD MACH SCREW

14шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

14шт.

136661H

WASHER

17/64 X 1 X 16 GA WASHER

14шт.

7

939525R1

ANGLE, engine cover seal left

1шт.

8

939526R1

ANGLE, engine cover seal right

1шт.

9

939521R1

ROD, engine cover hinge

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

557264R1

WASHER

11/32 X 3/4 X 11 GA WASHER

4шт.

10

23323H

SPACER,1/4" Pipe x 1/2"

engine cover hinge

1шт.

11

939761R1

SUPPORT, engine cover hinge right

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

634107R1

POST, engine cover

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

1шт.

13

153862C1

ANGLE, engine cover support

1шт.
