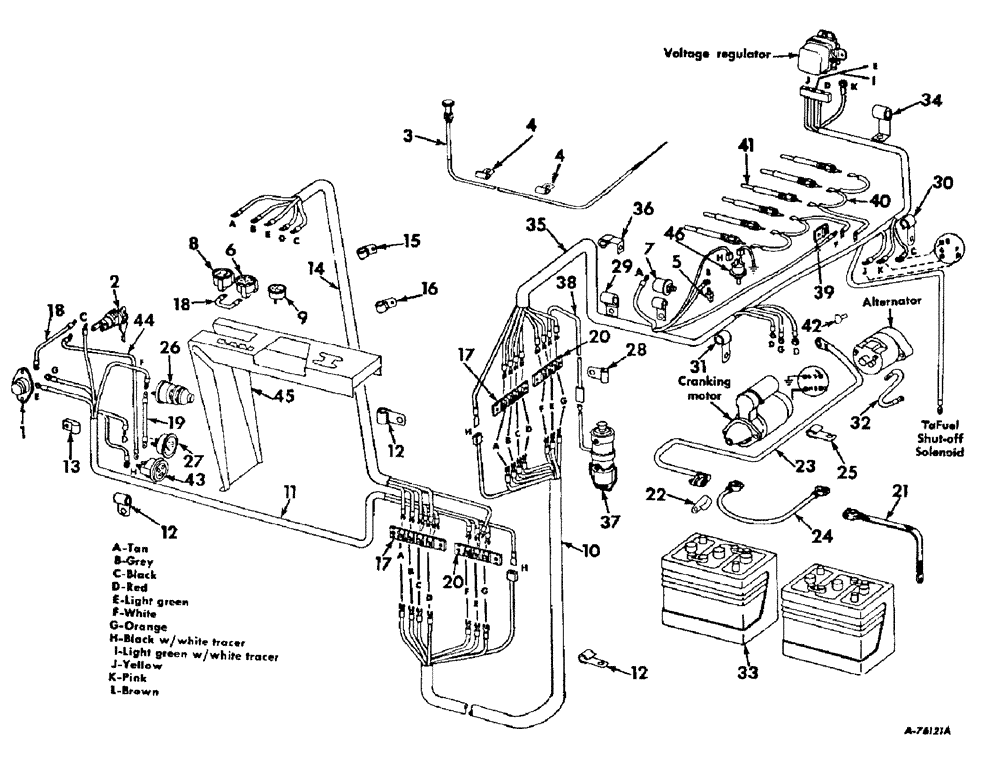

Запчасти Case IH 503 (415) - D-301 ENGINE 3-13/16 X 4.390, ELECTRICAL SYSTEM, WIRING DIAGRAM, COMBINE SERIAL NO. 3251 AND ABOVE (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
366317R92
IGNITION SWITCH
SWITCH ASSEMBLY, push button starting
1шт.
100751
SCREW,Slotted Rd Hd, #8-32 x 1/2"
8-32 x 1/2 slt-rd-hd mach
1шт.
132903
ADAPTER
SCREW, 10-32 x 7/16 c-z slt-rd-hd mach
2шт.
120611
NUT,#10 - 32
10-32 x 7/16 C-Z sq mach screw
2шт.
120217
LOCK WASHER,#10
2шт.
615226R1
WASHER
1-1/32 x 1-1/2 x 2 ga
2шт.
2
365522R91
IGNITION SWITCH
key type
1шт.
365502R1
NUT
switch mounting
1шт.
112871
SPARE PART 6-32 x 5/16 slt-rd-hd mach
2шт.
NLS
NO LONGER SERVICED
1шт.
118872
DECAL
no. 6 light cable
2шт.
3
588063R91
CABLE
fuel shut-off
1шт.
4
362127R1
CLIP
shut-off cable
2шт.
5
665016R91
TEMPERATURE SENDER
water temperature sending
1шт.
221-89
REDUCER,Hex, 1/2" x 3/8" NPT
Bushing
1шт.
6
939262R91
GAUGE ASSY.
water temperature
1шт.
7
665014R91
SENDER UNIT
oil presure sending
1шт.
8
939263R91
GAUGE ASSY.
oil presure
1шт.
9
154818C91
GAUGE ASSY.
charge indicator, Optional with 264431R91
1шт.
9
264431R91
AMMETER
GAUGE ASSY, charge indicator, optional with 154818C91
1шт.
10
154857C91
SPARE PART cable, serial no., 6287 and above
1шт.
10
161290C91
SPARE PART cable, serial no., 6288 and above
1шт.
11
154856C91
SPARE PART stater and starter switch cable, serial no. 6287 and below
1шт.
11
161292C91
SPARE PART stater and starter switch cable, serial no. 6288 and below
1шт.
12
362120R1
CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type
cable harness
10шт.
13
589980R2
CLIP
starter switch cable harness
1шт.
113957
SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"
1/4-20 x 3/4 slt-rd-hd mach
1шт.
109084
NUT,1/4"-20, G5
1шт.
1093319
WASHER, 1/4 med. lock
1шт.
14
154855C91
SPARE PART instrument guage cable
1шт.
15
140582
CLAMP
CLIP, cable harness
1шт.
15
164788C1
SPARE PART cable harness
1шт.
16
140571
CLIP
cable harness
1шт.
16
164789C1
SPARE PART cable harness
1шт.
17
565481R91
BAR
BLOCK ASSY, four terminal junction
2шт.
100779
BOLT,Rd Hd, #12 - 24 x 3/4"
SCREW, 12-24 x 3/4 slt-rd-hd mach
4шт.
103102
NUT, 12-24 sq. mach screw
4шт.
106498
LOCK WASHER,#12
4шт.
18
565553R91
SPARE PART switch and guage
2шт.
19
588052R91
SPARE PART glow plug meter to glow plug switch
1шт.
20
155219C91
SPARE PART three terminal junction
2шт.
100779
BOLT,Rd Hd, #12 - 24 x 3/4"
SCREW, 12-24 x 3/4 slt-rd-hd mach
4шт.
103102
NUT, 12-24 sq. mach screw
4шт.
106498
LOCK WASHER,#12
4шт.
21
629029R92
NEG BATTERY CABLE
, Serial Range: battery-ground
1шт.
179856
BOLT,Hex, 7/16" - 14 x 3/4", Gr 5
SCREW, 7/16-14 x 3/4 hex-hd cap
1шт.
103322
LOCK WASHER,7/16"
1шт.
61252H
WASHER
15/32 x 3/4 x 11 ga
1шт.
22
140571
CLIP
closed
1шт.
17411R1
BOLT,Hex, 5/16"-18 X 3/4", G2
BOLT, 5/16-18 x 3/4 hex-hd
1шт.
9635082
NUT,5/16" - 18, Gr 5
1шт.
23
632106R91
CABLE
battery to cranking motor
1шт.
24
259171R91
CABLE
, Serial Range: battery-battery
1шт.
25
362120R1
CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type
battery cable
1шт.
17404R1
BOLT,Hex, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16-18 x 1/2 hex-hd
1шт.
9635082
NUT,5/16" - 18, Gr 5
1шт.
26
627670C1
IGNITION SWITCH
glow plug
1шт.
27
370380R92
METER
glow plug
1шт.
28
362127R1
CLIP
fuel pump cable
3шт.
29
362123R1
CLIP
main cable harness, on fuel filter bracket upper LH mounting screw
1шт.
29
362123R1
CLIP
main cable harness
1шт.
30
362120R1
CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type
main cable harness, on alternator adjustment screw & on front pate upper mounting screw
2шт.
31
384559R1
CLIP
main cable harness, on carnkcase oil pan RH side
2шт.
32
385006R91
SPARE PART, Serial Range: alternator-ground
1шт.
33
391546R1
BATTERy, Prestolite 2-A9Z 6-volt
2шт.
35
400138R1
HARNESS ASSY, main cable, will work for 393837R91
1шт.
36
358986R1
CABLE CLIP
main cable harness on upper LH tapped hole in rear of cylinder head
1шт.
37
306274R91
PUMP
PUMP ASSY, fuel, Steward Warner, For components see list of parts under details of fuel pump
1шт.
38
629826R91
SPARE PART fuel pump
1шт.
39
42915D
BLOCK
junction
1шт.
40
319965R91
HARNESS
glow plug cable
2шт.
41
304131R2
GLOW PLUG
PLUG, glow, optional with 343894R1 and 343977R1
6шт.
41
343894R1
GLOW PLUG
PLUG, glow, optional with 304131R2 and 343977R1
6шт.
41
343977R1
GLOW PLUG
optional with 304131R2 and 343894R1
6шт.
42
399470R1
BOOT
INSULATOR, terminal cover boot
1шт.
43
389871R91
GAUGE
air cleaner restriction
1шт.
44
161263C91
CABLE ASSY, air cleaner restriction
1шт.
45
SHROUD, see unit listed under operators lever shroud
1шт.
46
389682R91
SWITCH
electric air cleaner
1шт.
