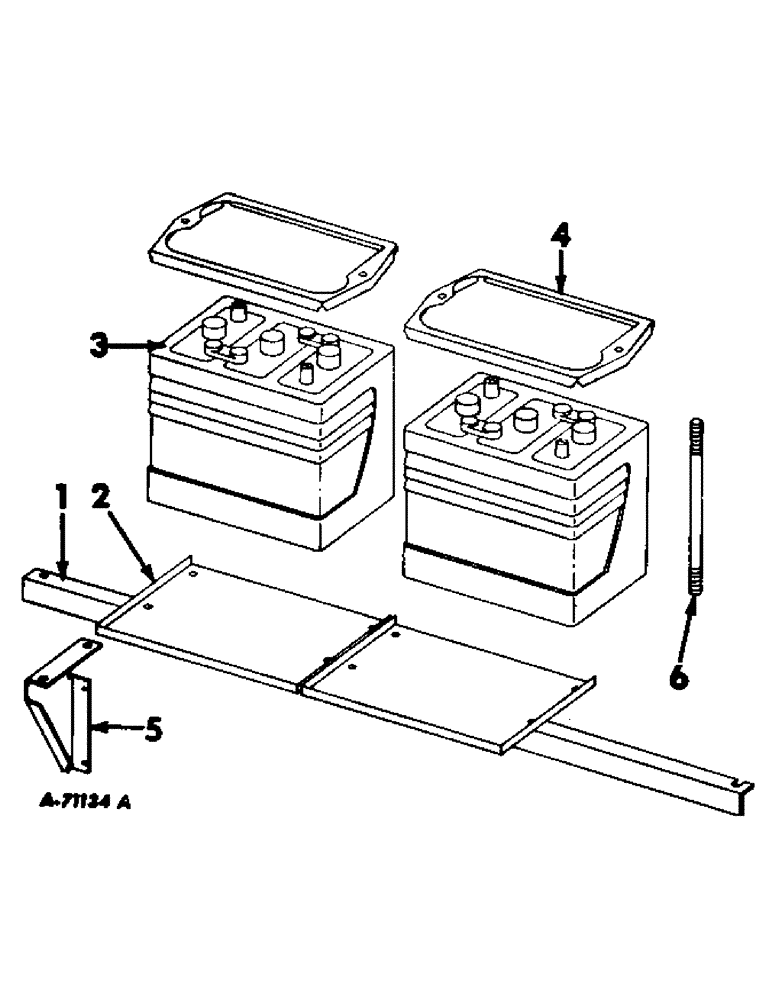

Запчасти Case IH 503 (414) - D-301 ENGINE 3-13/16 X 4.390, BATTERY, COVER AND SUPPORTS (10) - ENGINE

1

628593R1

ANGLE, support battery, combine Serial no. 2430 & below

1шт.

1

939762R91

ANGLE ASSY, battery support, Not hydrostatic, Serial no. 2431 and above

1шт.

17413R1

BOLT,Hex, 7/16"-14 x 3/4", G2, Full Thd

7/16-14 x 3/4 hex-hd mach

1шт.

NUT, 7/16-14 hex.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

2

155866C1

CARRIER, battery, Not hydrostatic

2шт.

2

150934C1

CHANNEL, battery support, hydrostatic

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

8шт.

102635

NUT,3/8"-16, G5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

3

391546R1

BATTERY, Prestolite 2-A9Z, 6 volt

2шт.

4

319329R1

CLAMP, battery hold-down

2шт.

18012R1

SCREW,Hex, 5/16" - 18 x 9 1/2"

5/16 X 9-1/2 MACH BOLT

4шт.

935736R1

NUT, WING

11/32 X 3/4 X 16 GA WASHER

4шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

4шт.

5

629625R1

BRACKET, battery support

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 X 1 MACH BOLT

2шт.

111640

1/4 X 3/4 TAPPING SCREW

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

6

NOT USED IN THIS APPLICATION

1шт.
