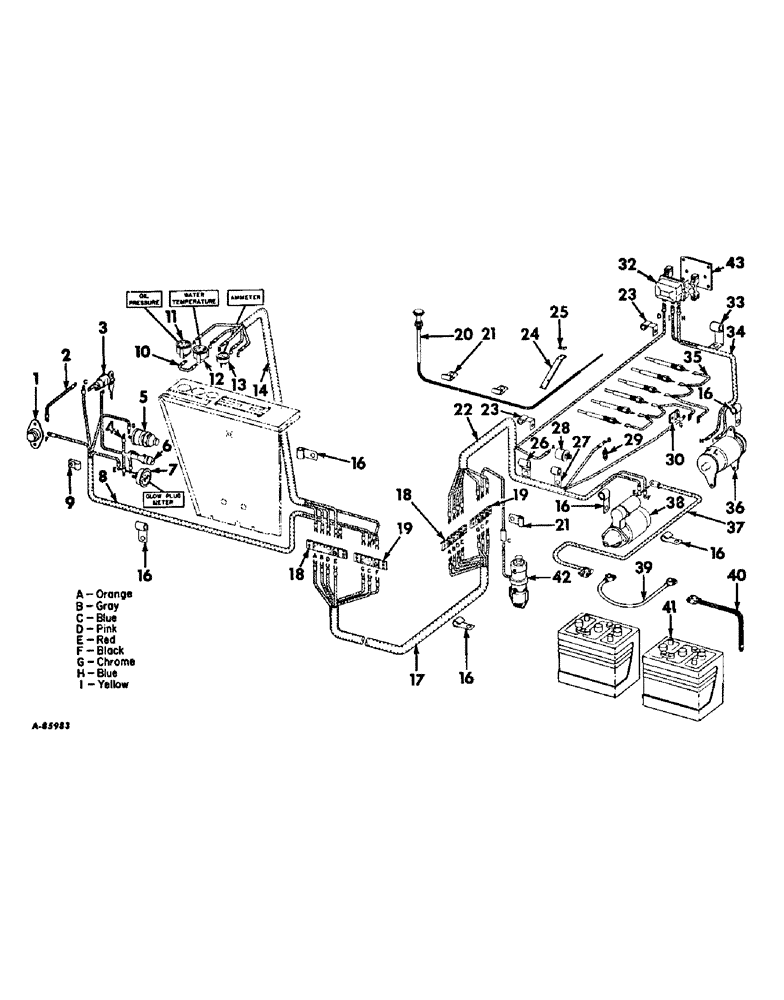

Запчасти Case IH 503 (413) - D-301 ENGINE 3-13/16 X 4.390, ELECTRICAL SYSTEM, WIRING DIAGRAM, COMBINE SERIAL NO. 3250 AND BELOW (10) - ENGINE

1

366317R91

IGNITION SWITCH

SWITCH ASSY, push button starting

1шт.

120611

NUT,#10 - 32

NO. 10-32NF SQ NUT

2шт.

100751

SCREW,Slotted Rd Hd, #8-32 x 1/2"

NO. 8 X 1/2 SLT-RD-HD SCREW

1шт.

132903

ADAPTER

NO. 10-32NF X 7/16 SLT-RD-HD CAD-PLTD SCREW

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

615226R1

WASHER

1-1/32 x 1-1/2 x 22 ga

2шт.

2

56553R91

CABLE ASSY, ignition switch to starter switch

1шт.

3

365522R91

IGNITION SWITCH

SWITCH ASSY, ignition, key type

1шт.

365502R1

NUT

switch mounting

1шт.

125793

LOCK, Int Tooth, 13/16"

1шт.

112871

NO. 6 X 5/16 SLT-RD-HD SCREW

1шт.

118872

DECAL

NO. 6 LOCK WASHER

1шт.

4

588052R91

CABLE ASSY, glow plug meter to glow plug switch

1шт.

5

373611R91

IGNITION SWITCH

SWITCH, glow plug, less cap

1шт.

373612R1

CAP

glow plug switch, red

1шт.

6

362669R91

HOUSING

ASSY, fuse, 30 amp

1шт.

223-31

FUSE,10 Amp, Type 3AG

cartridge type AGC 30

1шт.

1007760BS

PULLEY

NO. 12 X 3/8 SLT-RD-HD SCREW

1шт.

372632A1

SPRING

NO. 12 NUT

1шт.

106498

LOCK WASHER,#12

Washer, Lock, #12

1шт.

7

370380R91

METER

ASSY, glow plug

1шт.

8

632108R91

HARNESS ASSY, starter and starter switch

1шт.

9

140582

CLAMP

CLIP, closed

1шт.

9

589980R2

CLIP

starter switch cable harness

1шт.

9

140571

CLIP

cable

1шт.

109084

NUT,1/4"-20, G5

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD SCREW

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

565553R91

CABLE ASSY, oil pressure gauge to water temperature gauge

1шт.

11

629031R91

GAUGE

ASSY, oil pressure, combine Serial no. 2430 & below

1шт.

11

939263R91

GAUGE ASSY.

GAUGE ASSY, oil pressure, combine Serial no. 2431 & above

1шт.

12

629032R91

GAUGE

ASSY, water temperature, combine Serial no. 2430 & below

1шт.

12

939262R91

GAUGE ASSY.

GAUGE ASSY, water temperature, combine Serial no. 2431 & above

1шт.

13

269467R92

INDICATOR

GAUGE ASSY, charge indicator

1шт.

14

632107R91

HARNESS ASSY, instrument gague cable

1шт.

15

NOT USED IN THIS APPLICATION

1шт.

16

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, open

1шт.

17470R1

BOLT

5/16-18 x 1/2 hex-hd mach

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

17

632109R91

HARNESS ASSY, cable

1шт.

18

565481R91

BAR

BLOCK ASSY, four terminal junction

3шт.

103102

NO. 12 SQ-NUT

4шт.

100779

BOLT,Rd Hd, #12 - 24 x 3/4"

NO. 12 X 3/4 SLT-RD-HD SCREW

4шт.

106498

LOCK WASHER,#12

Washer, Lock, #12

4шт.

19

300559R91

BLOCK

ASSY, three terminal junction

2шт.

103102

NO. 12 SQ-NUT

4шт.

100779

BOLT,Rd Hd, #12 - 24 x 3/4"

NO. 12 X 3/4 SLT-RD-HD SCREW

3шт.

100781

NO. 12 X 1 SLT-RD-HD SCREW

1шт.

106498

LOCK WASHER,#12

Washer, Lock, #12

4шт.

20

588063R91

CABLE

ASSY, fuel shut-off

1шт.

21

362127R1

CLIP

choke and fuel pump cable

1шт.

22

380478R91

HARNESS ASSY, main cable

1шт.

23

370535R1

CLIP

cable harness, on push rod cover screw

2шт.

24

312588R11

BRACKET ASSY, engine shut-off wire

1шт.

25

275965R1

CLAMP

shut-off wire bracket

1шт.

26

358986R1

CABLE CLIP

CLIP, cable harness, on rear of cylinder head upper LH tapped hole

1шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

27

362123R1

CLIP

cable harness, on fuel filter bracket upper LH mounting bolt

1шт.

28

665014R91

SENDER UNIT

UNIT ASSY, oil pressure sending

1шт.

29

665016R91

TEMPERATURE SENDER

UNIT ASSY, sending water temperature

1шт.

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

1/2 X 3/8 REDUCING BUSHING

1шт.

30

42915D

BLOCK

junction

1шт.

31

304131R2

GLOW PLUG

PLUG, glow, Optional with 343894R1 and 343977R1

6шт.

31

343894R1

GLOW PLUG

PLUG, glow, Optional with 304131R2 and 343977R1

6шт.

31

343977R1

GLOW PLUG

PLUG, glow, Optional with 304131R2 and 343894R1

6шт.

32

1119270E

REGULATOR ASSY, voltage, For components see list of parts under details of voltage regulator, also order plate, 393454R1 & attaching hardware

1шт.

33

370383R1

CLIP

cable harness, on RH water housing mounting bolt

1шт.

34

380479R91

HARNESS ASSY, generator cable

1шт.

35

319965R91

HARNESS

ASSY, glow plug cable

2шт.

36

1100425

GENERATOR

ASSY, For components see list of parts under details of generator

1шт.

37

632106R91

CABLE

ASSY, battery to starting motor

1шт.

38

1113193

MOTOR HOUSING

MOTOR ASSY, cranking, For components see list of parts under details of cranking motor

1шт.

39

279171R91

CABLE ASSY, Serial Range: battery-battery

1шт.

40

629029R91

CABLE

ASSY, Serial Range: battery-ground

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, 7/16-14 x 3/4 hex-hd cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

61252H

WASHER

15/32 x 3/4 x 11 ga.

1шт.

41

370424R91

BATTERY, Prestolite H2-135, 6 volt

2шт.

42

306274R91

PUMP

ASSY, fuel

1шт.

43

393454R1

PLATE, voltage regulator mounting

1шт.

109084

NUT,1/4"-20, G5

4шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
