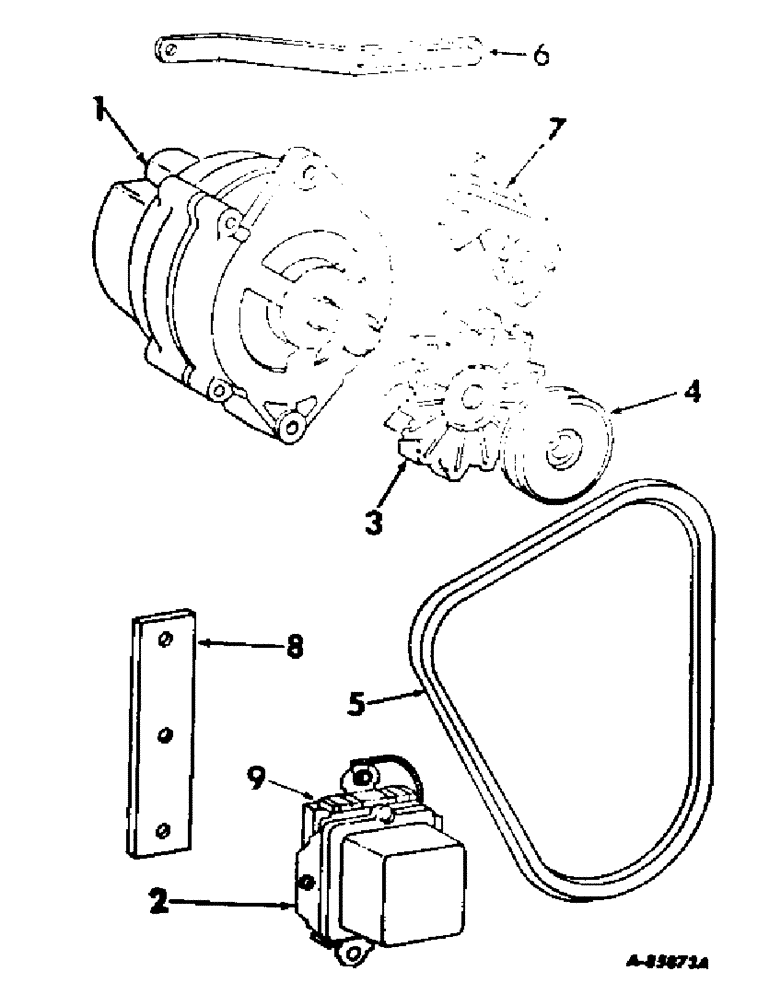

Запчасти Case IH 503 (407) - D-301 ENGINE 3-13/16 X 4.390, ALTERNATOR GENERATOR, VOLTAGE REGULATOR AND CONNECTIONS (10) - ENGINE

1

1100750

SPARE PART ALTERNATOR GENERATOR ASSY, 393820R91, Order 1100791, alternator generator assy, 397091R91, For components see list of parts under details of alternator generator

1шт.

1

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

1

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103806A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 60 ampere

1шт.

1

103806A1C

CORE-ALTERNATOR

Return Number

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

225-14112

NUT,#12-24

12-24 C-Z hex. mach screw

1шт.

102635

NUT,3/8"-16, G5

NUT, 3/8"-16, G5

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT, Hex, 3/8"-16 x 3", G5

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

121744

ANGLE

Washer, Lock, #12

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

1

1100791

GENERATOR

ALTERNATOR GENERATOR ASSY, 397091R91, For components see list of parts under details of alternator generator

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

121743

CHAIN,#12 - 24

12-24 C-Z hex. mach screw

1шт.

120377

NUT,3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

433115

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

SCREW, 3/8-16 x 4-1/4 C-Z hex-hd cap

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

1119513

VOLTAGE REGULATOR

REGULATOR ASSY, voltage, 336410R91, Composed of

1шт.

1958151

COVER

1шт.

1962733

SCREW

SCREW, cover

2шт.

1119507

GOVERNOR

REGULATOR

1шт.

1965398

SHOCK BRACKET PACKAGE

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT, 1/4-20 whiz lock

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

3

221425R1

FAN

FAN, alternator-generator

1шт.

4

1961291

PULLEY

PULLEY, alternator-generator

1шт.

5

393415R1

BELT

BELT, Alternator & water pump

1шт.

6

BRACE, alternator-generator

1шт.

*

NUT, 5/16-18 hex.

1шт.

*

SCREW, 5/16-18 x 1-1/8 hex-hd cap

1шт.

*

WASHER, 5/16 med lock

1шт.

*

WASHER, 11/32 x 3/4 x 11 ga, Serial Range: Refer-eng-5

1шт.

7

BRACKET ASSY, alternator generator mounting

1шт.

*

SCREW, 5/16-18 x 1-1/8 hex-hd cap

1шт.

*

SCREW, 1/2-13 x 1 hex-hd cap

1шт.

*

WASHER, 5/16 med lock

1шт.

*

WASHER, 1/2 med lock, Refer to eng-5

1шт.

8

393841R1

SPARE PART BRACKET, voltage regulator mounting

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT, 5/16-18 whiz lock

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

173127

SPARE PART WASHER, 5/16 int-ext tooth lock Ext-Int Tooth, 5/16"

1шт.

9

1962629

BRACKET

BRACKET ASSY, shock mount

1шт.

384993R1

SPACER

SPACER, alternator-generator

1шт.

21496R1

WASHER

WASHER, 11/32 x 3/4 x 11 ga C-Z

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

SCREW, 5/16-18 x 1-1/8 C-Z hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
