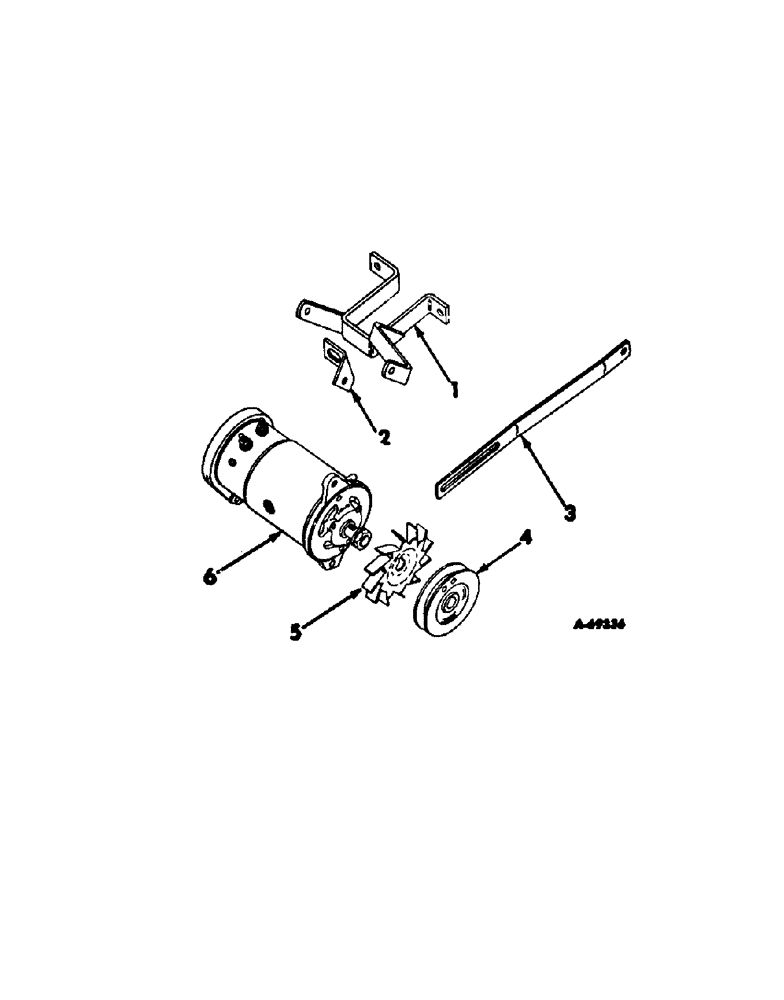

Запчасти Case IH 503 (405) - D-301 ENGINE 3-13/16 X 4.390, GENERATOR AND CONNECTIONS, COMBINE SERIAL NO. 3250 AND BELOW (10) - ENGINE

1

BRACKET ASSY, generator

1шт.

7/16 X 1 CAP SCREW

2шт.

7/16 LOCK WASHER, Serial Range: Refer-eng-5

2шт.

2

STIFFENER, generator bracket

1шт.

1/2 X 1 CAP SCREW

1шт.

1/2 LOCK WASHER, Serial Range: Refer-eng-5

1шт.

3

BRACE, generator

1шт.

5/16 NUT

1шт.

5/16 X 1 CAP SCREW

1шт.

5/16 LOCK WASHER

1шт.

GENERATOR BRACE WASHER, Refer to eng-5

1шт.

4

304446R1

PULLEY, generator, Optional with 378349R1

1шт.

4

378349R1

PULLEY

generator, Optional with 304446R1

1шт.

5

216489R1

FAN

generator

1шт.

6

1100425

GENERATOR

ASSY, For components see list of parts under details of generator, 379391R91

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 NUT

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

1шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.
