(405[1]) - D-301 ENGINE 3-13/16 X 4.390, VOLTAGE REGULATOR, DELCO REMY, COMBINE SERIAL NO. 3250 AND BELOW

Запчасти Case IH 503 (405[1]) - D-301 ENGINE 3-13/16 X 4.390, VOLTAGE REGULATOR, DELCO REMY, COMBINE SERIAL NO. 3250 AND BELOW (10) - ENGINE

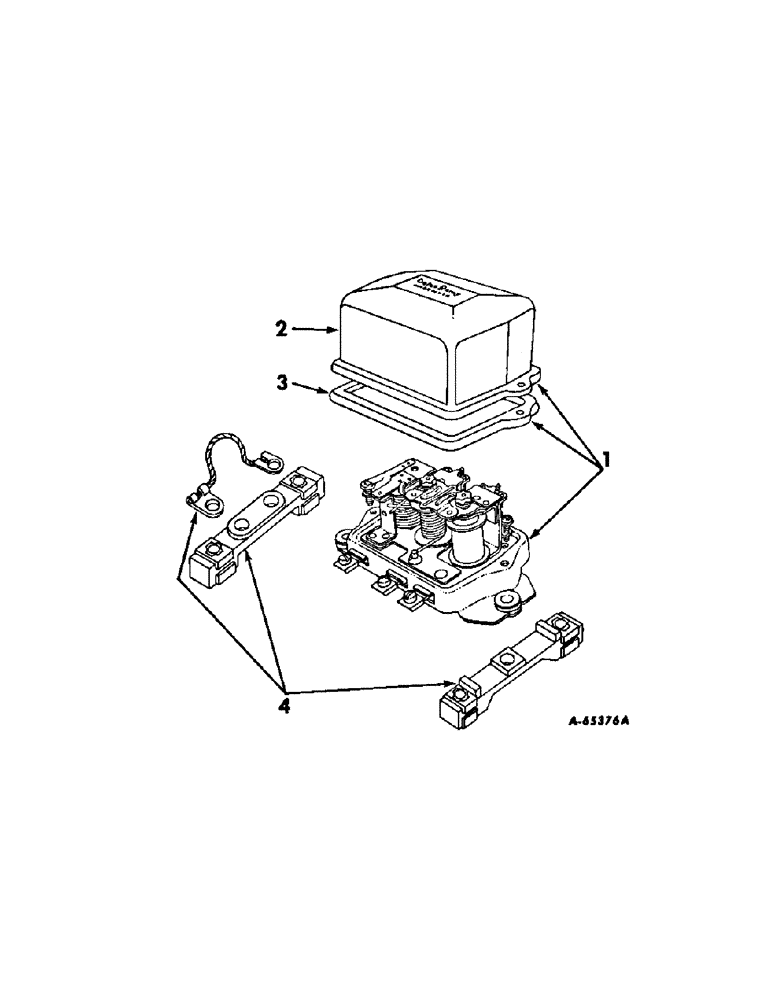

Схема запчастей Case IH 503 - (405[1]) - D-301 ENGINE 3-13/16 X 4.390, VOLTAGE REGULATOR, DELCO REMY, COMBINE SERIAL NO. 3250 AND BELOW (10) - ENGINE
1
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1119270E

REGULATOR ASSY, voltage

1шт.

109084

NUT,1/4"-20, G5

4шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

1

1119000

REGULATOR

ASSY, voltage

1шт.

2

1931886

COVER

1шт.

3

1931887

GASKET, cover

1шт.

4

1910966

ANCHOR

SHOCK MOUNT PACKAGE

1шт.
