(404) - D-301 ENGINE 3-13/16 X 4.390, FAN BLADE AND BELTS, D-301 5680 UP

Запчасти Case IH 503 (404) - D-301 ENGINE 3-13/16 X 4.390, FAN BLADE AND BELTS, D-301 5680 UP (10) - ENGINE

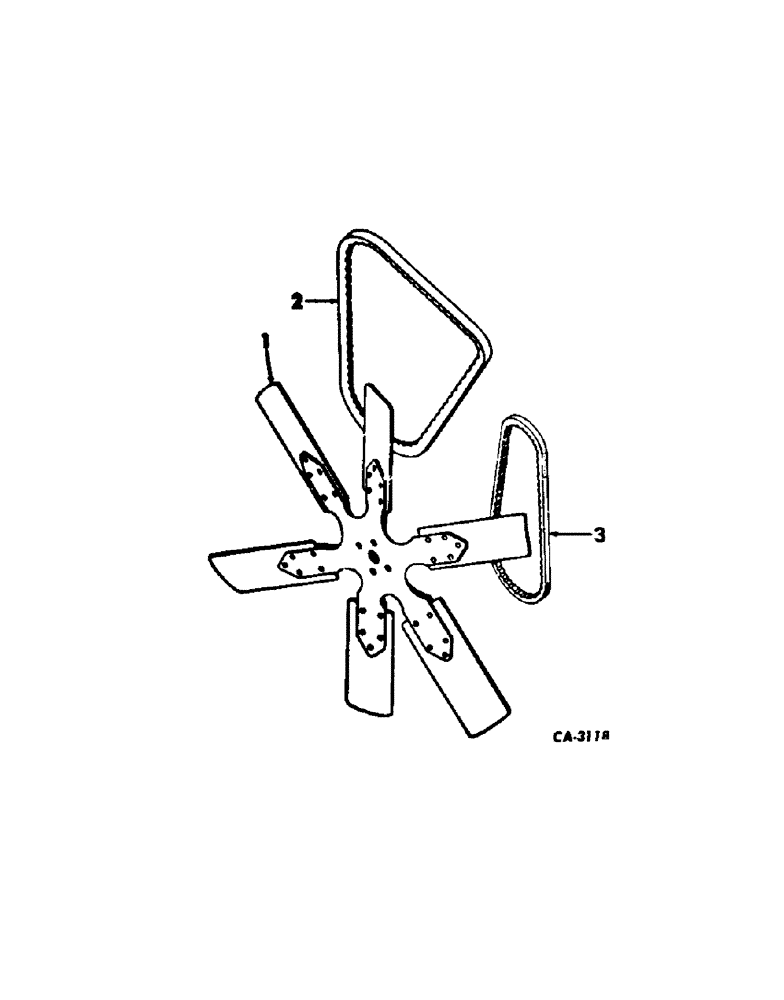

Схема запчастей Case IH 503 - (404) - D-301 ENGINE 3-13/16 X 4.390, FAN BLADE AND BELTS, D-301 5680 UP (10) - ENGINE
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

388023R91

BLADE ASSY, fan

1шт.

181339

BOLT,Hex, 5/16" - 24 x 1", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

394013R1

V-BELT,0.50" W x 53.00" L

Water pump and generator 0.50" W x 53.00" L

1шт.

3

388024R1

V-BELT,0.66" W x 35.24" L

Fan 0.66" W x 35.24" L

1шт.

3

152587R1

BELT, fan, combines w/air conditioning or hydro-static drive

1шт.
