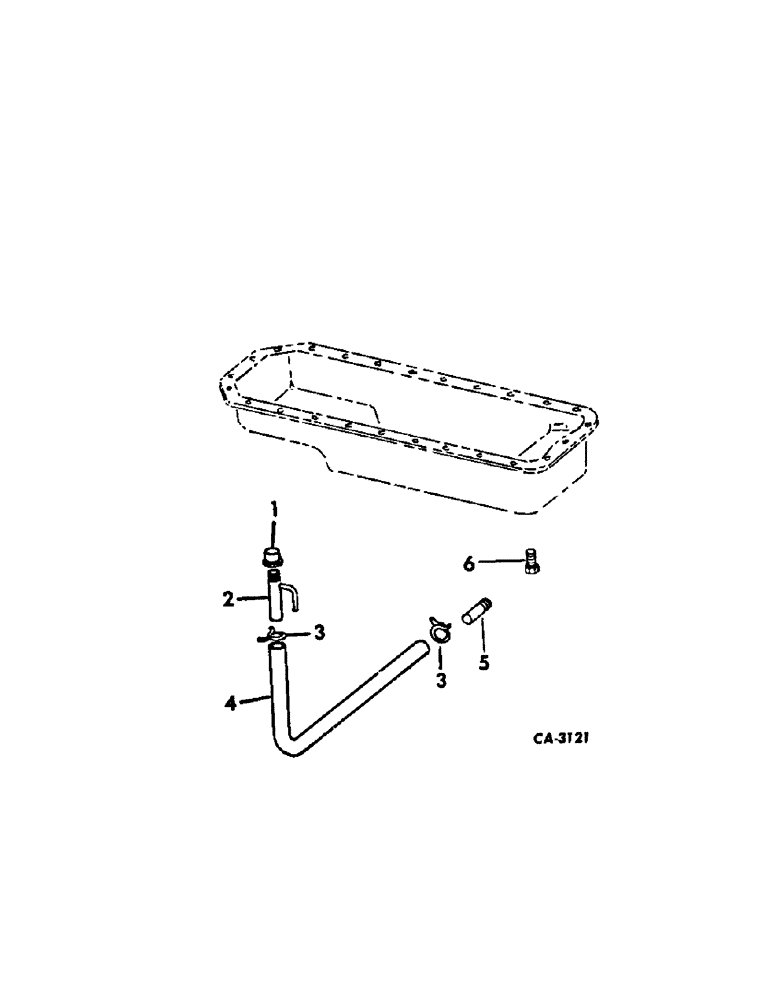

Запчасти Case IH 503 (404[1]) - D-301 ENGINE 3-13/16 X 4.390, CRANKCASE OIL PAN (10) - ENGINE

601380C12

PAN ASSY, crankcase oil

1шт.

3405H

GASKET

oil pan drain plug

1шт.

445096

PLUG

oil pan drain

1шт.

1

119101

CAP,1/2" NPT

oil drain pipe

1шт.

2

628086R91

PIPE ASSY, oil drain

1шт.

3

628091R1

CLAMP, oil drain hose

2шт.

4

629089R91

HOSE, oil drain

1шт.

5

628087R1

PIPE, oil pan drain

1шт.

6

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Oil pan Hex, 5/16"-18 x 3/4", G5, Full Thd

25шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

25шт.
