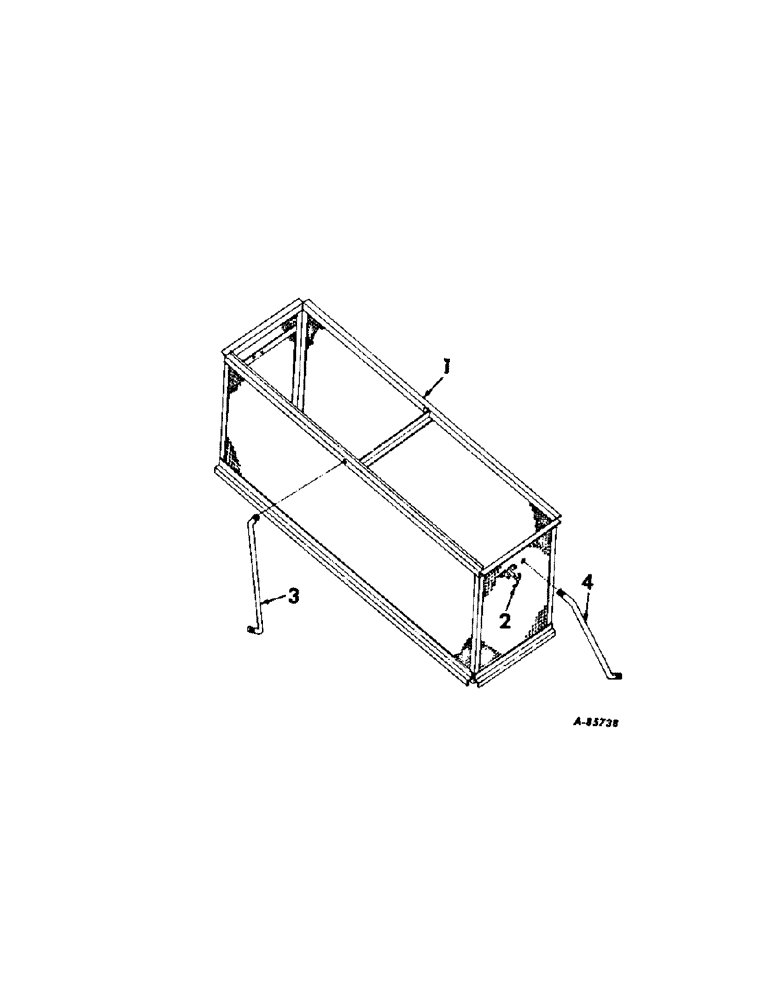

Запчасти Case IH 503 (398[1]) - D-301 ENGINE 3-13/16 X 4.390, AIR SCREEN EXTENSION, WITH PERFORATED SIDE, COMBINE S/N 2431 TO 3250 (10) - ENGINE

1

EXTENSION ASSY, air screen, serviced only as a machine attachment

1шт.

2

353443R91

LATCH ASSY.

LATCH ASSY, extension screen

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW, 10-24 x 1/2 C-Z slt-rd-hd mach

4шт.

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

WASHER, LOCK, #10

4шт.

3

392753R1

ROD, screen extension front brace

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120390

WASHER,1/2"

9/16 x 1-3/8 x 12 ga C-Z

2шт.

446494

WASHER, 9/16 x 1-7/8 x 12 ga C-Z

2шт.

4

393766R1

ROD, screen extension side brace

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120390

WASHER,1/2"

9/16 x 1-3/8 x 12 ga C-Z

2шт.

446494

WASHER, 9/16 x 1-7/8 x 12 ga C-Z

2шт.
