(390) - D-301 ENGINE 3-13/16 X 4.390, PRE-CLEANER, PRE-SCREENER

Запчасти Case IH 503 (390) - D-301 ENGINE 3-13/16 X 4.390, PRE-CLEANER, PRE-SCREENER (10) - ENGINE

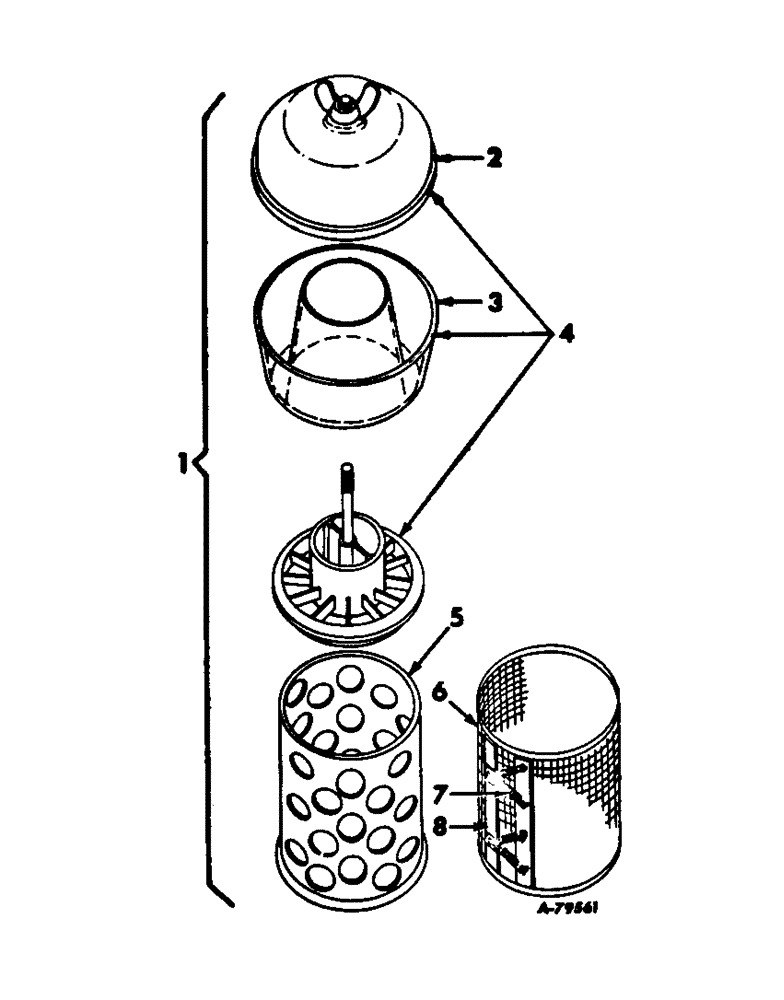

Схема запчастей Case IH 503 - (390) - D-301 ENGINE 3-13/16 X 4.390, PRE-CLEANER, PRE-SCREENER (10) - ENGINE
1
2
4
8
3
5
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

384397R91

CLEANER

PRE-CLEANER, pre-screener assy

1шт.

2

277376R91

COVER ASSY

pre-cleaner

1шт.

3

277377R1

FILTER BOWL

BODY, pre-cleaner

1шт.

4

277375R91

AIR PRE-CLEANER ASSY

SLEEVE ASSY, pre-cleaner

1шт.

5

384606R91

BODY, pre-screener

1шт.

6

384543R91

SCREEN

W/TWO CLIPS, 353758R1 and four springs, 353639R1 assy, pre-screener

1шт.

7

353639R1

VALVE SPRING

SPRING, screen lock tension

4шт.

8

353758R1

CLIP

screen lock tension spring

2шт.
