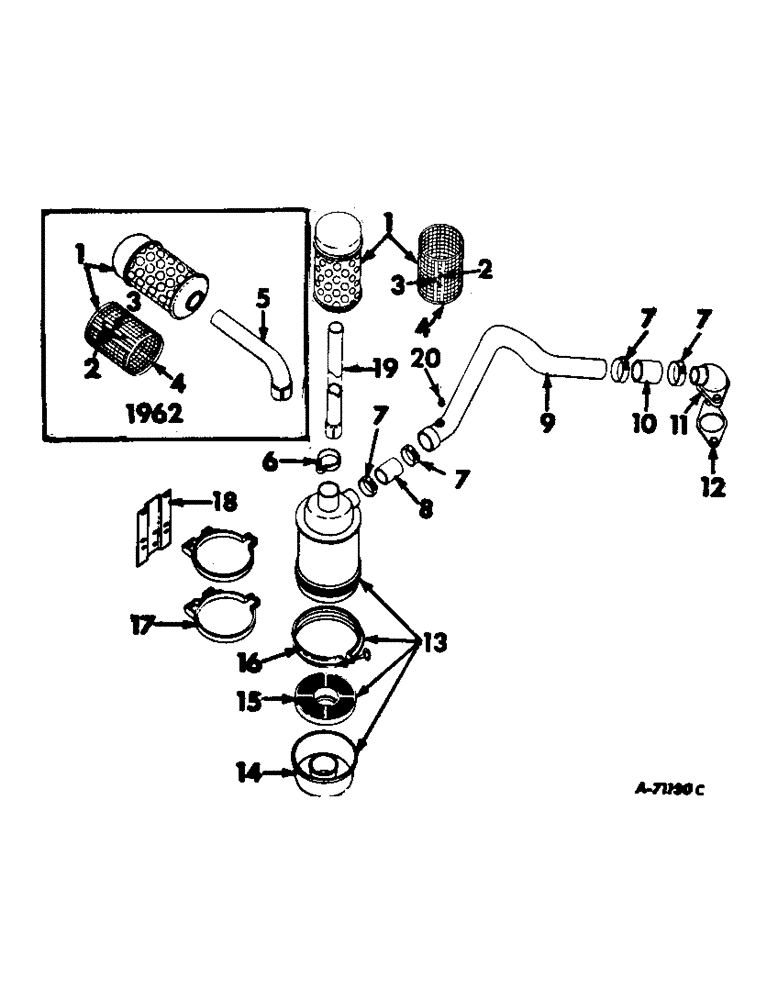

Запчасти Case IH 503 (388) - D-301 ENGINE 3-13/16 X 4.390, AIR CLEANER AND CONNECTIONS (10) - ENGINE

1

265515R91

PRECLEANER

PRE-SCREENER ASSY

1шт.

2

352639R1

SPRING, screen lock tension

2шт.

3

353758R1

CLIP

screen lock tension spring

1шт.

4

266003R91

SCREEN W/CLIP AND SPRING ASSY, pre-screener

1шт.

5

379973R1

PIPE, pre-screener, 1962, Combine serial no. 950 & below

1шт.

6

379974R91

CLAMP, pre-screener pipe

1шт.

7

397257R1

HOSE CLAMP,#52, 2.81/3.75 Type F Worm, W/liner

CLAMP, air cleaner pipe hose

4шт.

8

48918DA

HOSE

air cleaner rear

1шт.

9

397271R91

PIPE W/PLUG, air cleaner, Will work for 379976R1

1шт.

10

275340R2

HOSE, air cleaner pipe front

1шт.

11

379977R1

ELBOW, intake manifold

1шт.

17438R1

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 2

7/16 X 1-1/8 CAP SCREW

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

12

369497R2

GASKET

intake manifold elbow

1шт.

13

379967R91

CLEANER ASSY, air

1шт.

14

379968R91

CUP ASSY, oil

1шт.

15

379970R91

SCREEN ASSY, removable

1шт.

16

379969R91

CLAMP ASSY, oil cup retaining

1шт.

17

379971R91

BRACKET ASSY, air cleaner

2шт.

102635

NUT,3/8"-16, G5

4шт.

105606

NUT

3/8 SQ NUT

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

117309

3/8 X 1-1/4 FIL-HD MACH SCREW

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

18

316465R1

SUPPORT, air cleaner

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

19

383356R1

PIPE, pre-screener, Combine serial no., Serial Range: 951-2430

1шт.

20

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto sq-hd pipe

1шт.
