(387) - HORIZONTAL EXHAUST SYSTEM, COMBINE SERIAL NO. 2430 AND BELOW

Запчасти Case IH 503 (387) - HORIZONTAL EXHAUST SYSTEM, COMBINE SERIAL NO. 2430 AND BELOW (10) - ENGINE

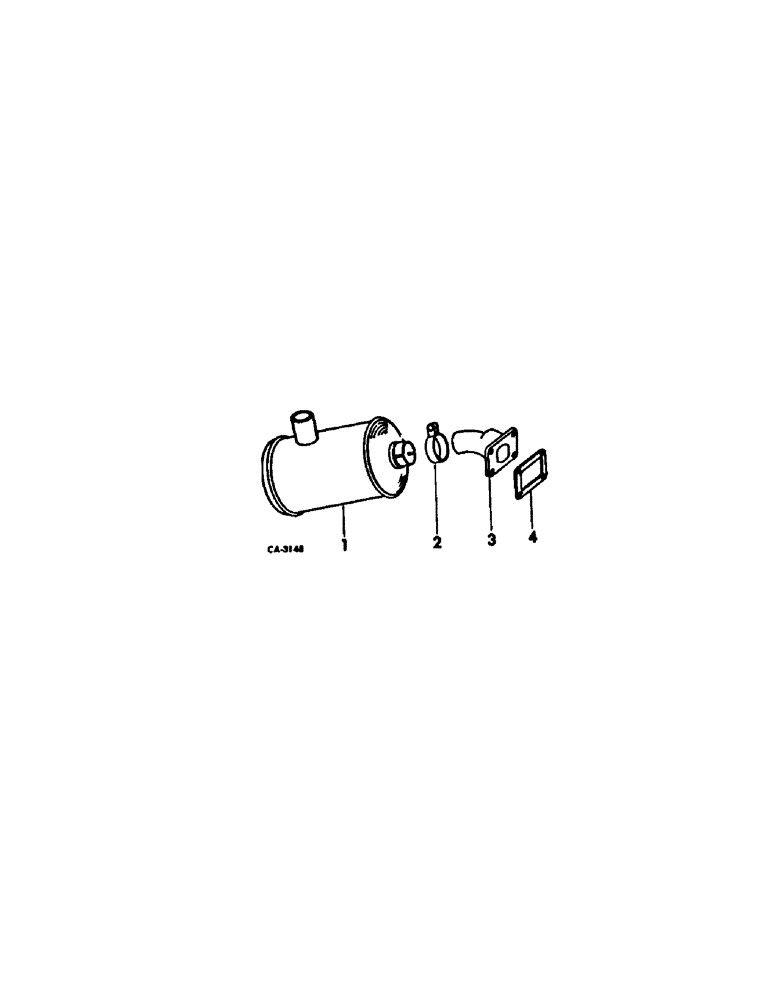

Схема запчастей Case IH 503 - (387) - HORIZONTAL EXHAUST SYSTEM, COMBINE SERIAL NO. 2430 AND BELOW (10) - ENGINE
2
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

379370R91

NO LONGER SERVICED

MUFFLER, EXHAUST

1шт.

2

31790DA

CLAMP

exhaust muffler

1шт.

102635

NUT,3/8"-16, G5

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

3

379934R1

ELBOW, exhaust pipe

1шт.

133757R1

SCREW,Hex, 3/8" - 16 x 1 1/4"

3/8 X 1-1/4 CAP SCREW

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

228462R1

GASKET

exhaust pipe elbow

1шт.
