(387[1]) - D-301 ENGINE 3-13/16 X 4.390, VERTICAL EXHAUST SYSTEM, COMBINE SERIAL NO. 2431 AND ABOVE

Запчасти Case IH 503 (387[1]) - D-301 ENGINE 3-13/16 X 4.390, VERTICAL EXHAUST SYSTEM, COMBINE SERIAL NO. 2431 AND ABOVE (10) - ENGINE

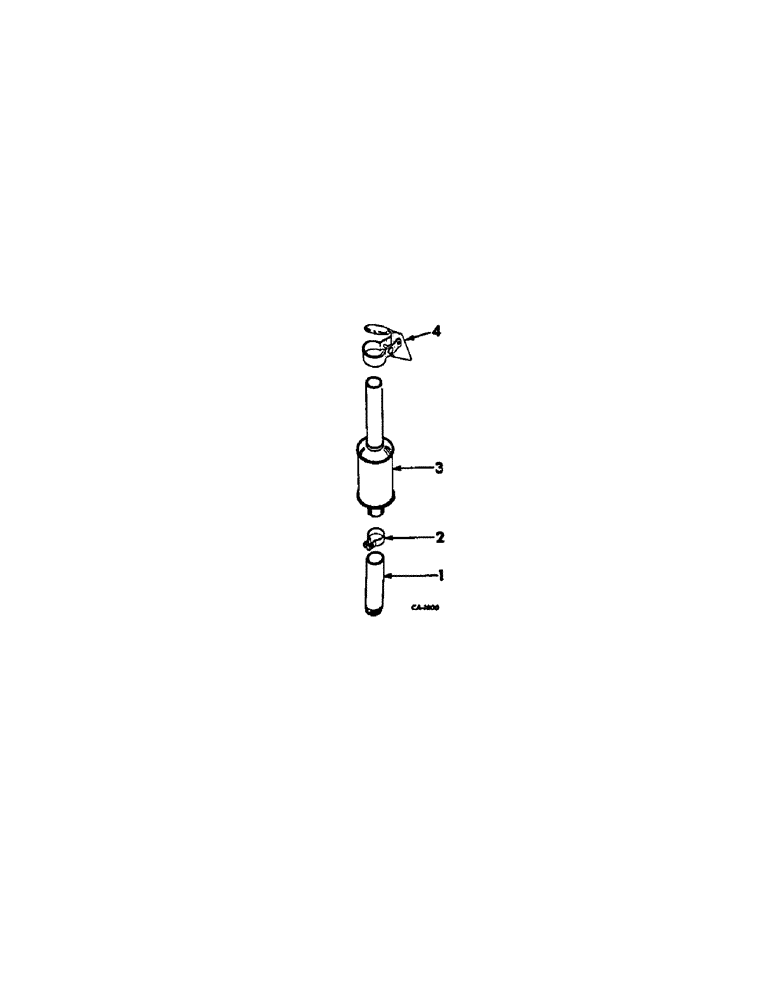

Схема запчастей Case IH 503 - (387[1]) - D-301 ENGINE 3-13/16 X 4.390, VERTICAL EXHAUST SYSTEM, COMBINE SERIAL NO. 2431 AND ABOVE (10) - ENGINE
4
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

664386R1

PIPE

exhaust

1шт.

2

350602R1

CLAMP

exhaust muffler

1шт.

102635

NUT,3/8"-16, G5

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8 X 1-3/8 CAP SCREW

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

384346R92

MUFFLER

exhaust

1шт.

4

321574R91

PLUG

CAP ASSY, exhaust

1шт.
