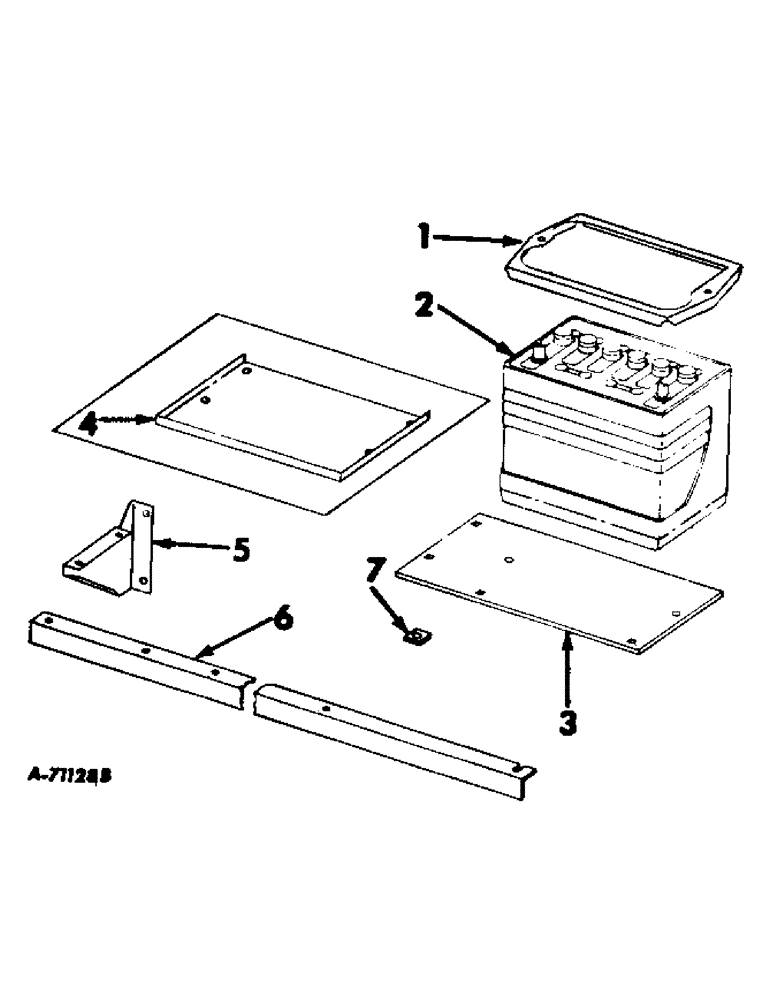

Запчасти Case IH 503 (377) - C-282 ENGINE 3-11/16 X 4.390, BATTERY AND COVER (10) - ENGINE

1

72924R1

CLAMP

battery hold-down

1шт.

18012R1

SCREW,Hex, 5/16" - 18 x 9 1/2"

5/16 X 9-1/2 MACH BLT

2шт.

935736R1

NUT, WING

5/16 X WING NUT

2шт.

Q397

WASHER

11/32 x 3/4 x 16 GA WASHER

2шт.

2

395587R1

BATTERY, Prestolite 24H-A8Z

1шт.

3

939523R1

SUPPORT, battery, Combine serial no. 2431 & above

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

3/8 X 1 CRG BOLT

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

NOT USED IN THIS APPLICATION

1шт.

5

NOT USED IN THIS APPLICATION

1шт.

6

NOT USED IN THIS APPLICATION

1шт.

7

NOT USED IN THIS APPLICATION

1шт.
