Запчасти Case IH 503 (375) - C-282 ENGINE 3-11/16 X 4.390, CRANK MOTOR, DELCO REMY (10) - ENGINE

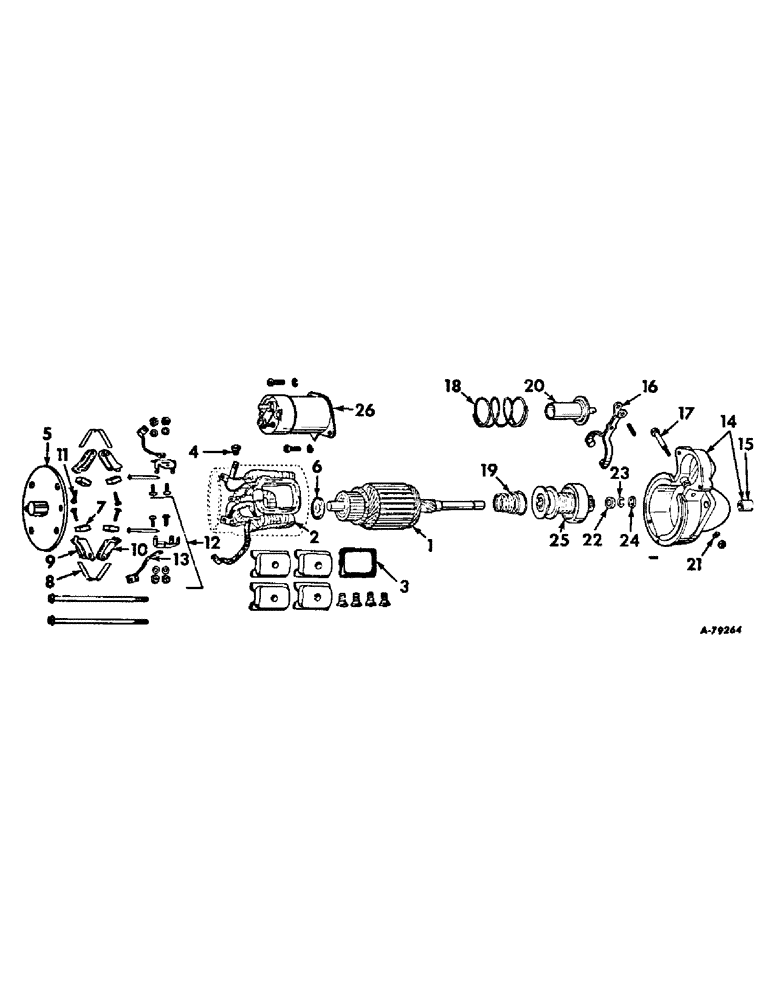

Схема запчастей Case IH 503 - (375) - C-282 ENGINE 3-11/16 X 4.390, CRANK MOTOR, DELCO REMY (10) - ENGINE
12
23
16
13
25
3
7
19
4
14
9
21
15
26
11
1
5
22
24
6
8
17
10
18
20
2

Артикул

Название

Примечание

Количество

1107679

MOTOR ASSY, cranking, 165477R91, 12 volt

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120622

NUT,#8-32

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

1

1932185

ARMATURE ASSY

1шт.

2

1935128

COIL

ASSY, field, 3 coils

1шт.

2

1935131

COIL

field, Shunt

1шт.

3

1927853

FOAM INSULATION

INSULATION, field coils

1шт.

4

1935168

GROMMET

In field frame

1шт.

5

1928966

FRAME

commutator end

1шт.

6

818265

WASHER

commutator end spacing

1шт.

7

1926617

BRUSH HOLDER

BRUSH

4шт.

8

1926622

VALVE SPRING

SPRING, brush

2шт.

9

1926617

BRUSH HOLDER

PACKAGE, ground brush holder

2шт.

10

1926618

HOLDER

PACKAGE, insulated brush holder

2шт.

11

1926618

HOLDER

SCREW, brush attaching

4шт.

12

1928015

BRACKET

KIT, brush holder support

2шт.

13

1926605

ELECTRICAL WIRE

LEAD, brush ground

2шт.

14

1955325

HOUSING ASSY, drive end

1шт.

15

1923907

BUSHING

drive end housing

1шт.

16

1932205

LEVER

shift

1шт.

17

1814529

STUD, shift lever

1шт.

18

1958679

SPRING

SPARING, plunger return

1шт.

19

1932209

SEAL

SPRING, shift lever assisting

1шт.

20

1953041

PLUNGER

solenoid switch

1шт.

21

1953479

WASHER, shift lever stud sealing lock

1шт.

22

1927849

COLLAR

drive end pinion stop

1шт.

23

1927848

RING

drive end pinion stop ret snap

1шт.

24

1927850

COLLAR ASSY.

COLLAR, drive end spacing

1шт.

25

1937975

DRIVE

ASSY, motor

1шт.

26

1114356

SOLENOID,Starter

SWITCH ASSY, solenoid, Replaces 1114287, Optional w/67478C1

1шт.

120622

NUT,#8-32

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

110730

LOCK WASHER

WASHER, 3/8 light lock

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

26

67478C1

LINK

SWITCH ASSY, solenoid, Optional w/114356

1шт.

1952427

GASKET

between switch and housing

1шт.

Выбрано товаров: 43
