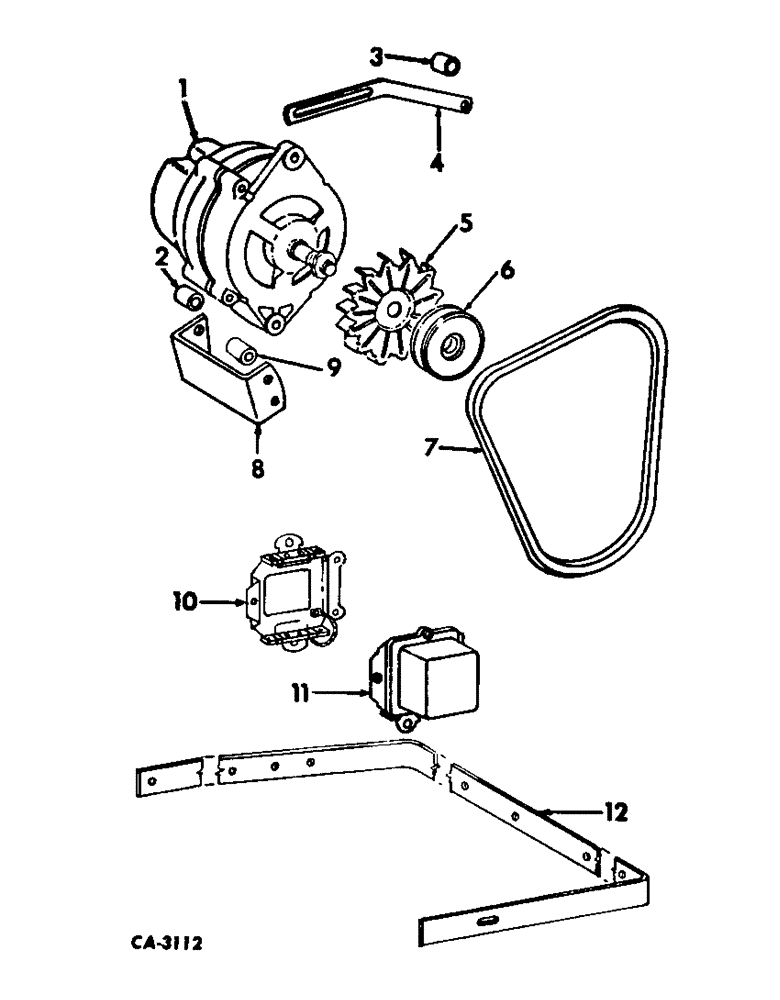

Запчасти Case IH 503 (373) - C-282 ENGINE 3-11/16 X 4.390, ALTERNATOR GENERATOR, VOLTAGE REGULATOR AND CONNECTIONS, NOTE (10) - ENGINE

1

1100750

SPARE PART ALTERNATOR GENERATOR ASSY, 393820R91, Order 1100791, alternator generator assy, 397091R91, For components see list of parts under details of alternator generator

1шт.

1

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

1

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103806A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 60 ampere

1шт.

1

103806A1C

CORE-ALTERNATOR

Return Number

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32, Serial Range: -503

1шт.

225-14112

NUT,#12-24

NUT, 1-2-24 C-Z hex. mach screw

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

121744

ANGLE

Washer, Lock, #12

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

557264

WASHER, 11/32 x 3/4 x 11 ga

1шт.

1

1100791

GENERATOR

ALTERNATOR GENERATOR ASSY, 397091R91, For components see list of parts under details of alternator generator

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

225-14112

NUT,#12-24

NUT, 12-24 C-Z hex. mach screw

1шт.

120317

SCREW

NUT, 3/8-16 C-Z hex.

1шт.

433115

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

SCREW, 3/8-16 x 4-1/4 C-Z hex-hd cap

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

384993R1

SPACER

SPACER, alternator generator mounting bracket, long

1шт.

3

SPACER, alternator generator brace, LP gas, gasoline, Serial no. & above, Serial Range: Refer-Eng

2шт.

4

BRACE, generator, LP gas, gasoline, Serial no. & above, Serial Range: Refer-Eng

2шт.

4

BRACE, alternator generator, gasoline, Serial no. & below

1шт.

*

SCREW, 3/8-16 x 2-3/4 hex-hd cap, Used w/brace

1шт.

*

WASHER, 3/8 med lock, gasoline, Used w/brace

1шт.

*

SCREW, 3/8-16 x 3-1/2 hex-hd cap, Used w/brace

1шт.

*

WASHER, flat, Serial Range: Refer-Eng

2шт.

5

1940994

FAN

FAN, alternator generator

1шт.

6

1961291

PULLEY

PULLEY, alternator generator

1шт.

7

BELT, alternator & water pump, Serial Range: Refer-Eng

2шт.

8

BRACKET, alternator generator mounting

1шт.

*

NUT, 3/8-16 hex.

1шт.

*

SCREW, 5/16-18 x 1-1/4 hex-hd cap

1шт.

*

SCREW, 3/8-16 x 4-1/4 hex-hd cap

1шт.

*

WASHER, 5/16 med lock

1шт.

*

WASHER, 3/8 med lock, Refer to Eng

2шт.

9

SPACER, alternator generator mounting bracket, long, Serial Range: Refer-Eng

2шт.

10

65304C1

PACKAGE

BRACKET ASSY, shock mount, Optional w/1962629

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT, whiz lock

2шт.

21496R1

WASHER

WASHER, 11/32 x 3/4 x 11 ga C-Z

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

SCREW, 5/16-18 x 1-1/8 C-Z hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

65303C1

REGULATOR

REGULATOR ASSY, voltage, Replaces 336410R91, Optional w/1119507

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

11

1119507

GOVERNOR

REGULATOR ASSY, voltage, Optional w/65303C1

1шт.

12

378047R11

SPARE PART BRACE ASSY, radiator, Replaces 393841R1

1шт.

110579R91

NUT

5/16NF SPEED GRIP NUT

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

181339

BOLT,Hex, 5/16" - 24 x 1", Gr 5

BOLT, Hex, 5/16"-24 x 1", G5, Full Thd

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.
