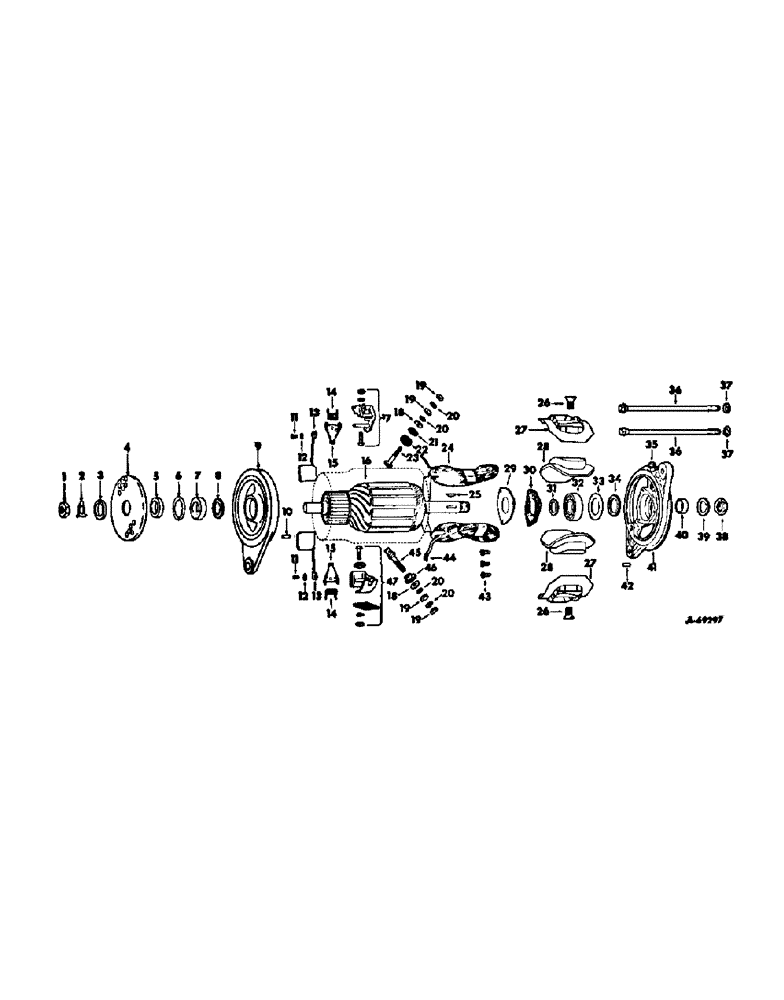

Запчасти Case IH 503 (372) - GENERATOR, DELCO-REMY, COMBINE SERIAL NO. 3250 AND BELOW (10) - ENGINE

1100425

GENERATOR

ASSY, 379391R91 12 volt

1шт.

1

1911324

NUT

commutator end shaft

1шт.

2

1913743

WASHER, commutator end shaft nut lock

1шт.

3

1913688

SPACER, commutaotr end shield

1шт.

4

1958832

SHIELD, commutator end

1шт.

5

1913689

COLLAR, commutator end shield

1шт.

6

1929959

RING, SNAP

CLAMP, commutaotr end bearing

1шт.

7

900529

PLATE

BEARING, commutator end

1шт.

8

809945

BUSHING

WASHER, commutator end spacing

1шт.

9

1959149

FRAME W/CLAMP AND PIN, commutator end

1шт.

10

809062

PIN, commutator end dowel

1шт.

11

131880

SCREW, brush lead attaching

2шт.

12

492-11006

LOCK WASHER,#6

Lock, #6

2шт.

13

1932506

BRUSH, COMMUTATOR

BRUSH ASSY

2шт.

14

1916324

VALVE SPRING

SPRING, brush

2шт.

15

1878183

ARM

brush

2шт.

16

1959147

ARMATURE ASSY

1шт.

17

1922288

HOLDER

ground brush

1шт.

18

1881409

WASHER

terminal stop

2шт.

19

121743

CHAIN,#12 - 24

terminal stud

4шт.

20

1904661

LOCK WASHER

WASHER, terminal stud lock

4шт.

21

1858753

WASHER

terminl stud insulating

1шт.

22

1885090

BUSHING

field terminal insulating

1шт.

23

1921860

STUD

field terminal

1шт.

24

1927700

COIL

ASSY, field

1шт.

25

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

26

1843646

SCREW

pole shoe

2шт.

27

1914491

INSULATOR, field coil

2шт.

28

1914618

SHOE, pole

2шт.

29

1911263

LARGE PLATE

PLATE, drive end breaing retainer

1шт.

30

1912008

FELT

GASKET, drive end bearing retainer plate

1шт.

31

809945

BUSHING

WASHER, drive end space

1шт.

32

907503

BEARING

drive end

1шт.

33

819104

WASHER

PLATE, drive end felt retaining

1шт.

34

809961

FELT

WASHER, drive end felt

1шт.

35

1880641

OILER

ASSY, drive end

1шт.

823551

OIL WICK

1шт.

36

815018

BOLT, thru

2шт.

37

120638

LOCK WASHER

WASHER, thru bolt lock

1шт.

38

1911324

NUT

drive end shaft

1шт.

40

1858603

BUSHING

COLLAR, drive end space

1шт.

41

1871693

FRAME W/OILER AND WICK ASSY, drive end

1шт.

42

809593

PIN

drive end dowel

1шт.

43

1904370

AXLE

drive end retaining plate

3шт.

44

200382

CLIP, Serial Range: terminal-brush

1шт.

45

1921369

STUD

armature terminal

1шт.

46

1921362

BUSHING

armature terminal insulating

1шт.

47

1922289

HOLDER

insulated brush

1шт.
