Запчасти Case IH 503 (371) - C-282 ENGINE 3-11/16 X 4.390, GENERATOR AND CONNECTIONS, COMBINE SERIAL NO. 3250 AND BELOW (10) - ENGINE

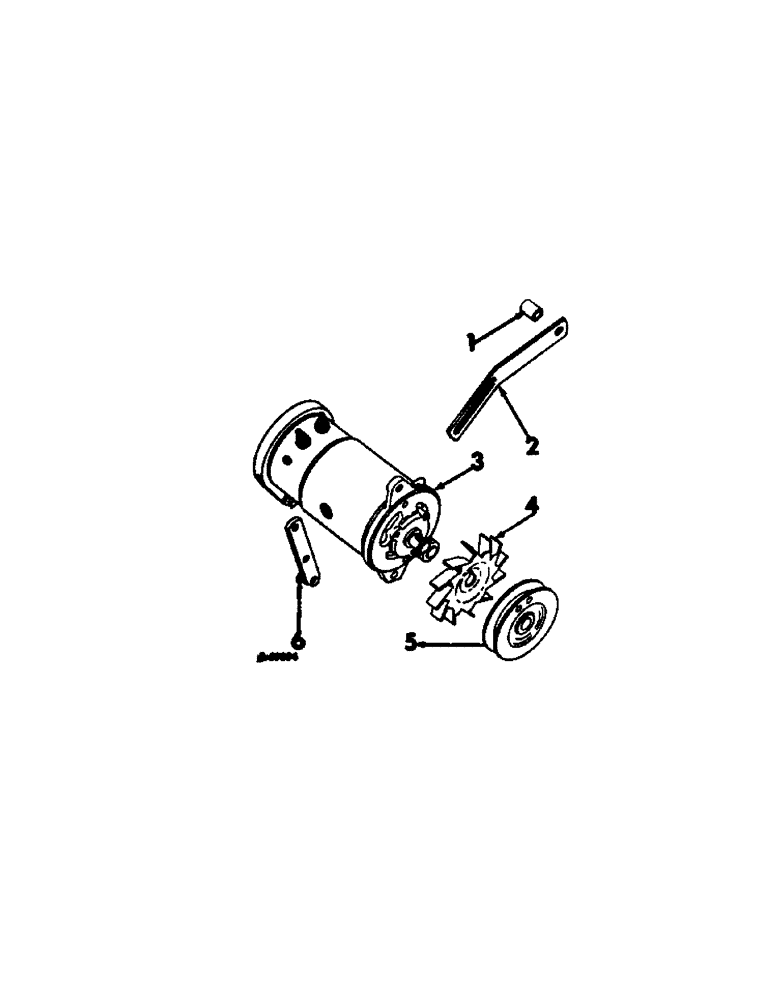

Схема запчастей Case IH 503 - (371) - C-282 ENGINE 3-11/16 X 4.390, GENERATOR AND CONNECTIONS, COMBINE SERIAL NO. 3250 AND BELOW (10) - ENGINE
2
4
1
5
3
6

Артикул

Название

Примечание

Количество

1

SPACER, generator brace, LP gas, Serial Range: Refer-Eng-2

2шт.

2

BRACE, generator, gasoline

1шт.

3/8 x 2-3/4 CAP SCREW, gasoline

1шт.

3/8 LOCK WASHER, gasoline, Refere, Serial Range: -Eng-2

1шт.

2

BRACE, generator, LP gas

1шт.

3/8 X 3-1/2 CPA SCREW, LP gas, Serial Range: Refer-Eng-2

1шт.

3

1100425

GENERATOR

GENERATOR ASSY, For components see list of parts under details of generator 379391R91

1шт.

3

103815A1R

REMAN-GENERATOR

Generator; For N.A. only

1шт.

3

103815A1C

CORE-GENERATOR

Return number - For N.A. only

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 NUT

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

557264R1

WASHER

GENERATOR BRACE WASHER

2шт.

4

90426H

SPARE PART FAN, generator

1шт.

5

304446R1

SPARE PART PULLEY, generator, Optional with 378249R1

1шт.

5

378349R1

PULLEY

PULLEY, generator, Optional with 304446R1

1шт.

6

BRACKET, generator

1шт.

5/16 x 1 CAP SCREW

2шт.

5/16 LOCK WASHER, Serial Range: Refer-Eng-2

2шт.

Выбрано товаров: 21
