Запчасти Case IH 503 (367) - C-282 ENGINE 3-11/16 X 4.390, AIR CHUTE, RADIATOR AND CONNECTIONS (10) - ENGINE

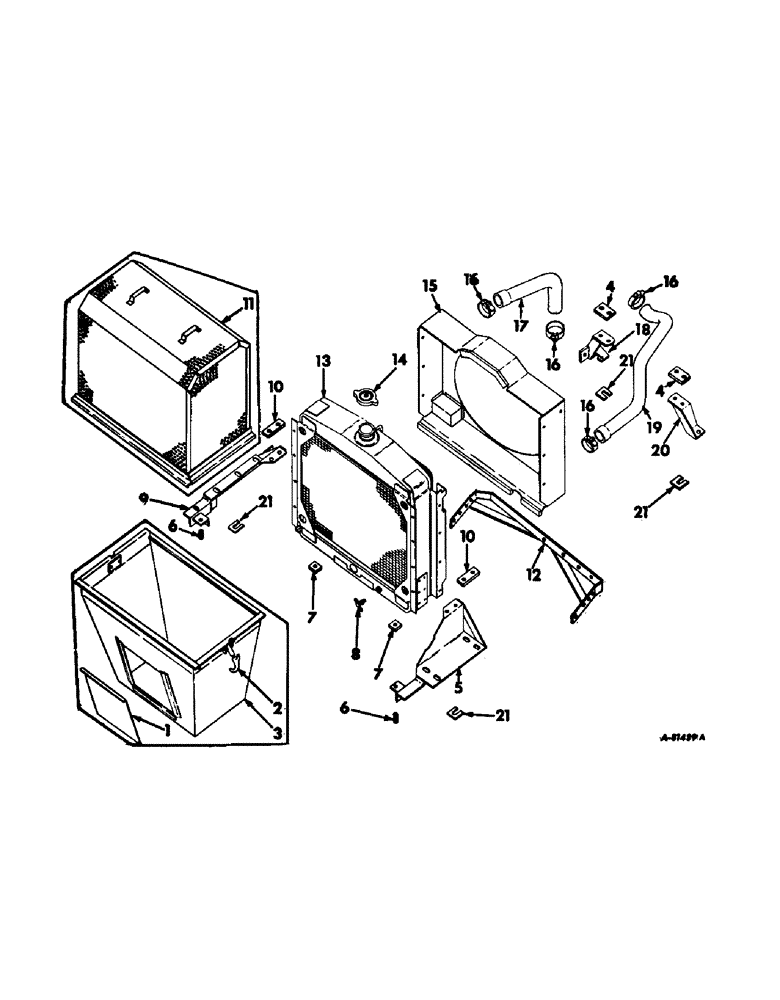

Схема запчастей Case IH 503 - (367) - C-282 ENGINE 3-11/16 X 4.390, AIR CHUTE, RADIATOR AND CONNECTIONS (10) - ENGINE
21
11
6
16
1
21
21
18
17
2
16
7
13
5
10
20
4
4
21
14
16
7
8
10
6
9
12
3
15
19
16

Артикул

Название

Примечание

Количество

1

274703R1

DOOR, radiator air, Up to combine serial no. 3250

1шт.

2

353443R91

LATCH ASSY.

LATCH ASSY, air screener, Up to combine serial no. 3250

2шт.

113356

RIVET,Tr Hd, 3/16" x 3/8"

3/16 x 3/8 oval-hd tubular

4шт.

3

387963R91

CHUTE ASSY, radiator air, Up to combine serial no. 3250

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

4

936521R1

PAD

engine base rear

2шт.

5

387987R1

BRACKET ASSY, front support LH, will work for 387986R11

1шт.

548434R1

BOLT, engine mount lock

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 C-Z hex-hd cap, type 4

1шт.

6

67205D

SPRING

radiator mounting bolt

2шт.

7

312458R1

PAD, radiator mounting

4шт.

8

31729D

VALVE

radiator drain

1шт.

9

387988R1

BRACKET ASSY, front support RH

1шт.

548434R1

BOLT, engine mount lock

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 C-Z hex-hd cap, type 4

1шт.

10

385874R1

PAD

front cover engine

2шт.

11

387969R91

SCREEN ASSY, radiator air, Up to combine serial no. 3250

1шт.

12

389767R91

BRACE ASSY, radiator

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16-18 x 7/8 C-Z hex-hd cap

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd cap

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .065 C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

397476R1

RADIATOR ASSY, will work for 383935R92

1шт.

18697R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 2

BOLT, 7/16 x 1-3/4 C-Z sq-nk crg

2шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

2шт.

217-435

PLUG,Hex Soc, 3/8" - 18 NPTF

3/8-18 C-Z automotive hex-hd pipe

1шт.

14

361705R91

COVER

CAP, radiator pressure, Serial no. 5290 & below

1шт.

14

73047R91

CAP

radiator pressure, Serial no. 5291 & above, Replaces 393229R91, Optional w/80889R91 or 118029R91

1шт.

14

80889R91

COVER

CAP, radiator pressure, Serial no. 5291 & above, Replaces 393229R91, Optional w/73047R91 or 118029R91

1шт.

14

118029R91

RADIATOR CAP

CAP, radiator pressure, Serial no. 5291 & above, Replaces 393229R91, Optional w/73047R91 or 80889R91

1шт.

15

387943R91

SHROUD ASSY, fan

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

16

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, radiator hose

4шт.

17

387940R1

RADIATOR HOSE,2.00" ID, 2.12" ID x 10.19", SAE 20R4, CLASS SC

Inlet elbow 2.00" ID, 2.12" ID x 10.19", SAE 20R4, CLASS SC

1шт.

18

150178C91

SUPPORT ASSY, engine right rear

1шт.

301055R1

BOLT, engine adjusting

2шт.

231-1408

LOCK NUT,1/2"-13, GB

NUT, 1/2 ESNA stop

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

4шт.

114507

JAM NUT,Jam, 5/8"-11, G5

4шт.

236484R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

19

387941R1

RADIATOR HOSE,2.00" ID, 2.12" ID x 15.31", SAE 20R4, CLASS R, GRADE 1A

Outlet elbow 2.00" ID, 2.12" ID x 15.31", SAE 20R4, CLASS R, GRADE 1A

1шт.

20

150849C91

SUPPORT ASSY, engine left rear

1шт.

231-1408

LOCK NUT,1/2"-13, GB

NUT, 1/2 ESNA stop

1шт.

236484R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

21

570012R1

SHIM, engine support

7шт.

Выбрано товаров: 49
