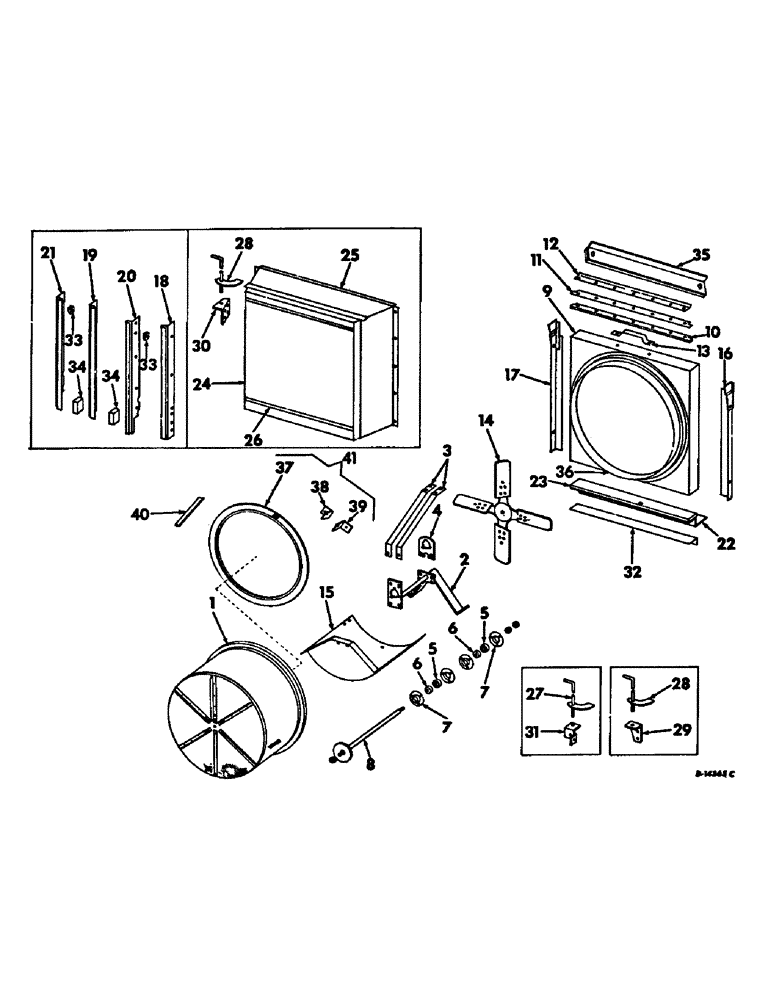

Запчасти Case IH 503 (365) - C-282 ENGINE 3-11/16 X 4.390, RADIATOR ROTARY AIR SCREEN, COMBINE SERIAL NO. 3251 AND ABOVE (10) - ENGINE

1

152800C91

SIEVE

SCREEN ASSY, radiator rotating fan, Serial no. 4765 and below

1шт.

1

159702C91

SCREEN

ASSY, radiator rotating fan, Serial no. 4766 and above

1шт.

928016R1

NUT, 1/4 C-Z whiz lock

12шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd whiz lock

12шт.

2

152806C91

SUPPORT ASSY, radiator screen brg

1шт.

106882

RIVET, 3/16 x 1/4 wagon box

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 C-Z hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

3

154885C1

BRACE

radiator screen brg support

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

4

153570C1

BRACKET

radiator screen brg support

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 C-Z hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

5

468390R91

BEARING, BALL,0.6255" ID x 40 mm OD x 0.75"

BEARING ASSY, ball

2шт.

6

468391R11

COLLAR

W/SET SCREW, locking

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/2 hex-soc-hd cup-pt set

2шт.

7

661147R1

FLANGED BEARING

rotating sieve brg

4шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

8

155520C91

ROD

ASSY, radiator rotating sieve, Serial no. 4765 and below

1шт.

8

159703C91

ROD

ASSY, radiator rotating fan, Serial no. 4766 and above

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

3шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 C-Z internal tooth lock

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

158716R1

WASHER, 21/32 x 2 x 5/16

1шт.

9

153664C91

SHROUD ASSY, radiator rotating screen

1шт.

155499C1

RIVET

3/16 x 1/4 pop, Serial no. 6287 and below

2шт.

9

161419C91

SHROUD ASSY, radiator rotating screen, Serial no. 6288 and above

1шт.

10

154028C1

SEAL, sponge rubber

1шт.

11

154029C1

STRAP, seal

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4-20 x 3/4 C-Z hex-hd

7шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

7шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

12

NOT USED IN THIS APPLICATION

1шт.

13

614920R1

HANDLE, shroud

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4-20 x 1/2 C-Z sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

161207C91

FAN

ASSY, 4 blades

2шт.

15

152909C91

DEFLECTOR ASSY, radiator screen

1шт.

16

153798C91

ANGLE ASSY, screen slide support left

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 C-Z hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

153799C91

ANGLE ASSY, screen slide support right

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-38 x 3/4 C-Z hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18

153656C1

SLIDE, radiator screen left

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 C-Z hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

19

153657C1

SLIDE, radiator screen right

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 C-Z hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20

NOT USED IN THIS APPLICATION

1шт.

21

NOT USED IN THIS APPLICATION

1шт.

22

153658C11

REINFORCEMENT ASSY, radiator screen support

1шт.

23

154277C1

SEAL, sponge rubber

2шт.

24

NOT USED IN THIS APPLICATION

1шт.

25

383947R1

SEAL, rotary screen mounting

2шт.

26

318388R1

SEAL, rotary screen mounting

2шт.

27

NOT USED IN THIS APPLICATION

1шт.

28

154139C91

LEVER

ASSY, rotating fan support

1шт.

124824

NUT,Hex, 5/16" - 18

5/16-18 C-Z hex. jam

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

1шт.

29

154136C1

ANGLE, rotating fan support

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 C-Z hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

30

NOT USED IN THIS APPLICATION

1шт.

31

NOT USED IN THIS APPLICATION

1шт.

32

NOT USED IN THIS APPLICATION

1шт.

33

NOT USED IN THIS APPLICATION

1шт.

34

NOT USED IN THIS APPLICATION

1шт.

35

161263C11

ANGLE ASSY, radiator top seal

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

36

161420C1

RING

brush seal

1шт.

161421C1

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW, no. 8 x 1/2 znp hex-hd washer face

8шт.

37

161014C1

BRUSH

rotary screen

1шт.

38

161011C1

CLIP

rotary screen brush short

1шт.

39

161012C1

CLIP, rotary screen brush long

1шт.

19910R1

LOCK NUT

no. 10 C-Z lock

1шт.

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

no. 10 x 1 C-Z pan-hd slt mach

1шт.

40

461678R1

SEAL

TAPE

5шт.

41

161010C91

BRUSH ASSY.

BRUSH ASSY, rotary screen, Includes ref nos. 37, 38 and 39

1шт.
