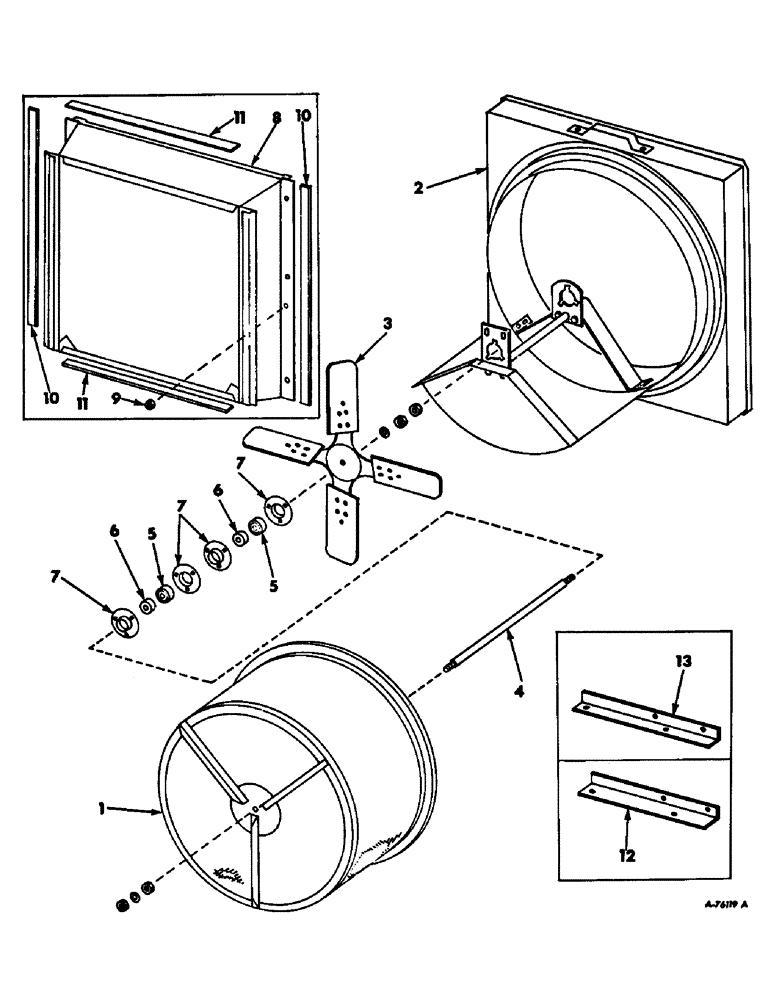

Запчасти Case IH 503 (363) - C-282 ENGINE 3-11/16 X 4.390, RADIATOR ROTARY AIR SCREEN, COMBINE SERIAL NO. 3250 & BELOW (10) - ENGINE

1

153756C91

SIEVE

SCREEN ASSY, radiator rotary air

1шт.

2

153757C91

HOUSING ASSY, screen

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

3

153758C91

BLADE ASSY, fan

1шт.

4

153759C1

SHAFT, fan

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

4шт.

575807R1

WASHER

13/32 x 1 x 11 ga

2шт.

5

468390R91

BEARING, BALL,0.6255" ID x 40 mm OD x 0.75"

BEARING, fan shaft ball

2шт.

6

468391R11

COLLAR

ASSY, fan shaft brg locking

2шт.

7

661147R1

FLANGED BEARING

fan shaft brg

4шт.

12635R1

BOLT, 1/4-20 x 3/4 C-Z sq-nk crg

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

8

153116C91

SHROUD ASSY, radiator rotary air screen, Serial no. 2430 and below

1шт.

8

153101C91

SHROUD ASSY, radiator rotary air screen, Serial no., Serial Range: 2431-3250

1шт.

9

111543R91

NUT, 3/8-24 speed grip

8шт.

10

318105R1

SEAL, shroud side

1шт.

11

NOT USED IN THIS APPLICATION

1шт.

12

153861C1

ANGLE, engine cover support, Serial no., Serial Range: 2431-3250

1шт.

13

NOT USED IN THIS APPLICATION

1шт.
