(361) - C-282 ENGINE 3-11/16 X 4.390, AIR SCREEN EXTENSION, W/ PERFORATED SIDES, COMBINE S/N 1470 AND BELOW

Запчасти Case IH 503 (361) - C-282 ENGINE 3-11/16 X 4.390, AIR SCREEN EXTENSION, W/ PERFORATED SIDES, COMBINE S/N 1470 AND BELOW (10) - ENGINE

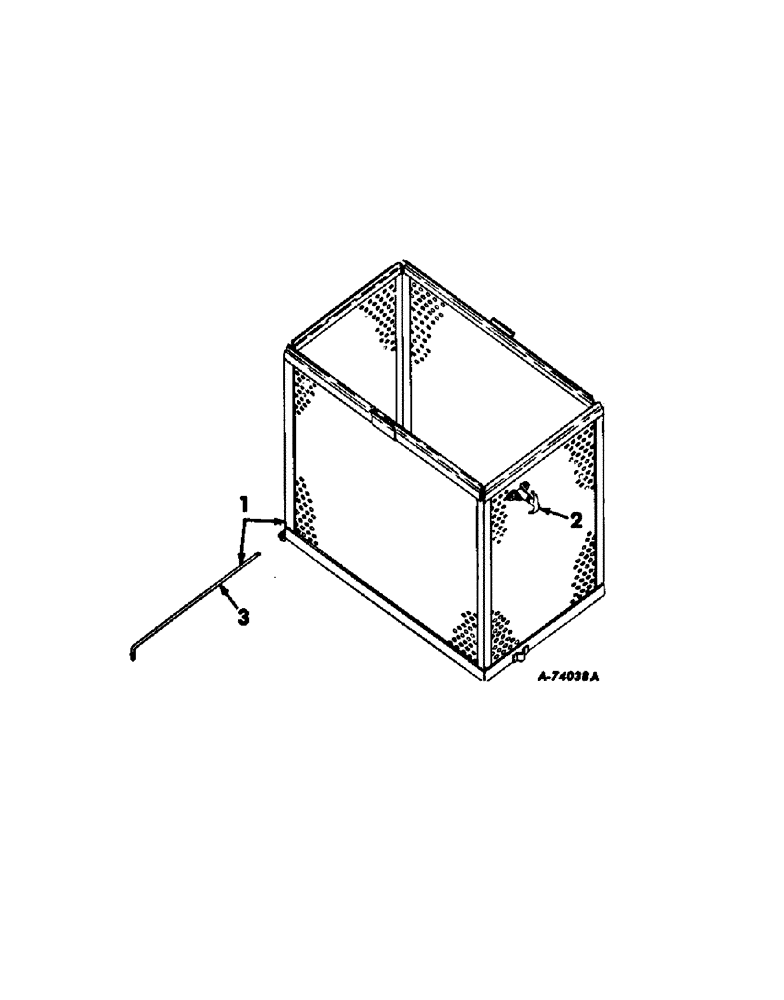

Схема запчастей Case IH 503 - (361) - C-282 ENGINE 3-11/16 X 4.390, AIR SCREEN EXTENSION, W/ PERFORATED SIDES, COMBINE S/N 1470 AND BELOW (10) - ENGINE
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

EXTENSION ASSY, air screen, with serviced only as a machine attachment

1шт.

2

353443R91

LATCH ASSY.

LATCH ASSY, air screen

1шт.

135753

3/16 X 7/16 OV-HD RIVET

1шт.

3

316458R1

PIN, air screen extension hinge

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.
