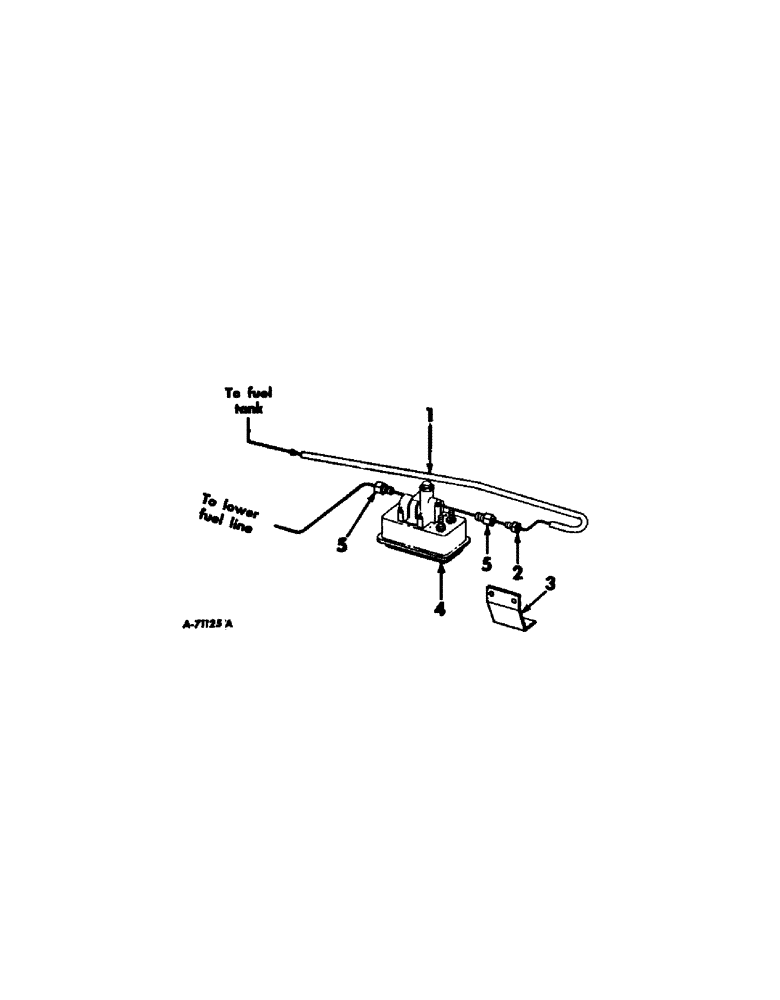

Запчасти Case IH 503 (360[1]) - C-282 ENGINE 3-11/16 X 4.390, FUEL PUMP, LINE & SUPPORT, STEWART WARNER, COMBINE S/N 950 AND BELOW (10) - ENGINE

1

LINE, fuel pump to fuel tank, 5/16 OD x 25-1/16 in. long, Order one foot increments of 995062 R1 copper tubing

1шт.

2

222-503

TUBE NUT,1/2"-20

NUT, 1/2-20 hi-duty tube fitting

1шт.

3

628939R1

BRACKET, fuel pump

1шт.

179795

TILLAGE BLADE

1/4 X 3/4 CAP SCREW

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

615009R1

WASHER

17/64 X 3/4 X 16 GA WASHER

2шт.

4

631321R92

PUMP ASSY, fuel, Order kit assy 935366R91 listed under fuel pump service kit

1шт.

5

40755D

HYD CONNECTOR,1/4" NPT x 1/2"-20

CONNECTOR, fuel pump

2шт.
