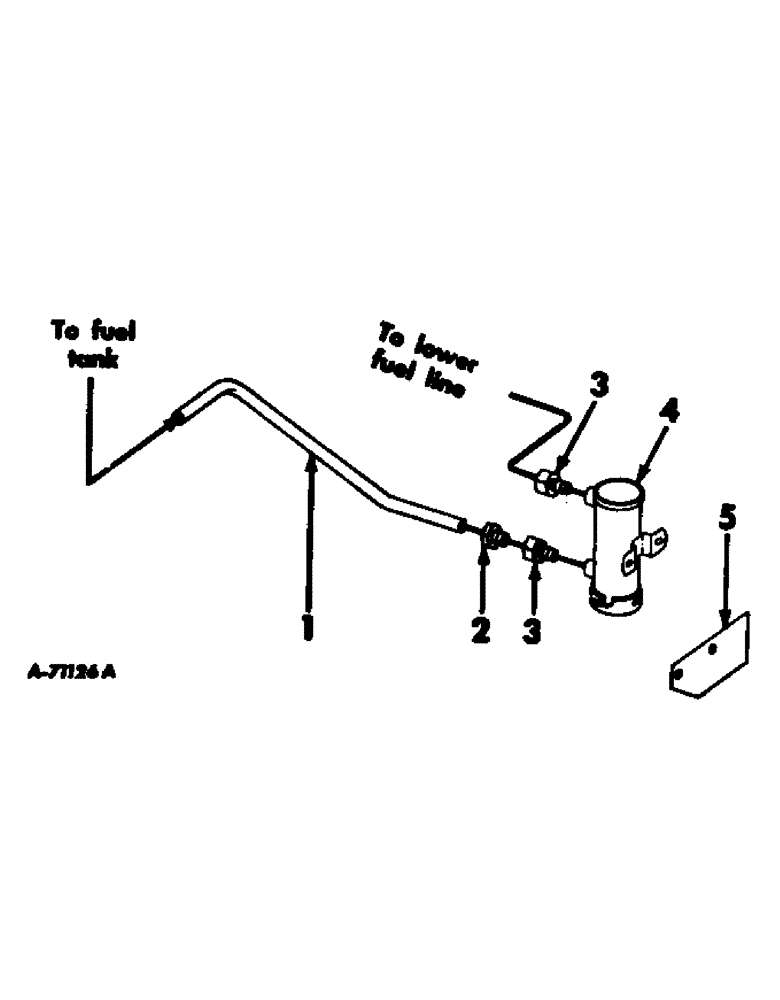

Запчасти Case IH 503 (358) - C-282 ENGINE 3-11/16 X 4.390, FUEL PUMP, LINES AND SUPPORTS, BENDIX (10) - ENGINE

1

LINE, fuel pump to fuel tank, 5/16 OD x 12-5/16 in. long, Order one foot increments of 995062R1 copper tubing

1шт.

2

29899C

NUT, 1/2-20 hi-duty tube fitting

2шт.

3

35252D

HYD CONNECTOR,1/8" NPT x 1/2"-20

CONNECTOR, fuel pump

2шт.

4

631259R91

PUMP

ASSY, fuel, For components see list of parts under details of fuel pump, Bendix

1шт.

5

629311R1

BRACKET, fuel pump

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4 x 3/4 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

615009R1

WASHER

17/64 x 3/4 x 16 ga

2шт.
