(354) - C-282 ENGINE 3-11/16 X 4.390, PRE-CLEANER, PRE-SCREENER

Запчасти Case IH 503 (354) - C-282 ENGINE 3-11/16 X 4.390, PRE-CLEANER, PRE-SCREENER (10) - ENGINE

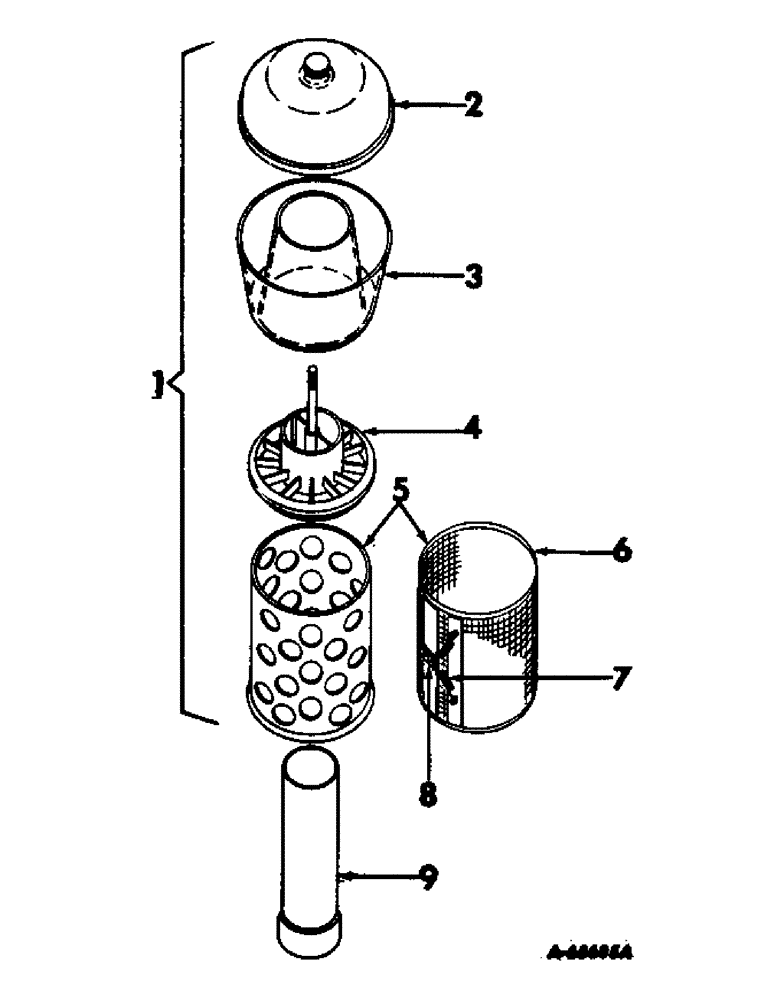

Схема запчастей Case IH 503 - (354) - C-282 ENGINE 3-11/16 X 4.390, PRE-CLEANER, PRE-SCREENER (10) - ENGINE
7
8
6
5
2
1
3
9
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

378802R91

CLEANER

PRE-CLEANER, PRE-SCREENER ASSY

1шт.

2

365412R91

COVER

ASSY, pre-cleaner

1шт.

3

365413R1

BOWL

BODY, pre-cleaner

1шт.

4

365415R91

SLEEVE

ASSY, pre-cleaner

1шт.

5

381601R91

PRE-SCREENER ASSY

1шт.

115988

NO. 10 SQ NUT

1шт.

132852

SCREW,Sl Rnd Hd, #10 - 24 x 1 1/4"

NO. 10 X 1-1/4 RD-HD MACH SCREW

1шт.

6

378724R91

SCREEN

W/CLIP, 353758R1 and two springs, 353639R1 assy, pre-screener

1шт.

7

353639R1

VALVE SPRING

SPRING, screen lock tension

2шт.

8

353758R1

CLIP

screen lock tension spring

1шт.

9

NOT USED IN THIS APPLICATION

1шт.
