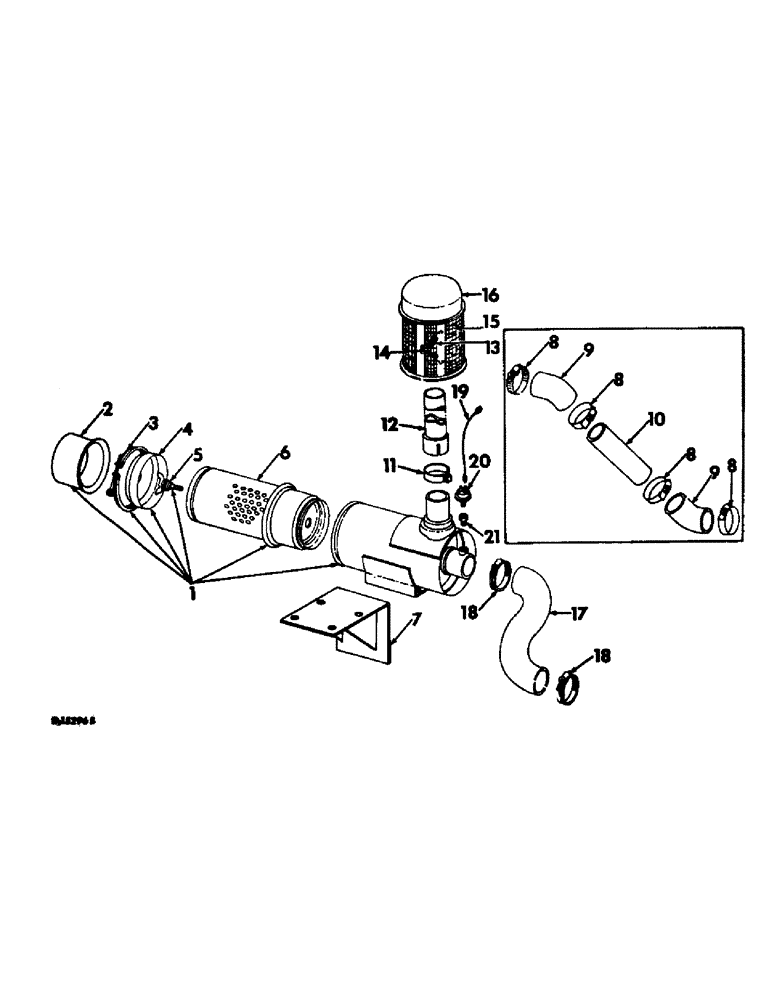

Запчасти Case IH 503 (352) - AIR CLEANER AND CONNECTIONS DRY TYPE, COMBINE SERIAL NO. 2341 AND ABOVE (10) - ENGINE

394909R91

PARTS ACCESSORY, dry type air cleaner, Combine serial no. 2430 & below

1шт.

1

397173R1

CLEANER ASSY, dry type air, Will work for 387981R92

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, 5/16 C-Z int-ext tooth lock

1шт.

2

389267R91

BOWL

CUP ASSY

1шт.

3

381339R91

CLAMP

ASSY

1шт.

4

381345R1

BAFFLE

1шт.

5

389264R91

BOLT (SPREADER),Wing, 3/8" - 16, W/ Wshr, Gasket

BOLT ASSY

1шт.

6

384812R93

AIR CLEANER

ELEMENT ASSY

1шт.

7

388440R11

BRACKET ASSY, air cleaner

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga C-Z

2шт.

8

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, air cleaner pipe elbow

4шт.

9

377776R1

HOSE

air cleaner pipe elbow, Order hose, 397793R1

2шт.

10

387984R1

PIPE, air cleaner, Order hose, 397793R1

1шт.

11

379368R91

COLLAR CLAMP

CLAMP, pre-screener pipe

1шт.

12

383355R1

PIPE, pre-screener 2.5" OD, 24" Length

1шт.

13

353639R1

VALVE SPRING

SPRING, screen lock tension

2шт.

14

353758R1

CLIP

screen lock spring

1шт.

15

355146R91

SCREEN

W/CLIP, 353758R1 and two springs 353639R1, pre-screener

1шт.

16

354983R91

CLEANER

PRE-SCREENER ASSY, Includes ref nos. 13, 14 and 15

1шт.

17

397793R1

INTAKE AIR HOSE,2.25" ID

Air Cleaner Outlet 2.25" ID

1шт.

18

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, air cleaner outlet hose

2шт.

19

405211R1

CABLE PULLING GRIP

CABLE ASSY, vacuum, Serial Range: switch-ground

1шт.

20

389682R91

SWITCH

electric air cleaner

1шт.

21

389908R91

ADAPTER

ASSY, vacuum switch

1шт.
