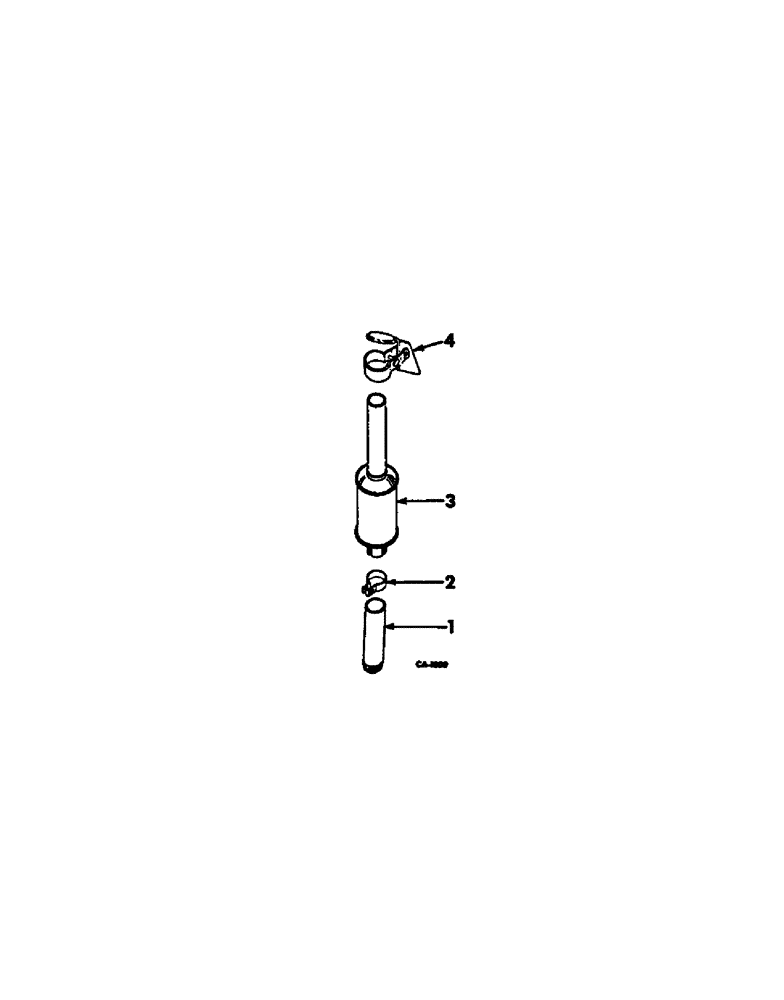

Запчасти Case IH 503 (350[1]) - EXHAUST SYSTEM (10) - ENGINE

1

668531R1

PIPE, exhaust

1шт.

2

384402R1

FASTENER

CLAMP, exhaust muffler, Combines with hydrostatic transmission

1шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

3/8-16 x 1-3/8 C-Z hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

398511R1

MUFFLER

exhaust, Combines with hydrostatic transmission

1шт.

3

398511R1GV

MUFFLER

Value, Muffler

1шт.

4

281182R91

CYLINDER END CAP

CAP ASSY, weather, Optional w/321575R91

1шт.

4

321575R91

CAP

ASSY, weather, Optional w/281182R91

1шт.
